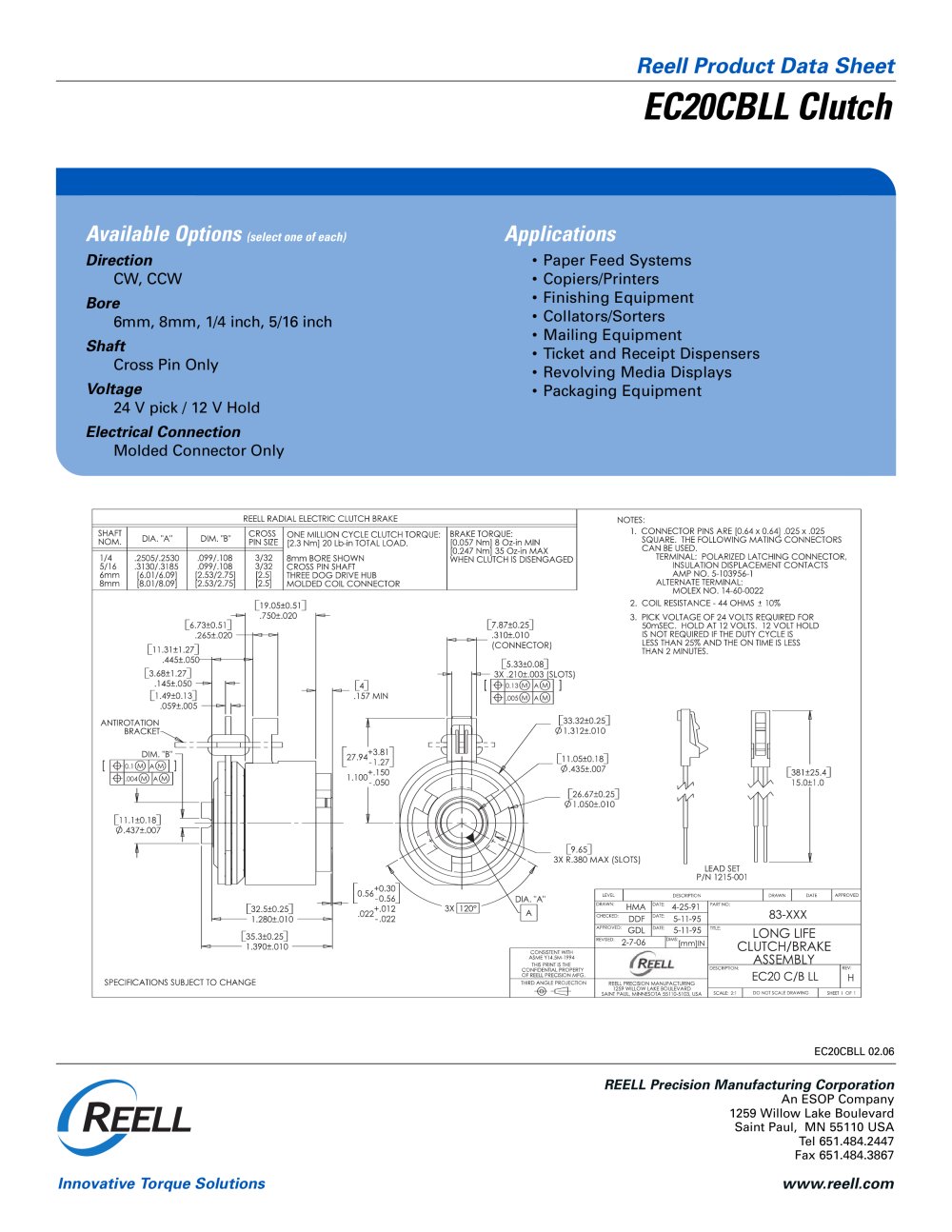

Reell Product Data Sheet

Clutch :: EC20 CBLL - 14319 EC20CBLL Clutch

Available Options

(select one of each)

Applications

Direction •Paper Feed Systems •Copiers/Printers •Finishing Equipment •Collators/Sorters •Mailing Equipment •Ticket and Receipt Dispensers •Revolving Media Displays •Packaging Equipment CW, CCW Bore 6mm, 8mm, 1/4 inch, 5/16 inch Shaft Cross Pin Only Voltage 24 V pick / 12 V Hold Electrical Connection Molded Connector Only
EC20CBLL 02.06 REELL Precision Manufacturing Corporation An ESOP Company1259 Willow Lake BoulevardSaint Paul, MN 55110 USATel 651.484.2447Fax 651.484.3867 Innovative Torque Solutionswww.reell.com
