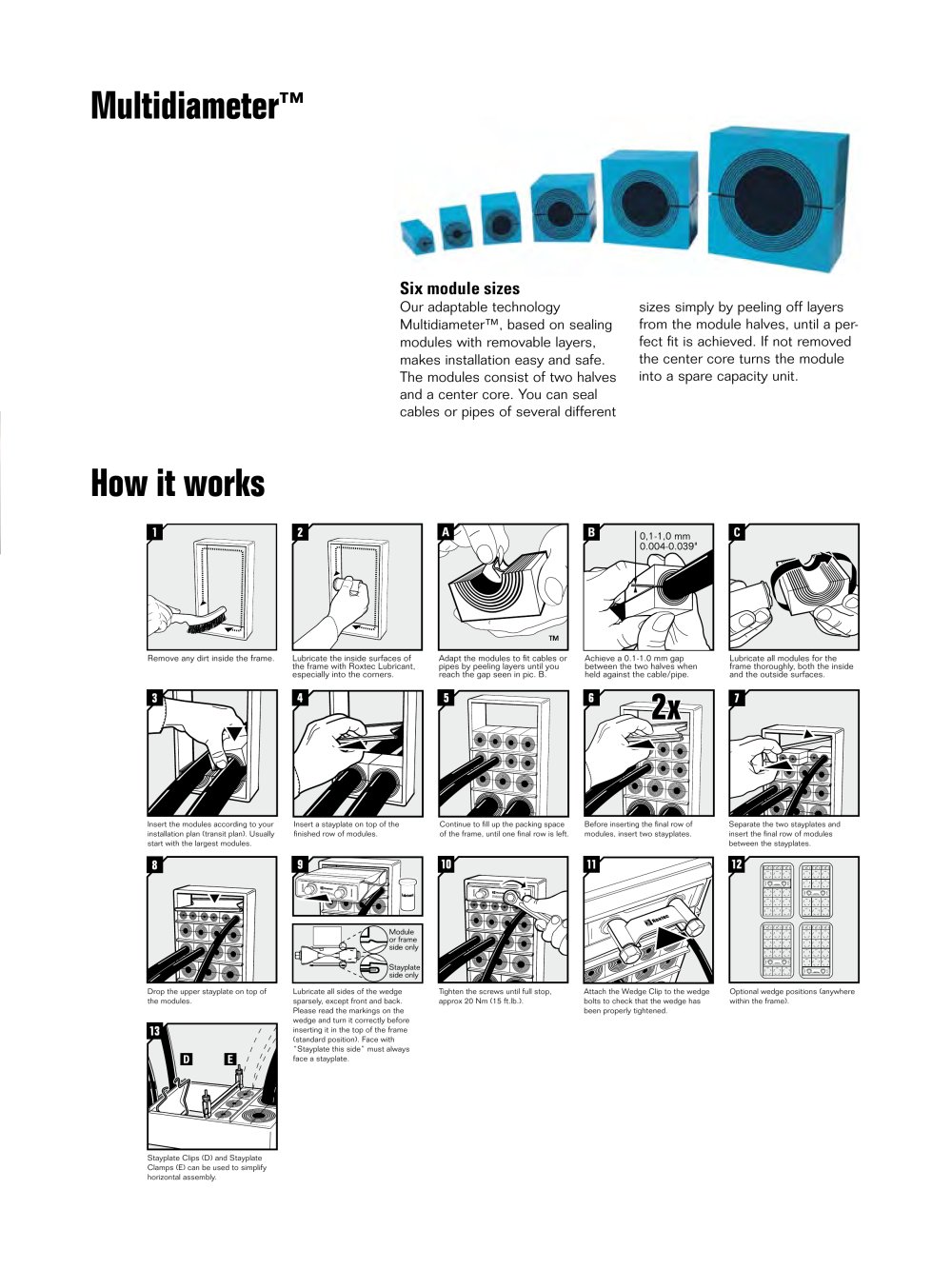

Multidiameter

™

Six module sizes

Our adaptable technology Multidiameter™, based on sealing modules with removable layers, makes installation easy and safe sizes simply by peeling off layers from the module halves, until a per- fect fit is achieved. If not removed the center core turns the module into a spare capacity unit. . The modules consist of two halves and a center core. You can seal cables or pipes of several different

How it works

Remove any dirt inside the frame.Lubricate the inside surfaces of the frame with Roxtec Lubricant, especially into the corners.Adapt the modules to fit cables or pipes by peeling layers until you reach the gap seen in pic. B.Achieve a 0.1-1.0 mm gap between the two halves when held against the cable/pipe. Lubricate all modules for the frame thoroughly, both the inside and the outside surfaces. Insert the modules according to your installation plan (transit plan). Usually start with the largest modules.Insert a stayplate on top of the finished row of modules.Continue to fill up the packing space of the frame, until one final row is left.Before inserting the final row of modules, insert two stayplates. Drop the upper stayplate on top of the modules.Lubricate all sides of the wedge sparsely, except front and back. Please read the markings on the wedge and turn it correctly before inserting it in the top of the frame (standard position). Face with “Stayplate this side” must always face a stayplate.Tighten the screws until full stop, approx 20 Nm (15 ft.lb.).Attach the Wedge Clip to the wedge bolts to check that the wedge has been properly tightened. Stayplate Clips (D) and Stayplate Clamps (E) can be used to simplify horizontal assembly. Separate the two stayplates and insert the final row of modules between the stayplates. Optional wedge positions (anywhere within the frame).
