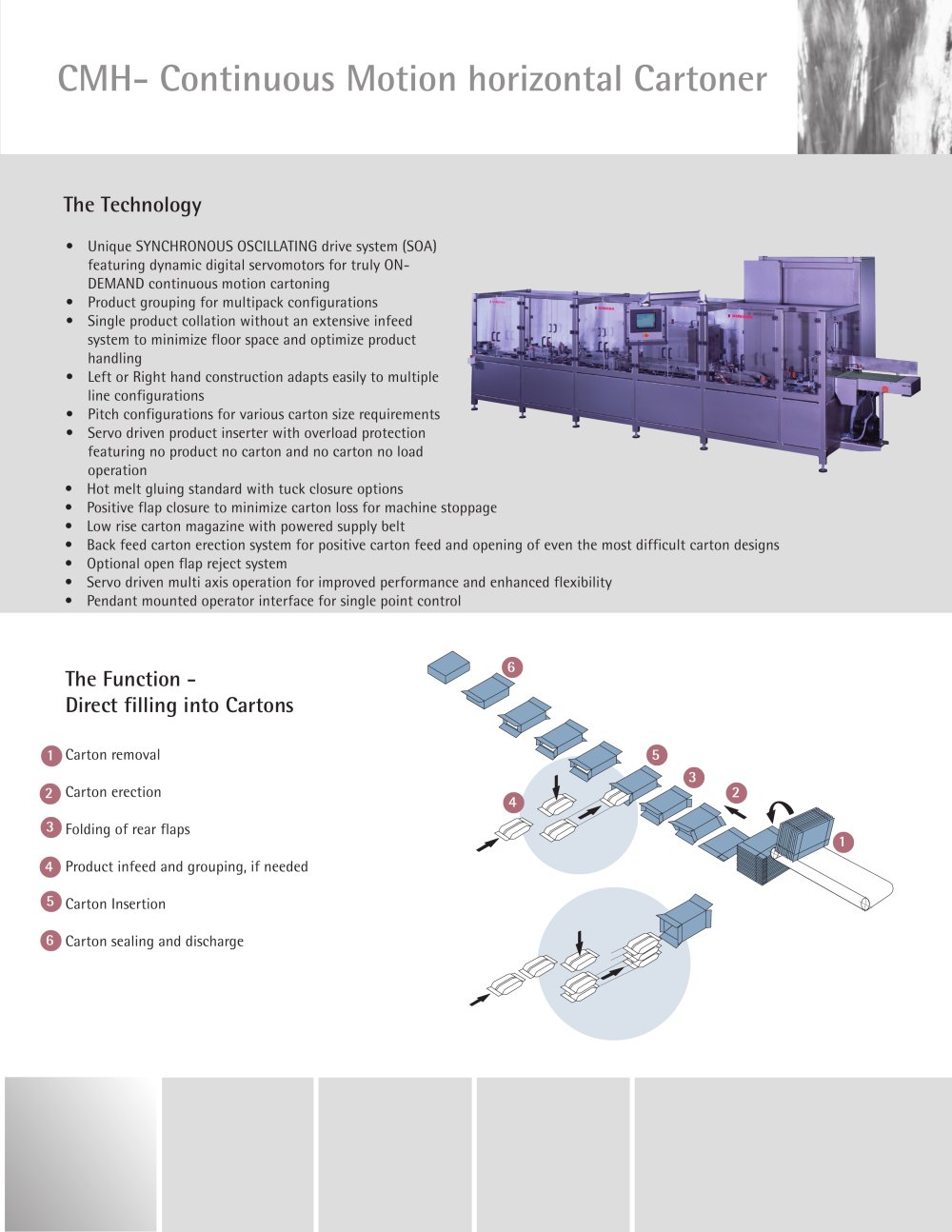

The Technology • Unique SYNCHRONOUS OSCILLATING drive system (SOA) featuring dynamic digital servomotors for truly ONDEMAND continuous motion cartoning • Product grouping for multipack configurations • Single product collation without an extensive infeed system to minimize floor space and optimize product handling • Left or Right hand construction adapts easily to multiple line configurations • Pitch configurations for various carton size requirements • Servo driven product inserter with overload protection featuring no product no carton and no carton no load operation 1 4 2 3 5 1 2 5 CMH- Continuous Motion horizontal Cartoner The Function - Direct filling into Cartons Carton removal Carton erection Folding of rear flaps Product infeed and grouping, if needed Carton Insertion Carton sealing and discharge • Hot melt gluing standard with tuck closure options • Positive flap closure to minimize carton loss for machine stoppage • Low rise carton magazine with powered supply belt • Back feed carton erection system for positive carton feed and opening of even the most difficult carton designs • Optional open flap reject system • Servo driven multi axis operation for improved performance and enhanced flexibility • Pendant mounted operator interface for single point control 6 3 4 6
