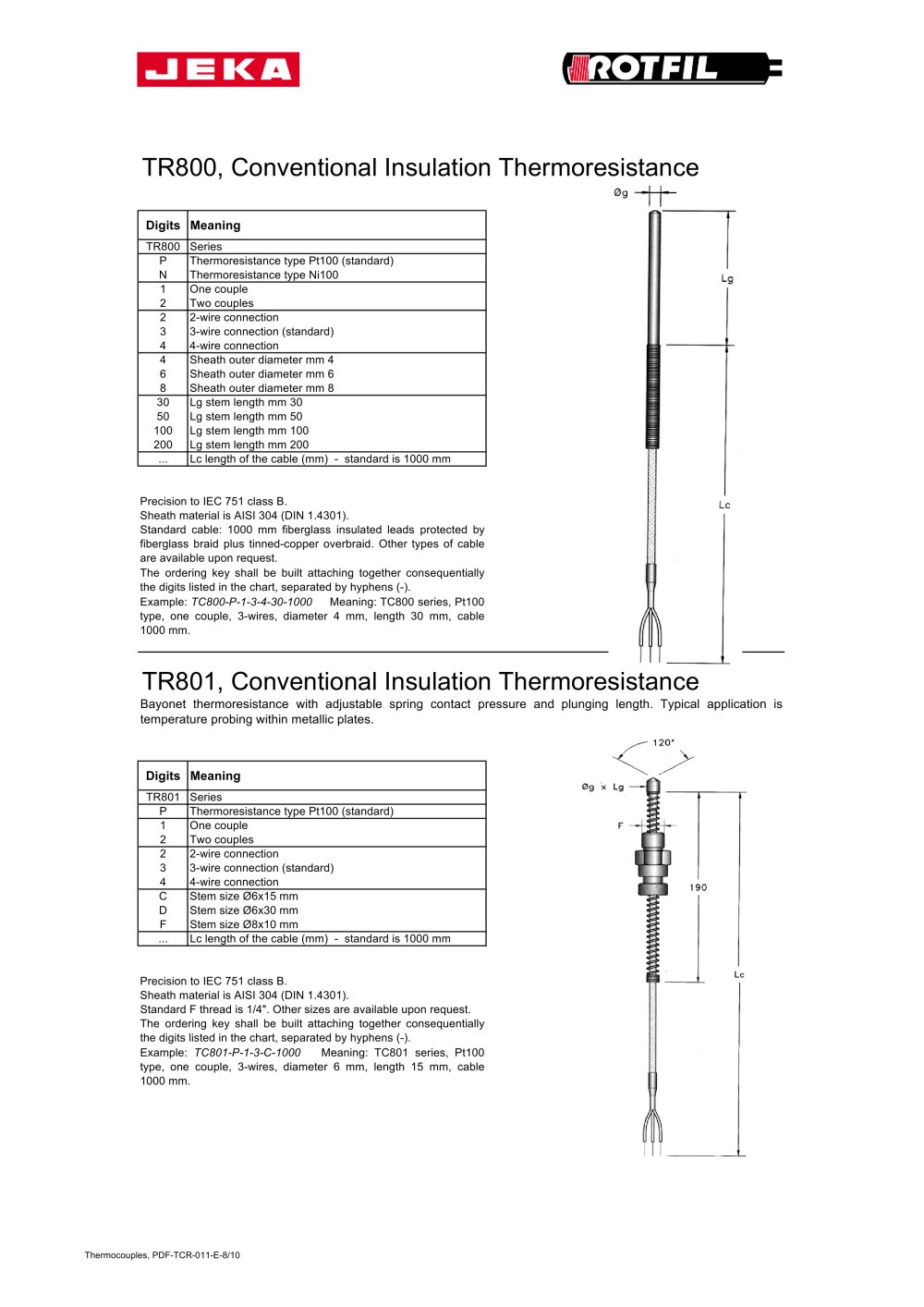

TR800, Conventional Insulation Thermoresistance
Digits Meaning
TR800 Series
P Thermoresistance type Pt100 (standard)
N Thermoresistance type Ni100
1 One couple
2 Two couples
2 2-wire connection
3 3-wire connection (standard)
4 4-wire connection
4 Sheath outer diameter mm 4
6 Sheath outer diameter mm 6
8 Sheath outer diameter mm 8
30 Lg stem length mm 30
50 Lg stem length mm 50
100 Lg stem length mm 100
200 Lg stem length mm 200
... Lc length of the
cable (mm) - standard is 1000 mm
TR801, Conventional Insulation Thermoresistance
Digits Meaning
TR801 Series
P Thermoresistance type Pt100 (standard)
1 One couple
2 Two couples
2 2-wire connection
3 3-wire connection (standard)
4 4-wire connection
C Stem size Ø6x15 mm
D Stem size Ø6x30 mm
F Stem size Ø8x10 mm
... Lc length of the
cable (mm) - standard is 1000 mm
Sheath material is AISI 304 (DIN 1.4301).
Precision to IEC 751 class B.
Sheath material is AISI 304 (DIN 1.4301).
Standard
cable: 1000 mm fiberglass insulated leads protected by
fiberglass braid plus tinned-copper overbraid. Other types of
cable
are available upon request.
The ordering key shall be built attaching together consequentially
the digits listed in the chart, separated by hyphens (-).
Example: TC800-P-1-3-4-30-1000 Meaning: TC800 series, Pt100
type, one couple, 3-wires, diameter 4 mm, length 30 mm,
cable
1000 mm.
Precision to IEC 751 class B.
Bayonet thermoresistance with adjustable spring contact pressure and plunging length. Typical application is
temperature probing within metallic plates.
Standard F thread is 1/4". Other sizes are available upon request.
The ordering key shall be built attaching together consequentially
the digits listed in the chart, separated by hyphens (-).
Example: TC801-P-1-3-C-1000 Meaning: TC801 series, Pt100
type, one couple, 3-wires, diameter 6 mm, length 15 mm,
cable
1000 mm.
Thermocouples, PDF-TCR-011-E-8/10
