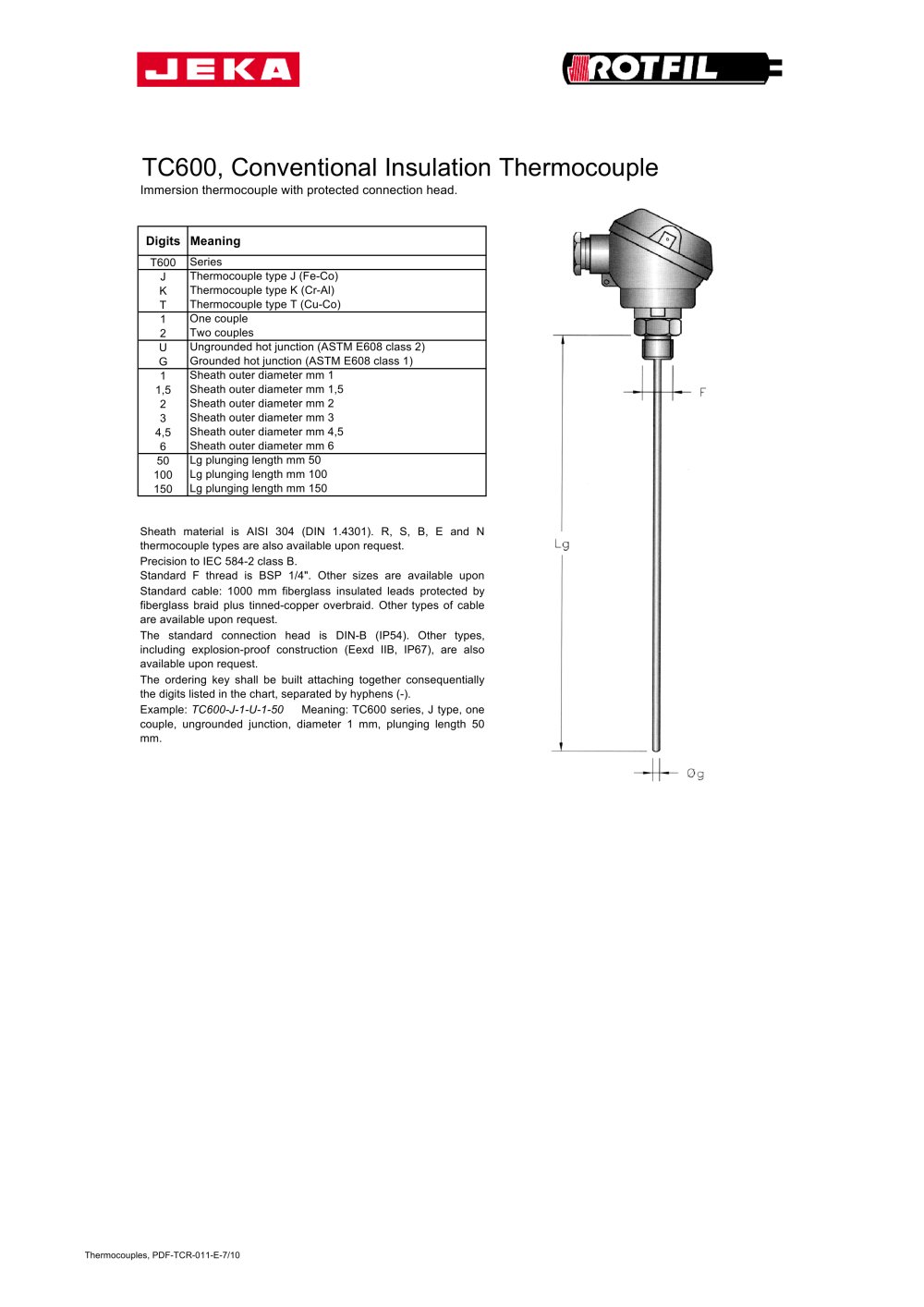

TC600, Conventional Insulation Thermocouple Digits Meaning T600 JKT12UG1 1,5 23 4,5 6 50 100 150 Lg plunging length mm 150 Sheath outer diameter mm 1 Sheath outer diameter mm 1,5 Sheath outer diameter mm 2 Sheath outer diameter mm 3 Sheath outer diameter mm 4,5 Immersion thermocouple with protected connection head. Lg plunging length mm 50 Lg plunging length mm 100 Precision to IEC 584-2 class B. Series Thermocouple type K (Cr-Al) Sheath outer diameter mm 6 Thermocouple type J (Fe-Co) Ungrounded hot junction (ASTM E608 class 2) Grounded hot junction (ASTM E608 class 1) The standard connection head is DIN-B (IP54). Other types, including explosion-proof construction (Eexd IIB, IP67), are also available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC600-J-1-U-1-50 Meaning: TC600 series, J type, one couple, ungrounded junction, diameter 1 mm, plunging length 50 mm. Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Standard F thread is BSP 1/4". Other sizes are available upon Thermocouple type T (Cu-Co) One couple Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned-copper overbraid. Other types of cable are available upon request. Two couples Thermocouples, PDF-TCR-011-E-7/10
