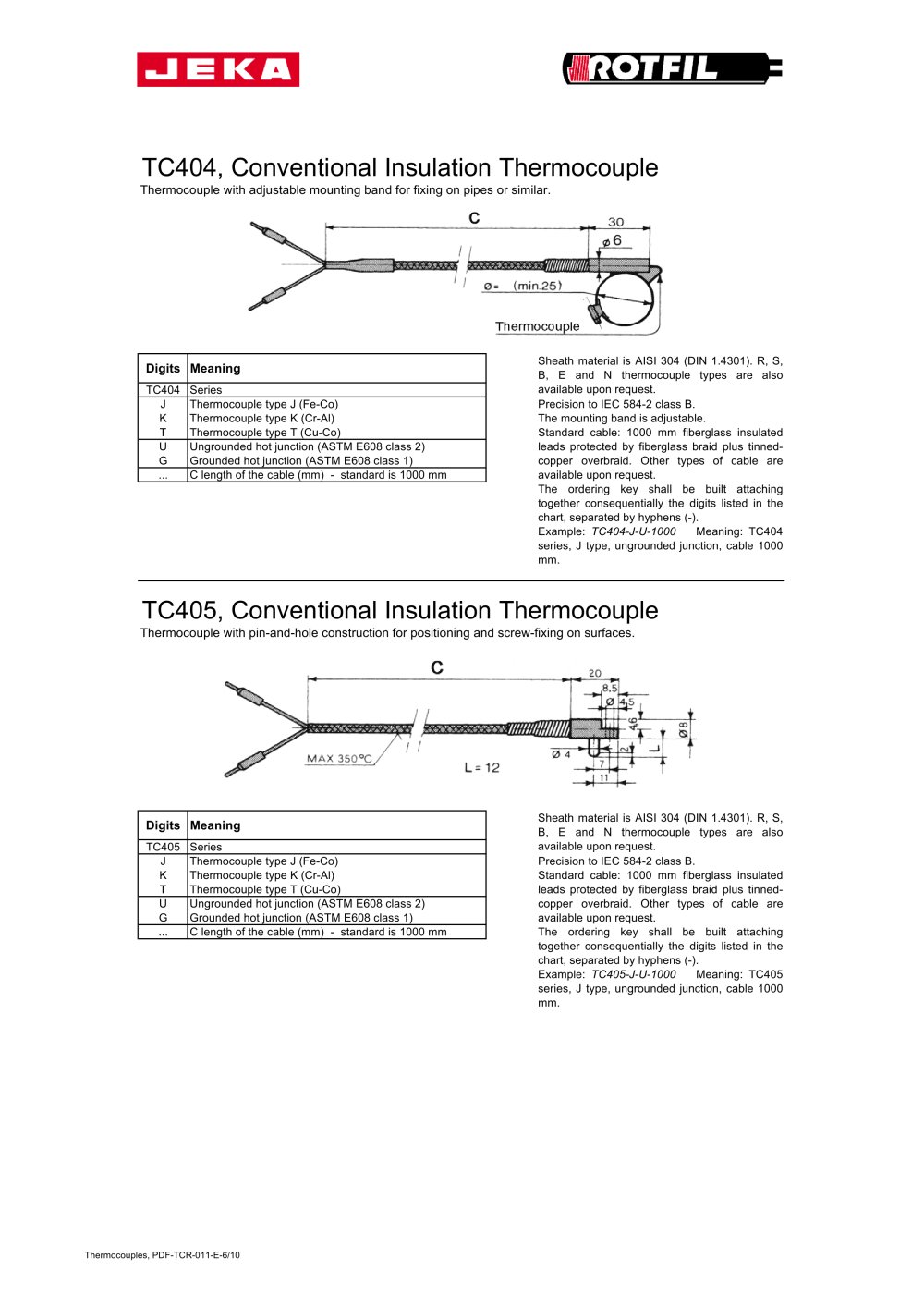

TC404, Conventional Insulation Thermocouple Digits Meaning TC404 Series J Thermocouple type J (Fe-Co) K Thermocouple type K (Cr-Al) T Thermocouple type T (Cu-Co) U Ungrounded hot junction (ASTM E608 class 2) G Grounded hot junction (ASTM E608 class 1) ... C length of the cable (mm) - standard is 1000 mm TC405, Conventional Insulation Thermocouple Digits Meaning TC405 Series J Thermocouple type J (Fe-Co) K Thermocouple type K (Cr-Al) T Thermocouple type T (Cu-Co) U Ungrounded hot junction (ASTM E608 class 2) G Grounded hot junction (ASTM E608 class 1) ... C length of the cable (mm) - standard is 1000 mm Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Thermocouple with pin-and-hole construction for positioning and screw-fixing on surfaces. The mounting band is adjustable. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinnedcopper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC404-J-U-1000 Meaning: TC404 series, J type, ungrounded junction, cable 1000 mm. Thermocouple with adjustable mounting band for fixing on pipes or similar. Precision to IEC 584-2 class B. Precision to IEC 584-2 class B. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC405-J-U-1000 Meaning: TC405 series, J type, ungrounded junction, cable 1000 mm. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinnedcopper overbraid. Other types of cable are available upon request. Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Thermocouples, PDF-TCR-011-E-6/10
