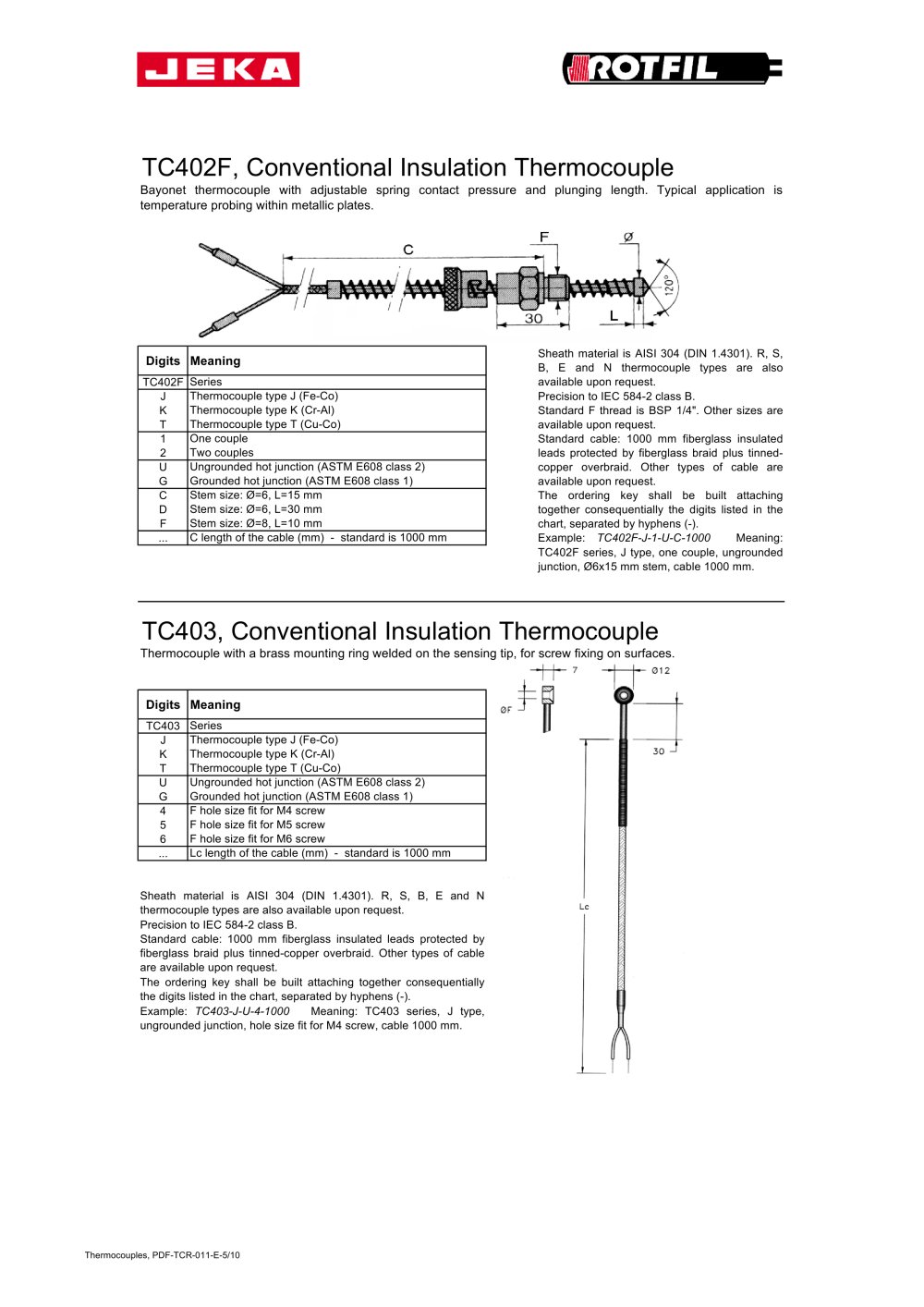

TC402F, Conventional Insulation Thermocouple Digits Meaning TC402F JKT12UGCDF ... TC403, Conventional Insulation Thermocouple Digits Meaning TC403 JKTUG456 ... Thermocouple with a brass mounting ring welded on the sensing tip, for screw fixing on surfaces. F hole size fit for M6 screw Precision to IEC 584-2 class B. Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned-copper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC403-J-U-4-1000 Meaning: TC403 series, J type, ungrounded junction, hole size fit for M4 screw, cable 1000 mm. Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Bayonet thermocouple with adjustable spring contact pressure and plunging length. Typical application is temperature probing within metallic plates. Series Precision to IEC 584-2 class B. Standard F thread is BSP 1/4". Other sizes are available upon request. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinnedcopper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Grounded hot junction (ASTM E608 class 1) Series Lc length of the cable (mm) - standard is 1000 mm Thermocouple type J (Fe-Co) Thermocouple type K (Cr-Al) Thermocouple type T (Cu-Co) Ungrounded hot junction (ASTM E608 class 2) Grounded hot junction (ASTM E608 class 1) F hole size fit for M4 screw F hole size fit for M5 screw C length of the cable (mm) - standard is 1000 mm Stem size: Ø=6, L=15 mm Stem size: Ø=6, L=30 mm Stem size: Ø=8, L=10 mm Thermocouple type T (Cu-Co) One couple Thermocouple type J (Fe-Co) Thermocouple type K (Cr-Al) Example: TC402F-J-1-U-C-1000 Meaning: TC402F series, J type, one couple, ungrounded junction, Ø6x15 mm stem, cable 1000 mm. Two couples Ungrounded hot junction (ASTM E608 class 2) Thermocouples, PDF-TCR-011-E-5/10
