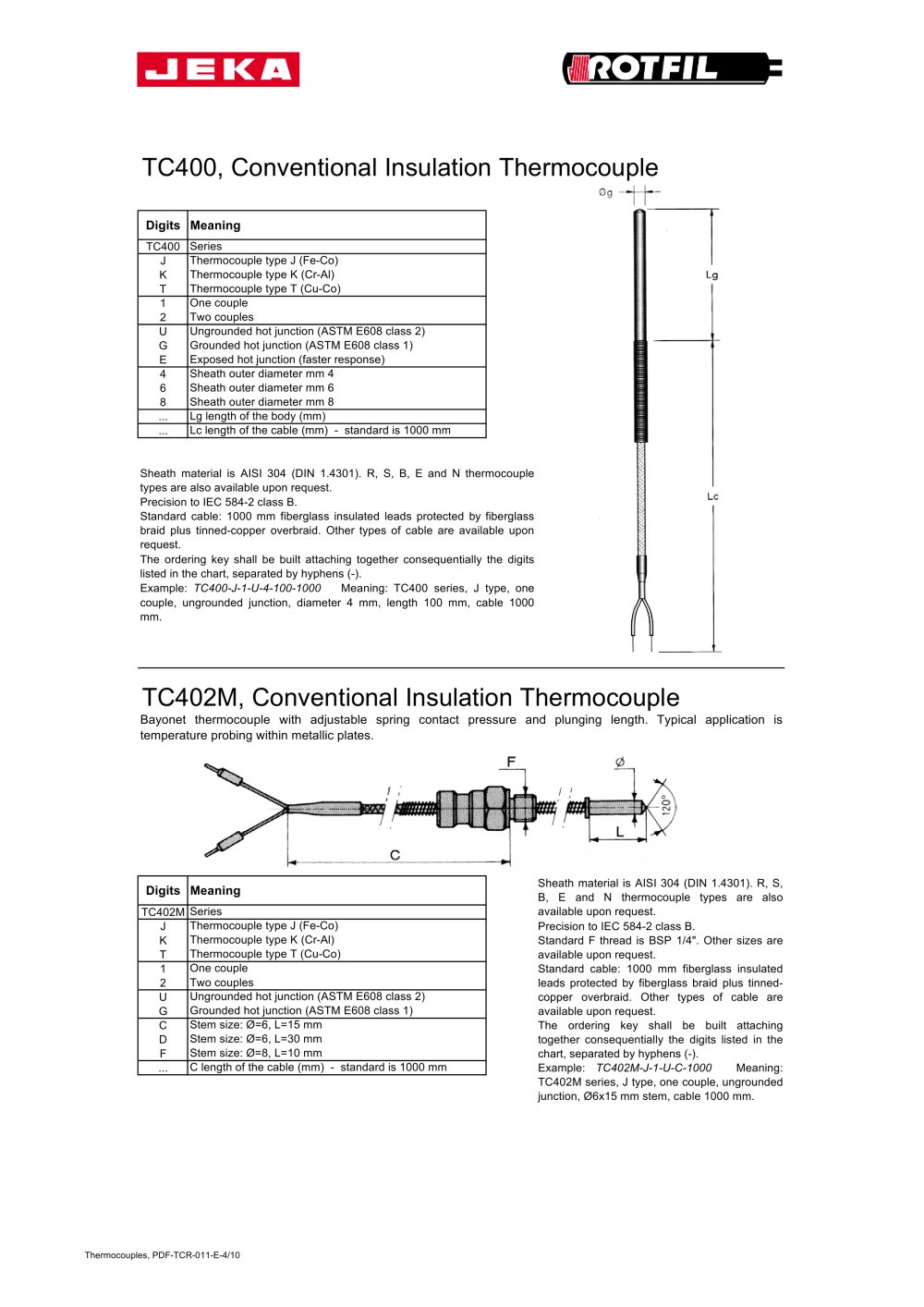

TC400, Conventional Insulation Thermocouple Digits Meaning TC400 JKT12UGE468 ... ... TC402M, Conventional Insulation Thermocouple Digits Meaning TC402M JKT12UGCDF ... Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Precision to IEC 584-2 class B. Standard F thread is BSP 1/4". Other sizes are available upon request. Bayonet thermocouple with adjustable spring contact pressure and plunging length. Typical application is temperature probing within metallic plates. Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinnedcopper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC402M-J-1-U-C-1000 Meaning: TC402M series, J type, one couple, ungrounded junction, Ø6x15 mm stem, cable 1000 mm. Grounded hot junction (ASTM E608 class 1) C length of the cable (mm) - standard is 1000 mm Ungrounded hot junction (ASTM E608 class 2) Stem size: Ø=6, L=15 mm Stem size: Ø=6, L=30 mm Stem size: Ø=8, L=10 mm Thermocouple type J (Fe-Co) Thermocouple type K (Cr-Al) Thermocouple type T (Cu-Co) One couple Series Two couples Thermocouple type J (Fe-Co) Thermocouple type K (Cr-Al) Thermocouple type T (Cu-Co) One couple Series Ungrounded hot junction (ASTM E608 class 2) Precision to IEC 584-2 class B. Exposed hot junction (faster response) Standard cable: 1000 mm fiberglass insulated leads protected by fiberglass braid plus tinned-copper overbraid. Other types of cable are available upon request. The ordering key shall be built attaching together consequentially the digits listed in the chart, separated by hyphens (-). Example: TC400-J-1-U-4-100-1000 Meaning: TC400 series, J type, one couple, ungrounded junction, diameter 4 mm, length 100 mm, cable 1000 mm. Lc length of the cable (mm) - standard is 1000 mm Sheath outer diameter mm 4 Sheath outer diameter mm 6 Sheath outer diameter mm 8 Lg length of the body (mm) Grounded hot junction (ASTM E608 class 1) Sheath material is AISI 304 (DIN 1.4301). R, S, B, E and N thermocouple types are also available upon request. Two couples Thermocouples, PDF-TCR-011-E-4/10
