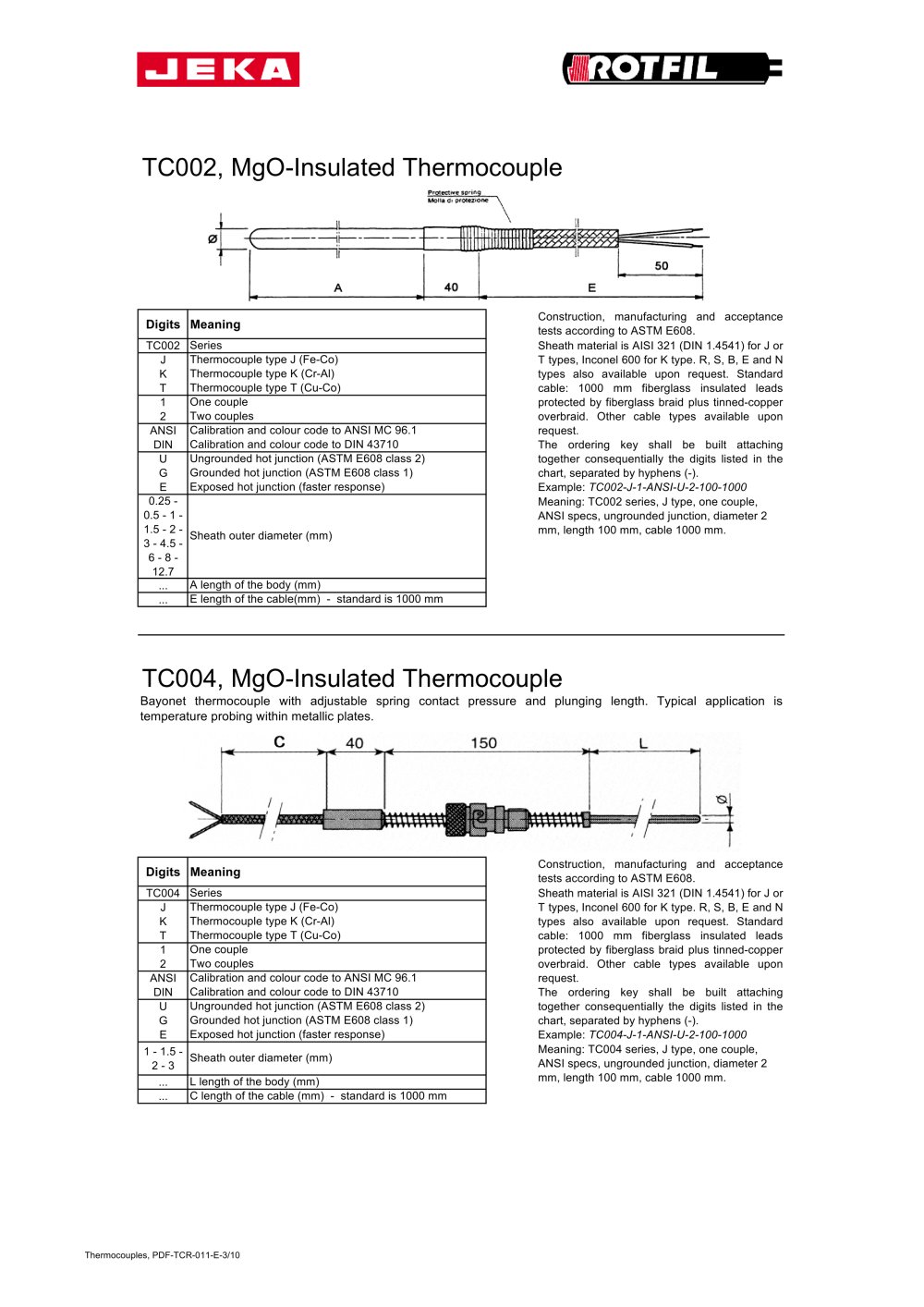

TC002, MgO-Insulated Thermocouple
Digits Meaning
TC002
JKT12
ANSI
DIN
UGE
0.25 -
0.5 - 1 -
1.5 - 2 -
3 - 4.5 -
6 - 8 -
12.7
...
...
TC004, MgO-Insulated Thermocouple
Digits Meaning
TC004
JKT12
ANSI
DIN
UGE
1 - 1.5 -
2 - 3
...
...
Series
A length of the body (mm)
Sheath outer diameter (mm)
Exposed hot junction (faster response)
C length of the
cable (mm) - standard is 1000 mm
E length of the
cable(mm) - standard is 1000 mm
Calibration and colour code to DIN 43710
Ungrounded hot junction (ASTM E608 class 2)
Grounded hot junction (ASTM E608 class 1)
Exposed hot junction (faster response)
Grounded hot junction (ASTM E608 class 1)
Thermocouple type K (Cr-Al)
Thermocouple type J (Fe-Co)
Ungrounded hot junction (ASTM E608 class 2)
Calibration and colour code to DIN 43710
Calibration and colour code to ANSI MC 96.1
Two couples
One couple
Thermocouple type T (Cu-Co)
Bayonet thermocouple with adjustable spring contact pressure and plunging length. Typical application is
temperature probing within metallic plates.
The ordering key shall be built attaching
together consequentially the digits listed in the
chart, separated by hyphens (-).
Example: TC004-J-1-ANSI-U-2-100-1000
Meaning: TC004 series, J type, one couple,
ANSI specs, ungrounded junction, diameter 2
mm, length 100 mm,
cable 1000 mm.
Series
Thermocouple type J (Fe-Co)
Thermocouple type K (Cr-Al)
Thermocouple type T (Cu-Co)
One couple
Two couples
Calibration and colour code to ANSI MC 96.1
Sheath outer diameter (mm)
L length of the body (mm)
Construction, manufacturing and acceptance
tests according to ASTM E608.
Construction, manufacturing and acceptance
tests according to ASTM E608.
Sheath material is AISI 321 (DIN 1.4541) for J or
T types, Inconel 600 for K type. R, S, B, E and N
types also available upon request. Standard
cable: 1000 mm fiberglass insulated leads
protected by fiberglass braid plus tinned-copper
overbraid. Other
cable types available upon
request.
Sheath material is AISI 321 (DIN 1.4541) for J or
T types, Inconel 600 for K type. R, S, B, E and N
types also available upon request. Standard
cable: 1000 mm fiberglass insulated leads
protected by fiberglass braid plus tinned-copper
overbraid. Other
cable types available upon
request.
The ordering key shall be built attaching
together consequentially the digits listed in the
chart, separated by hyphens (-).
Example: TC002-J-1-ANSI-U-2-100-1000
Meaning: TC002 series, J type, one couple,
ANSI specs, ungrounded junction, diameter 2
mm, length 100 mm,
cable 1000 mm.
Thermocouples, PDF-TCR-011-E-3/10
