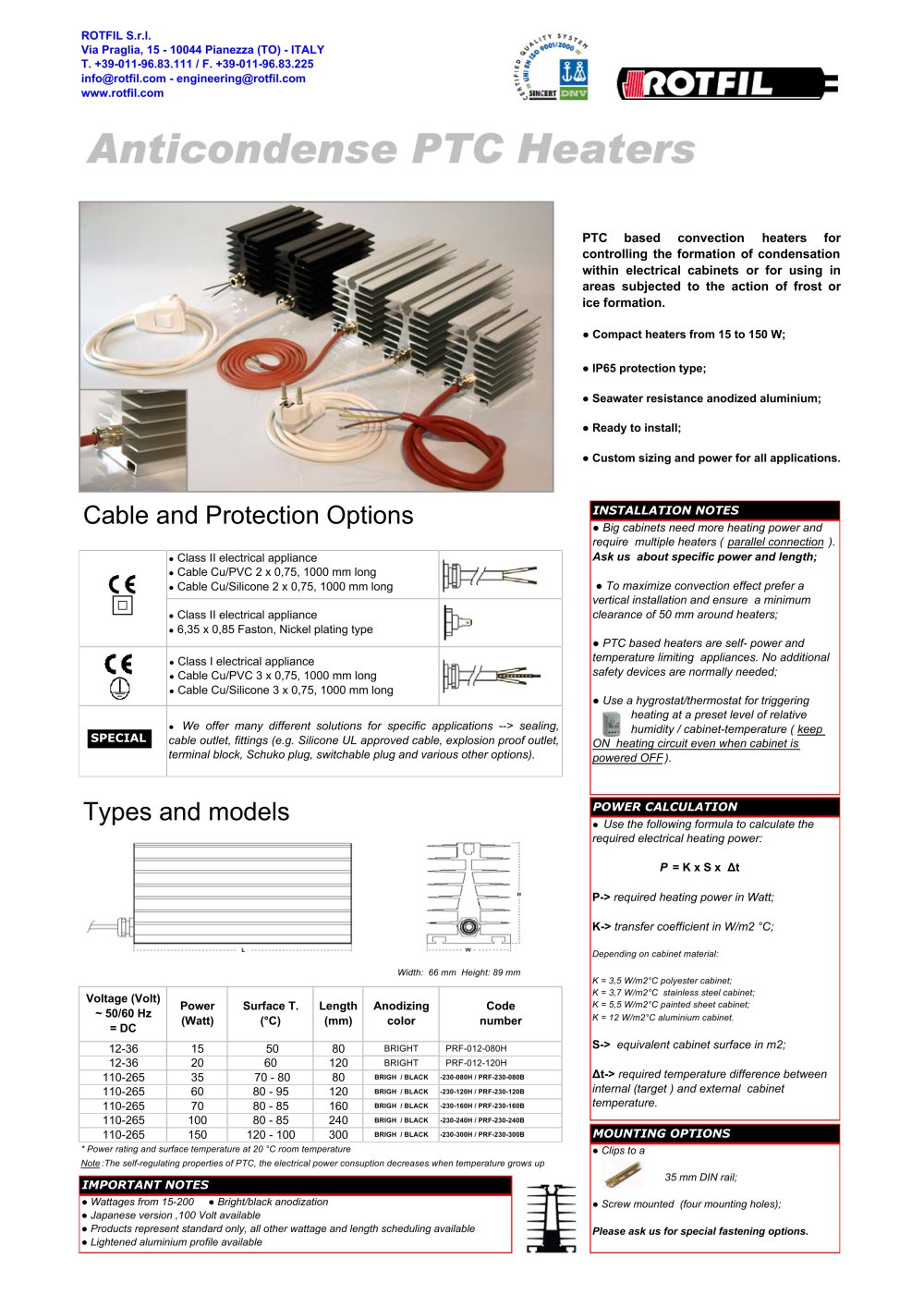

ROTFIL S.r.l. Via Praglia, 15 - 10044 Pianezza (TO) - ITALY info@rotfil.com - engineering@rotfil.com www.rotfil.com Anticondense PTC Heaters 12-36 15 50 80 BRIGHT PRF-012-080H 12-36 20 60 120 BRIGHT PRF-012-120H 110-265 35 70 - 80 80 BRIGH / BLACK F-230-080H / PRF-230-080B 110-265 60 80 - 95 120 BRIGH / BLACK F-230-120H / PRF-230-120B 110-265 70 80 - 85 160 BRIGH / BLACK F-230-160H / PRF-230-160B 110-265 100 80 - 85 240 BRIGH / BLACK F-230-240H / PRF-230-240B 110-265 150 120 - 100 300 BRIGH / BLACK F-230-300H / PRF-230-300B * Power rating and surface temperature at 20 °C room temperature Note :The self-regulating properties of PTC, the electrical power consuption decreases when temperature grows up Anodizing color Code number PTC based convection heaters for controlling the formation of condensation within electrical cabinets or for using in areas subjected to the action of frost or ice formation. �œ Compact heaters from 15 to 150 W; �œ IP65 protection type; �œ Seawater resistance anodized aluminium; �œ Ready to install; �œ Custom sizing and power for all applications. Types and models �œ Class II electrical appliance �œ Cable Cu/PVC 2 x 0,75, 1000 mm long �œ Cable Cu/Silicone 2 x 0,75, 1000 mm long �œ We offer many different solutions for specific applications --> sealing, cable outlet, fittings (e.g. Silicone UL approved cable, explosion proof outlet, terminal block, Schuko plug, switchable plug and various other options). �œ Class II electrical appliance �œ 6,35 x 0,85 Faston, Nickel plating type �œ Class I electrical appliance �œ Cable Cu/PVC 3 x 0,75, 1000 mm long �œ Cable Cu/Silicone 3 x 0,75, 1000 mm long Cable and Protection Options T. +39-011-96.83.111 / F. +39-011-96.83.225 Voltage (Volt) ~ 50/60 Hz = DC Power (Watt) Surface T. (°C) Length (mm) INSTALLATION NOTES �œ Big cabinets need more heating power and require multiple heaters ( parallel connection ). Ask us about specific power and length; �œ To maximize convection effect prefer a vertical installation and ensure a minimum clearance of 50 mm around heaters; �œ PTC based heaters are self- power and temperature limiting appliances. No additional safety devices are normally needed; �œ Use a hygrostat/thermostat for triggering heating at a preset level of relative humidity / cabinet-temperature ( keep ON heating circuit even when cabinet is powered OFF). SPECIAL POWER CALCULATION �œ Use the following formula to calculate the required electrical heating power: P = K x S x Ät P-> required heating power in Watt; K-> transfer coefficient in W/m2 °C; Depending on cabinet material: K = 3,5 W/m2°C polyester cabinet; K = 3,7 W/m2°C stainless steel cabinet; K = 5,5 W/m2°C painted sheet cabinet; K = 12 W/m2°C aluminium cabinet. S-> equivalent cabinet surface in m2; Ät-> required temperature difference between internal (target ) and external cabinet temperature. Width: 66 mm Height: 89 mm MOUNTING OPTIONS �œ Clips to a 35 mm DIN rail; �œ Screw mounted (four mounting holes); Please ask us for special fastening options. IMPORTANT NOTES �œ Wattages from 15-200 �œ Bright/black anodization �œ Japanese version ,100 Volt available �œ Products represent standard only, all other wattage and length scheduling available �œ Lightened aluminium profile available
