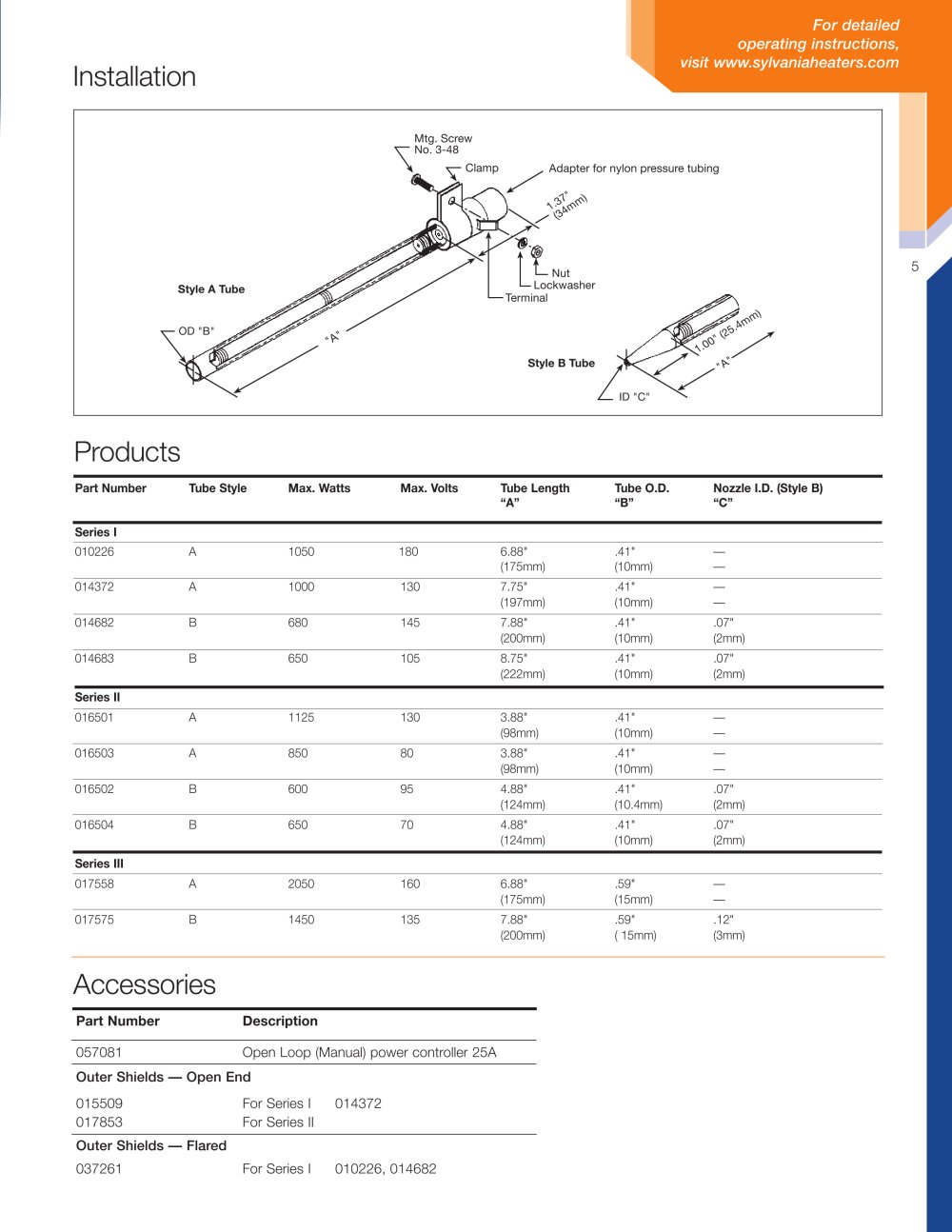

For detailed operating instructions, visit www.sylvaniaheaters.com Mtg. Screw No. 3-48 Clamp Nut Lockwasher Terminal 1.37" (34mm) "A" OD "B" "A" 1.00" (25.4mm) ID "C" Style A Tube Style B Tube Adapter for nylon pressure tubing Part Number Tube Style Max. Watts Max. Volts Tube Length Tube O.D. Nozzle I.D. (Style B) “A” “B” “C” Series I 010226 A 1050 180 6.88" .41" — (175mm) (10mm) — 014372 A 1000 130 7.75" .41" — (197mm) (10mm) — 014682 B 680 145 7.88" .41" .07" (200mm) (10mm) (2mm) 014683 B 650 105 8.75" .41" .07" (222mm) (10mm) (2mm) Series II 016501 A 1125 130 3.88" .41" — (98mm) (10mm) — 016503 A 850 80 3.88" .41" — (98mm) (10mm) — 016502 B 600 95 4.88" .41" .07" (124mm) (10.4mm) (2mm) 016504 B 650 70 4.88" .41" .07" (124mm) (10mm) (2mm) Series III 017558 A 2050 160 6.88" .59" — (175mm) (15mm) — 017575 B 1450 135 7.88" .59" .12" (200mm) ( 15mm) (3mm) Accessories Part Number Description 057081 Open Loop (Manual) power controller 25A Outer Shields — Open End 015509 For Series I 014372 017853 For Series II Outer Shields — Flared 037261 For Series I 010226, 014682 5 Products Installation
