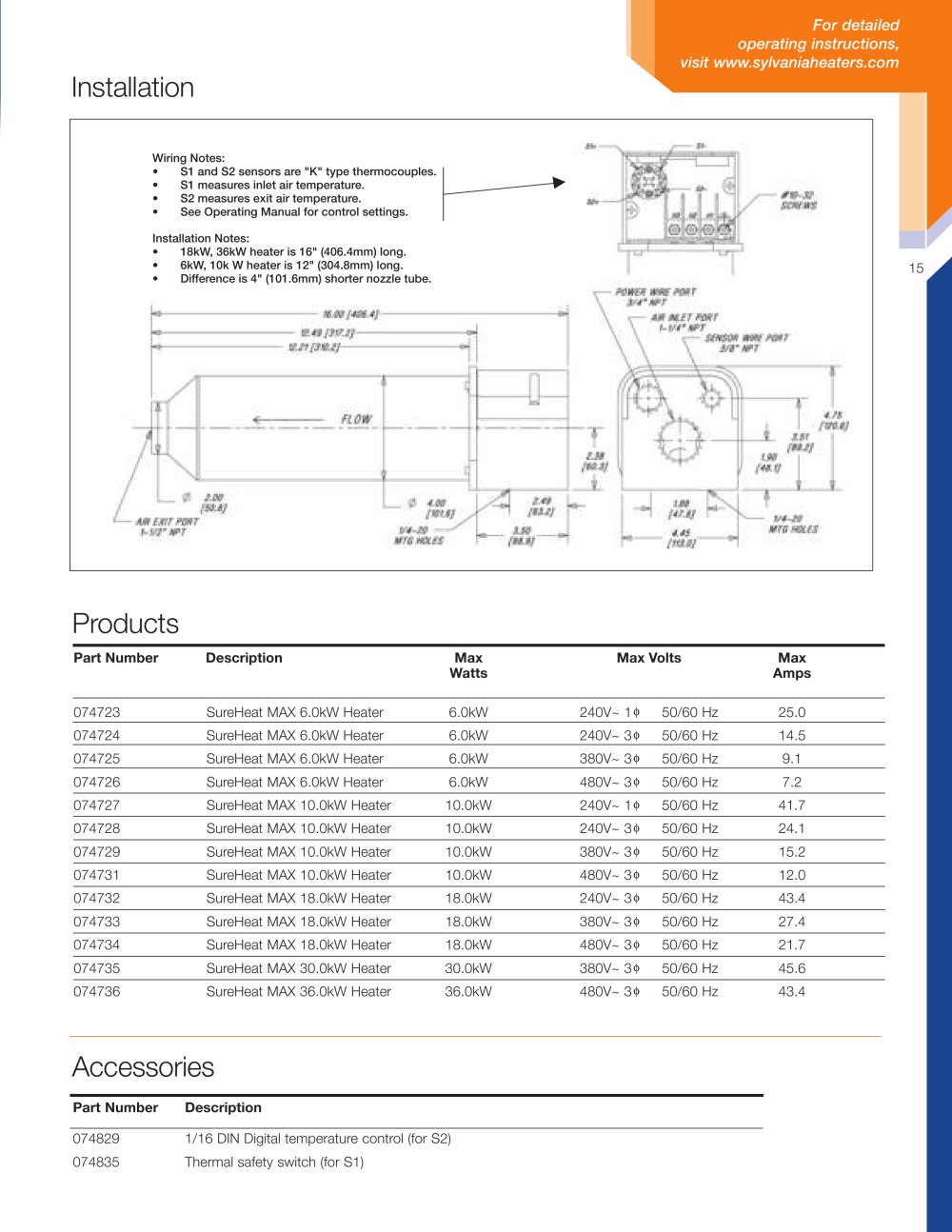

15 Wiring Notes: • S1 and S2 sensors are "K" type thermocouples. • S1 measures inlet air temperature. • S2 measures exit air temperature. • See Operating Manual for control settings. Installation Notes: • 18kW, 36kW heater is 16" (406.4mm) long. • 6kW, 10k W heater is 12" (304.8mm) long. • Difference is 4" (101.6mm) shorter nozzle tube. For detailed operating instructions, visit www.sylvaniaheaters.com Part Number Description Max Max Volts Max Watts Amps 074723 SureHeat MAX 6.0kW Heater 6.0kW 240V~ 1 50/60 Hz 25.0 074724 SureHeat MAX 6.0kW Heater 6.0kW 240V~ 3 50/60 Hz 14.5 074725 SureHeat MAX 6.0kW Heater 6.0kW 380V~ 3 50/60 Hz 9.1 074726 SureHeat MAX 6.0kW Heater 6.0kW 480V~ 3 50/60 Hz 7.2 074727 SureHeat MAX 10.0kW Heater 10.0kW 240V~ 1 50/60 Hz 41.7 074728 SureHeat MAX 10.0kW Heater 10.0kW 240V~ 3 50/60 Hz 24.1 074729 SureHeat MAX 10.0kW Heater 10.0kW 380V~ 3 50/60 Hz 15.2 074731 SureHeat MAX 10.0kW Heater 10.0kW 480V~ 3 50/60 Hz 12.0 074732 SureHeat MAX 18.0kW Heater 18.0kW 240V~ 3 50/60 Hz 43.4 074733 SureHeat MAX 18.0kW Heater 18.0kW 380V~ 3 50/60 Hz 27.4 074734 SureHeat MAX 18.0kW Heater 18.0kW 480V~ 3 50/60 Hz 21.7 074735 SureHeat MAX 30.0kW Heater 30.0kW 380V~ 3 50/60 Hz 45.6 074736 SureHeat MAX 36.0kW Heater 36.0kW 480V~ 3 50/60 Hz 43.4 Products Part Number Description 074829 1/16 DIN Digital temperature control (for S2) 074835 Thermal safety switch (for S1) Accessories Installation
