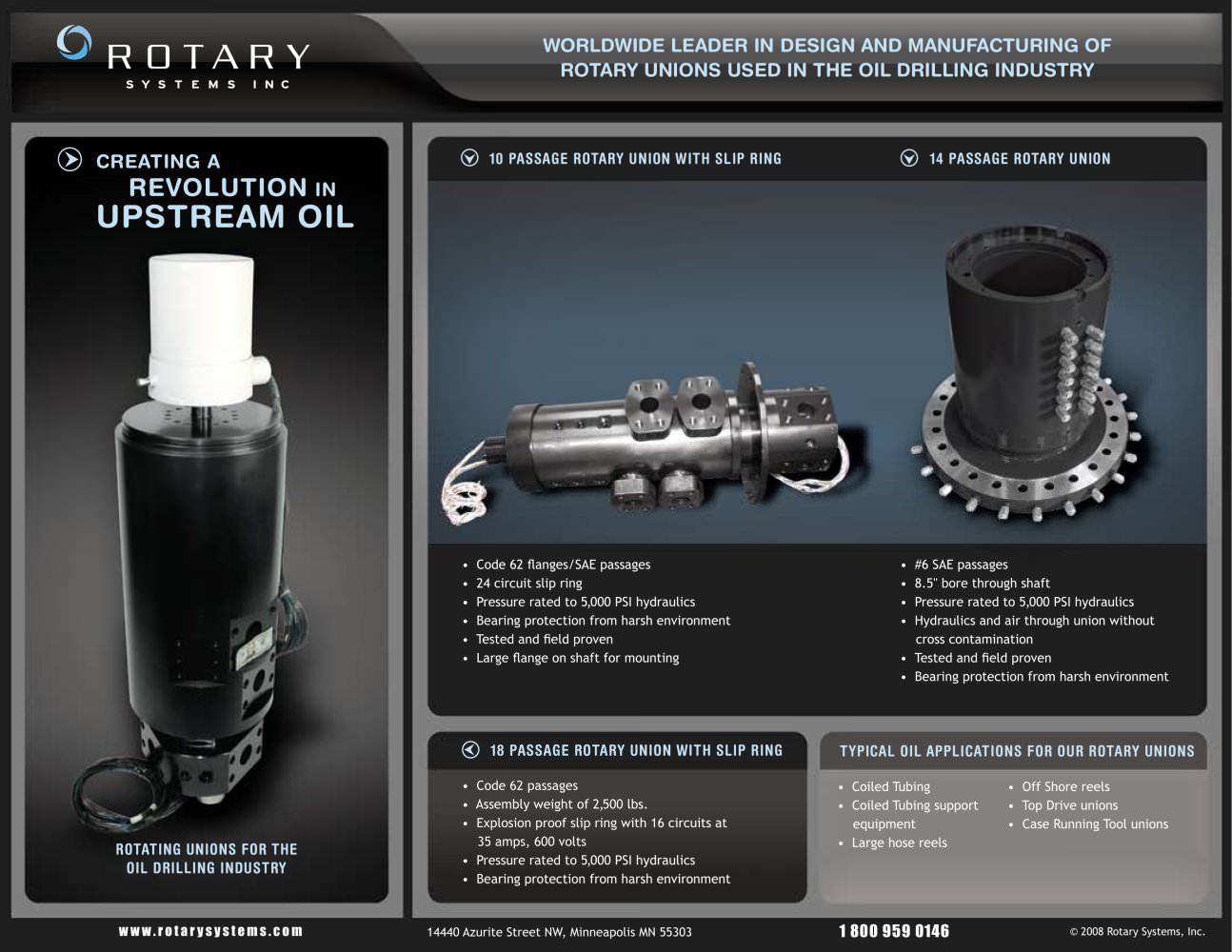

WORLDWIDE LEADER IN DESIGN AND MANUFACTURING OFROTARY UNIONS USED IN THE OIL DRILLING INDUSTRY CREATING A

10 PASSAGE ROTARY UNION WITH SLIP RING 14 PASSAGE ROTARY UNION

REVOLUTION

IN

Rotating Unions for the Oil Drilling Industry - 17337 UPSTREAM OIL

• Code 62 flanges/SAE passages• 24 circuit slip ring • Pressure rated to 5,000 PSI hydraulics • Bearing protection from harsh environment • Tested and field proven • Large flange on shaft for mounting 18 PASSAGE ROTARY UNION WITH SLIP RING TYPICAL OIL APPLICATIONS FOR OUR ROTARY UNIONS
• Code 62 passages• Assembly weight of 2,500 lbs. • Explosion proof slip ring with 16 circuits at 35 amps, 600 volts • Pressure rated to 5,000 PSI hydraulics • Bearing protection from harsh environment • #6 SAE passages• 8.5" bore through shaft • Pressure rated to 5,000 PSI hydraulics • Hydraulics and air through union without cross contamination • Tested and field proven • Bearing protection from harsh environment • Coiled Tubing • Coiled Tubing support equipment • Large hose reels• Off Shore reels• Top Drive unions • Case Running Tool unions ROTATING UNIONS FOR THEOIL DRILLING INDUSTRY
www.rotarysystems.com 14440 Azurite Street NW, Minneapolis MN 55303

1 800 959 0146

© 2008 Rotary Systems, Inc.
