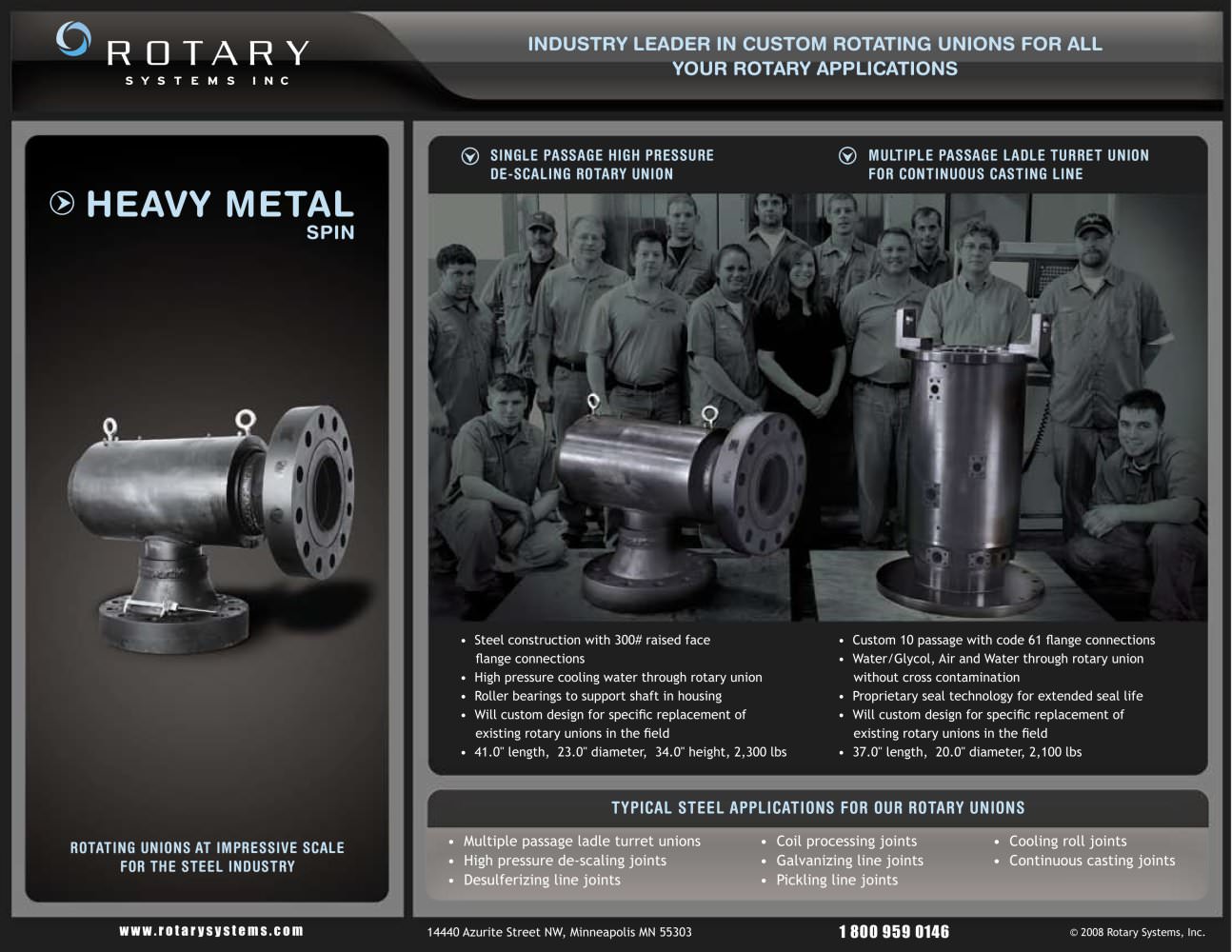

INDUSTRY LEADER IN CUSTOM ROTATING UNIONS FOR ALL YOUR ROTARY APPLICATIONS

SINGLE PASSAGE HIGH PRESSURE DE-SCALING ROTARY UNION MULTIPLE PASSAGE LADLE TURRET UNIONFOR CONTINUOUS CASTING LINE

Rotating Unions at Impressive Scale for the Steel Industry - 17337 HEAVY METAL

SPIN

• Steel construction with 300# raised face flange connections • High pressure cooling water through rotary union • Roller bearings to support shaft in housing • Will custom design for specific replacement of existing rotary unions in the field • 41.0" length, 23.0" diameter, 34.0" height, 2,300 lbs• Custom 10 passage with code 61 flange connections• Water/Glycol, Air and Water through rotary union without cross contamination • Proprietary seal technology for extended seal life • Will custom design for specific replacement of existing rotary unions in the field • 37.0" length, 20.0" diameter, 2,100 lbs

TYPICAL STEEL APPLICATIONS FOR OUR ROTARY UNIONS

ROTATING UNIONS AT IMPRESSIVE SCALEFOR THE STEEL INDUSTRY
• Multiple passage ladle turret unions • High pressure de-scaling joints • Desulferizing line joints • Coil processing joints• Galvanizing line joints • Pickling line joints • Cooling roll joints • Continuous casting joints www.rotarysystems.com 14440 Azurite Street NW, Minneapolis MN 55303
