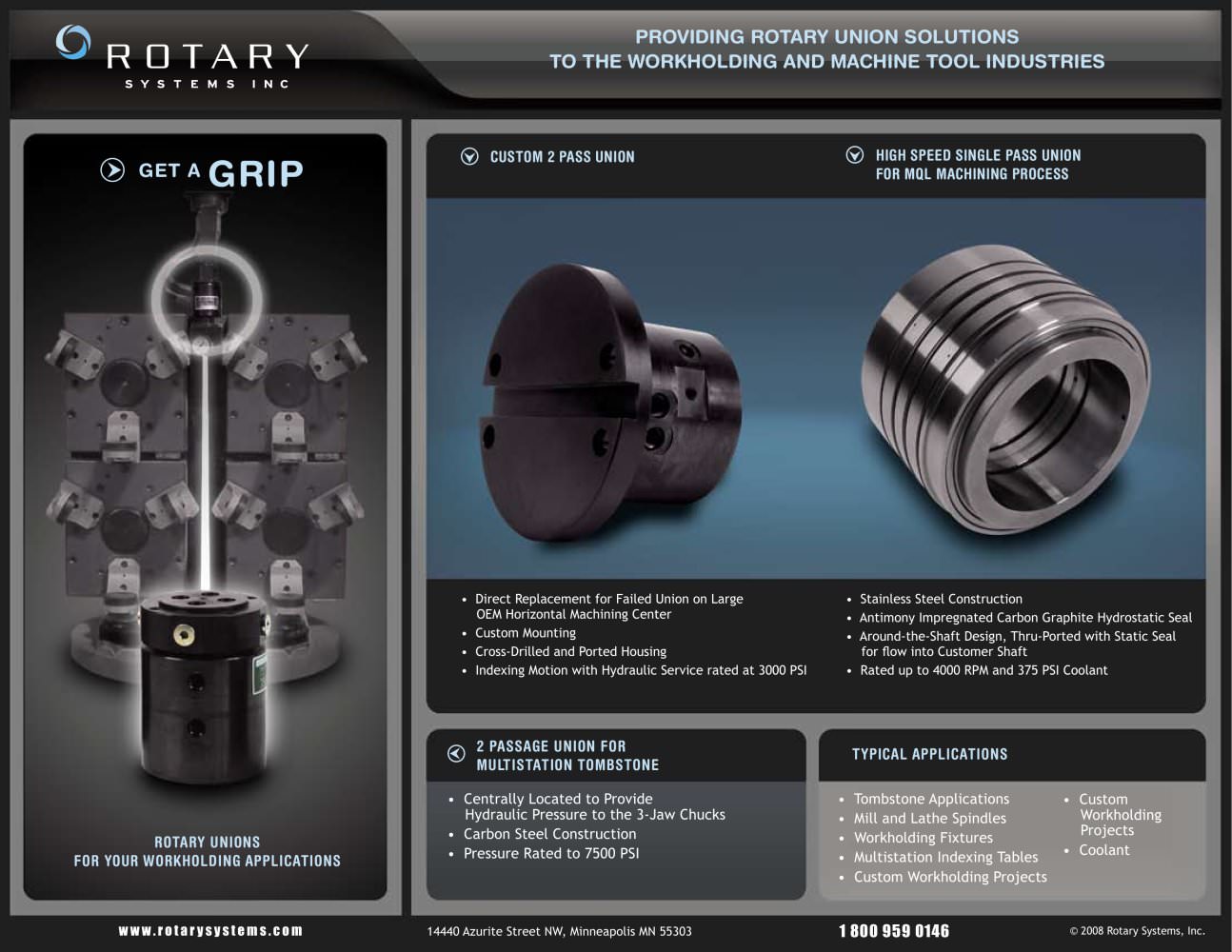

PROVIDING ROTARY UNION SOLUTIONSTO THE WORKHOLDING AND MACHINE TOOL INDUSTRIES

CUSTOM 2 PASS UNION HIGH SPEED SINGLE PASS UNION FOR MQL MACHINING PROCESS

GET A

Rotary Unions for your Workholding Applications - 17337 GRIP

• Direct Replacement for Failed Union on Large OEM Horizontal Machining Center• Custom Mounting • Cross-Drilled and Ported Housing • Indexing Motion with Hydraulic Service rated at 3000 PSI • Stainless Steel Construction• Antimony Impregnated Carbon Graphite Hydrostatic Seal • Around-the-Shaft Design, Thru-Ported with Static Seal for flow into Customer Shaft• Rated up to 4000 RPM and 375 PSI Coolant 2 PASSAGE UNION FORMULTISTATION TOMBSTONETYPICAL APPLICATIONS
• Centrally Located to Provide Hydraulic Pressure to the 3-Jaw Chucks• Carbon Steel Construction • Pressure Rated to 7500 PSI• Tombstone Applications• Mill and Lathe Spindles • Workholding Fixtures • Multistation Indexing Tables • Custom Workholding Projects • Custom Workholding Projects• Coolant ROTARY UNIONSFOR YOUR WORKHOLDING APPLICATIONS
www.rotarysystems.com 14440 Azurite Street NW, Minneapolis MN 55303

1 800 959 0146

© 2008 Rotary Systems, Inc.
