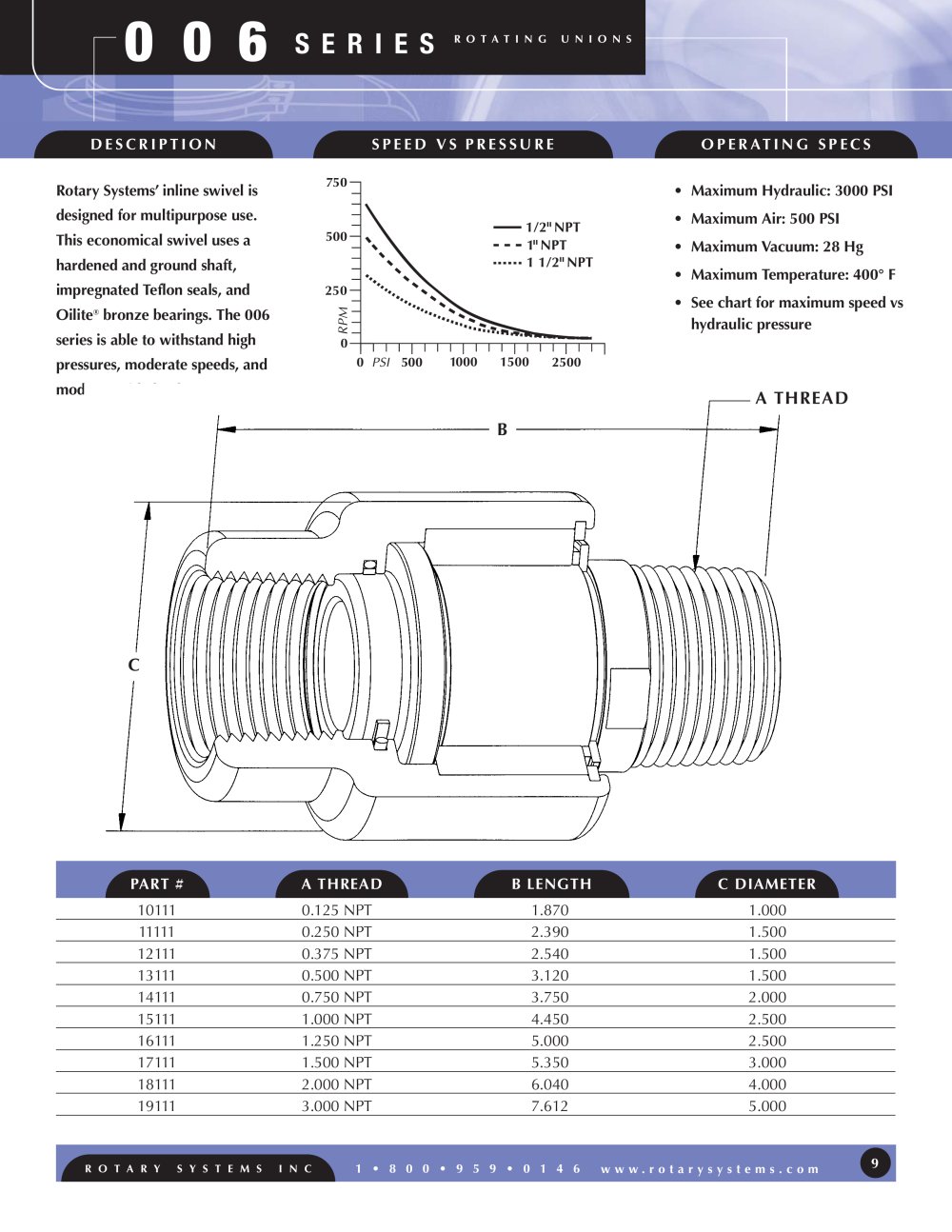

R O T A R Y S Y S T E M S I N C 1 • 8 0 0 • 9 5 9 • 0 1 4 6 w w w. r o t a r y s y s t e m s . c o m DESCRIPTION SPEED VS PRESSURE OPERATING SPECS 0 0 6 S E R I E S R O T A T I N G U N I O N S 9 Rotary Systems’ inline swivel is designed for multipurpose use. This economical swivel uses a hardened and ground shaft, impregnated Teflon seals, and Oilite® bronze bearings. The 006 series is able to withstand high pressures, moderate speeds, and moderate side loads. B A THREADa C PART # A THREAD B LENGTH C DIAMETER 10111 0.125 NPT 1.870 1.000 11111 0.250 NPT 2.390 1.500 12111 0.375 NPT 2.540 1.500 13111 0.500 NPT 3.120 1.500 14111 0.750 NPT 3.750 2.000 15111 1.000 NPT 4.450 2.500 16111 1.250 NPT 5.000 2.500 17111 1.500 NPT 5.350 3.000 18111 2.000 NPT 6.040 4.000 19111 3.000 NPT 7.612 5.000 • Maximum Hydraulic: 3000 PSI • Maximum Air: 500 PSI • Maximum Vacuum: 28 Hg • Maximum Temperature: 400° F • See chart for maximum speed vs hydraulic pressure 500 750 250 0 500 0 1000 1500 2500 1" NPT 1/2" NPT 1 1/2" NPT RPM PSI
