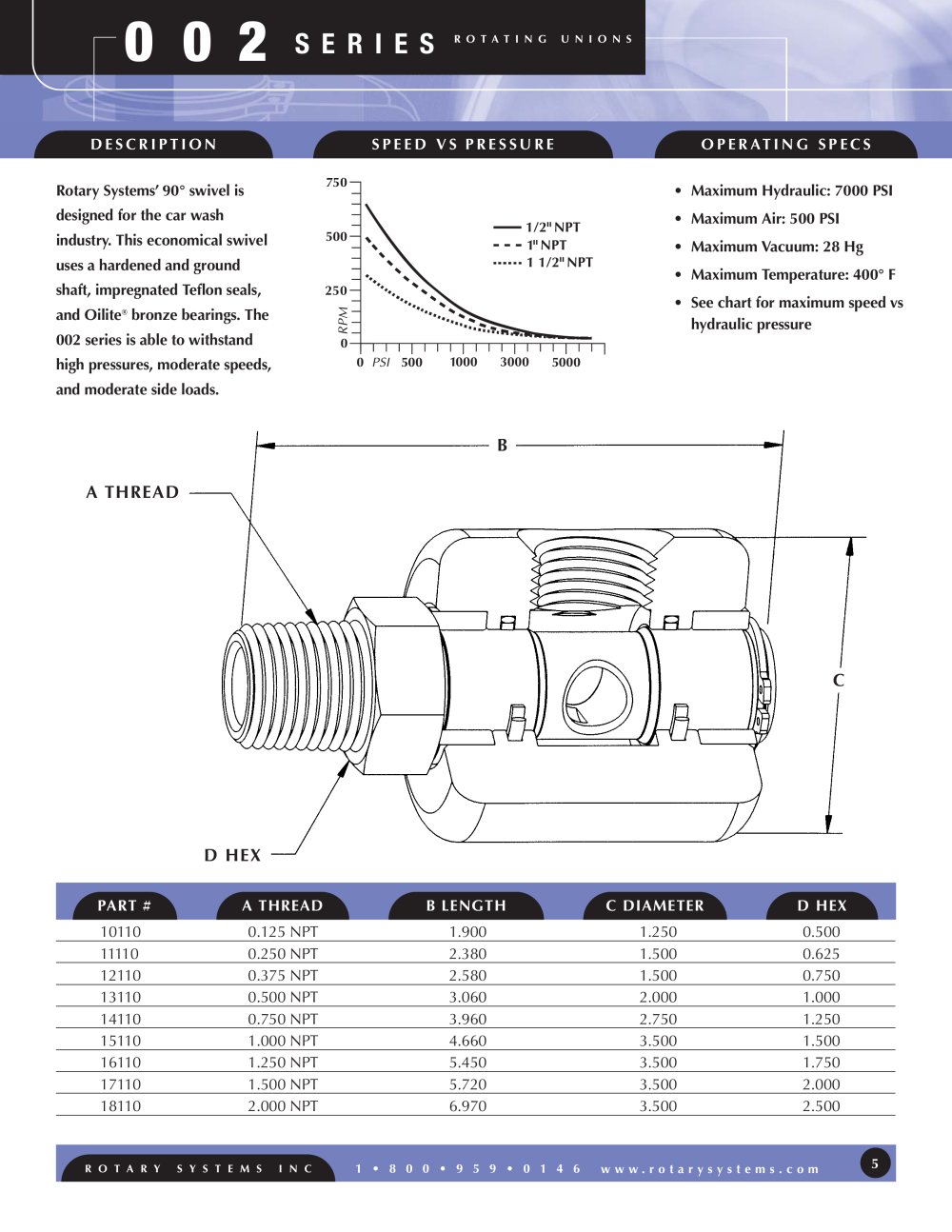

R O T A R Y S Y S T E M S I N C 1 • 8 0 0 • 9 5 9 • 0 1 4 6 w w w. r o t a r y s y s t e m s . c o m DESCRIPTION SPEED VS PRESSURE OPERATING SPECS 0 0 2 S E R I E S R O T A T I N G U N I O N S Rotary Systems’ 90° swivel is designed for the car wash industry. This economical swivel uses a hardened and ground shaft, impregnated Teflon seals, and Oilite® bronze bearings. The 002 series is able to withstand high pressures, moderate speeds, and moderate side loads. 500 750 250 0 500 0 1000 3000 5000 1" NPT 1/2" NPT 1 1/2" NPT RPM PSI • Maximum Hydraulic: 7000 PSI • Maximum Air: 500 PSI • Maximum Vacuum: 28 Hg • Maximum Temperature: 400° F • See chart for maximum speed vs hydraulic pressure A THREADa B C D HEXa PART # A THREAD B LENGTH C DIAMETER D HEX 10110 0.125 NPT 1.900 1.250 0.500 11110 0.250 NPT 2.380 1.500 0.625 12110 0.375 NPT 2.580 1.500 0.750 13110 0.500 NPT 3.060 2.000 1.000 14110 0.750 NPT 3.960 2.750 1.250 15110 1.000 NPT 4.660 3.500 1.500 16110 1.250 NPT 5.450 3.500 1.750 17110 1.500 NPT 5.720 3.500 2.000 18110 2.000 NPT 6.970 3.500 2.500 5
