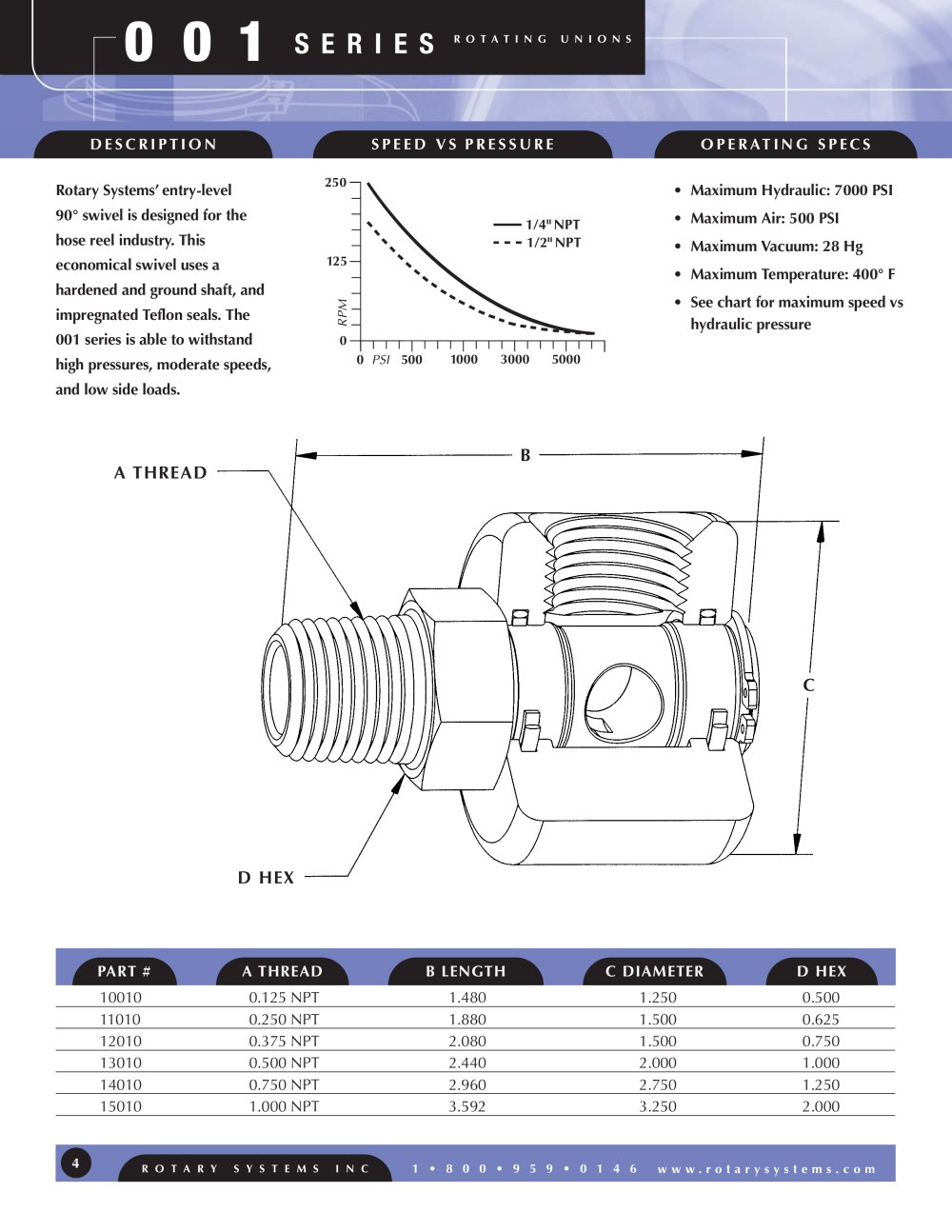

R O T A R Y S Y S T E M S I N C 1 • 8 0 0 • 9 5 9 • 0 1 4 6 w w w. r o t a r y s y s t e m s . c o m DESCRIPTION SPEED VS PRESSURE OPERATING SPECS 0 0 1 S E R I E S R O T A T I N G U N I O N S 250 125 0 500 0 1000 3000 5000 1/2" NPT 1/4" NPT RPM PSI Rotary Systems’ entry-level 90° swivel is designed for the hose reel industry. This economical swivel uses a hardened and ground shaft, and impregnated Teflon seals. The 001 series is able to withstand high pressures, moderate speeds, and low side loads. PART # A THREAD B LENGTH C DIAMETER D HEX 10010 0.125 NPT 1.480 1.250 0.500 11010 0.250 NPT 1.880 1.500 0.625 12010 0.375 NPT 2.080 1.500 0.750 13010 0.500 NPT 2.440 2.000 1.000 14010 0.750 NPT 2.960 2.750 1.250 15010 1.000 NPT 3.592 3.250 2.000 B A THREADa C D HEXa • Maximum Hydraulic: 7000 PSI • Maximum Air: 500 PSI • Maximum Vacuum: 28 Hg • Maximum Temperature: 400° F • See chart for maximum speed vs hydraulic pressure 4
