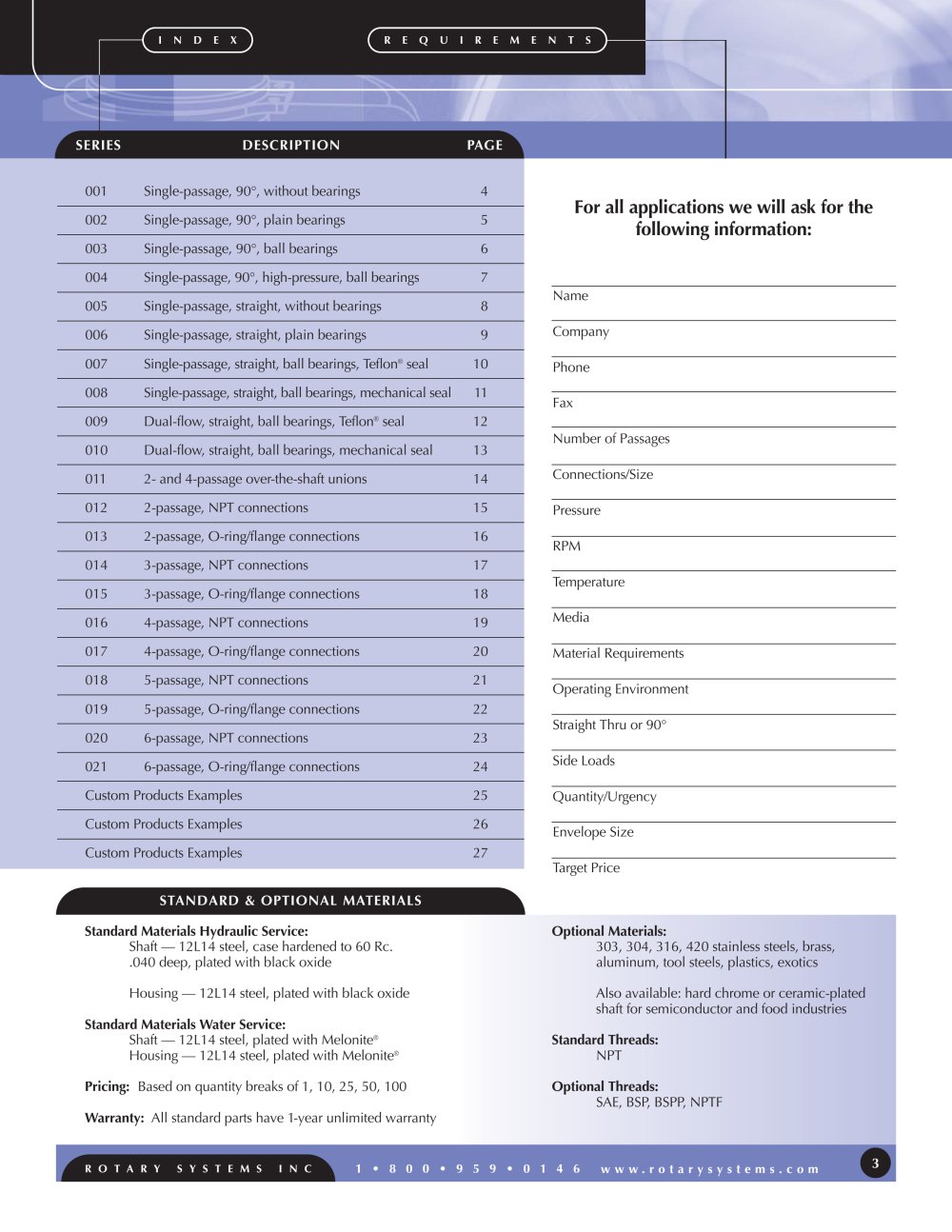

I N D E X R E Q U I R E M E N T S STANDARD & OPTIONAL MATERIALS Standard Materials Hydraulic Service: Shaft — 12L14 steel, case hardened to 60 Rc. .040 deep, plated with black oxide Housing — 12L14 steel, plated with black oxide Standard Materials Water Service: Shaft — 12L14 steel, plated with Melonite® Housing — 12L14 steel, plated with Melonite® Pricing: Based on quantity breaks of 1, 10, 25, 50, 100 Warranty: All standard parts have 1-year unlimited warranty Optional Materials: 303, 304, 316, 420 stainless steels, brass, aluminum, tool steels, plastics, exotics Also available: hard chrome or ceramic-plated shaft for semiconductor and food industries Standard Threads: NPT Optional Threads: SAE, BSP, BSPP, NPTF R O T A R Y S Y S T E M S I N C 1 • 8 0 0 • 9 5 9 • 0 1 4 6 w w w. r o t a r y s y s t e m s . c o m 3 SERIES DESCRIPTION PAGE Name Company Phone Fax Number of Passages Connections/Size Pressure RPM Temperature Media Material Requirements Operating Environment Straight Thru or 90° Side Loads Quantity/Urgency Envelope Size Target Price For all applications we will ask for the following information: 001 Single-passage, 90°, without bearings 4 002 Single-passage, 90°, plain bearings 5 003 Single-passage, 90°, ball bearings 6 004 Single-passage, 90°, high-pressure, ball bearings 7 005 Single-passage, straight, without bearings 8 006 Single-passage, straight, plain bearings 9 007 Single-passage, straight, ball bearings, Teflon® seal 10 008 Single-passage, straight, ball bearings, mechanical seal 11 009 Dual-flow, straight, ball bearings, Teflon® seal 12 010 Dual-flow, straight, ball bearings, mechanical seal 13 011 2- and 4-passage over-the-shaft unions 14 012 2-passage, NPT connections 15 013 2-passage, O-ring/flange connections 16 014 3-passage, NPT connections 17 015 3-passage, O-ring/flange connections 18 016 4-passage, NPT connections 19 017 4-passage, O-ring/flange connections 20 018 5-passage, NPT connections 21 019 5-passage, O-ring/flange connections 22 020 6-passage, NPT connections 23 021 6-passage, O-ring/flange connections 24 Custom Products Examples 25 Custom Products Examples 26 Custom Products Examples 27
