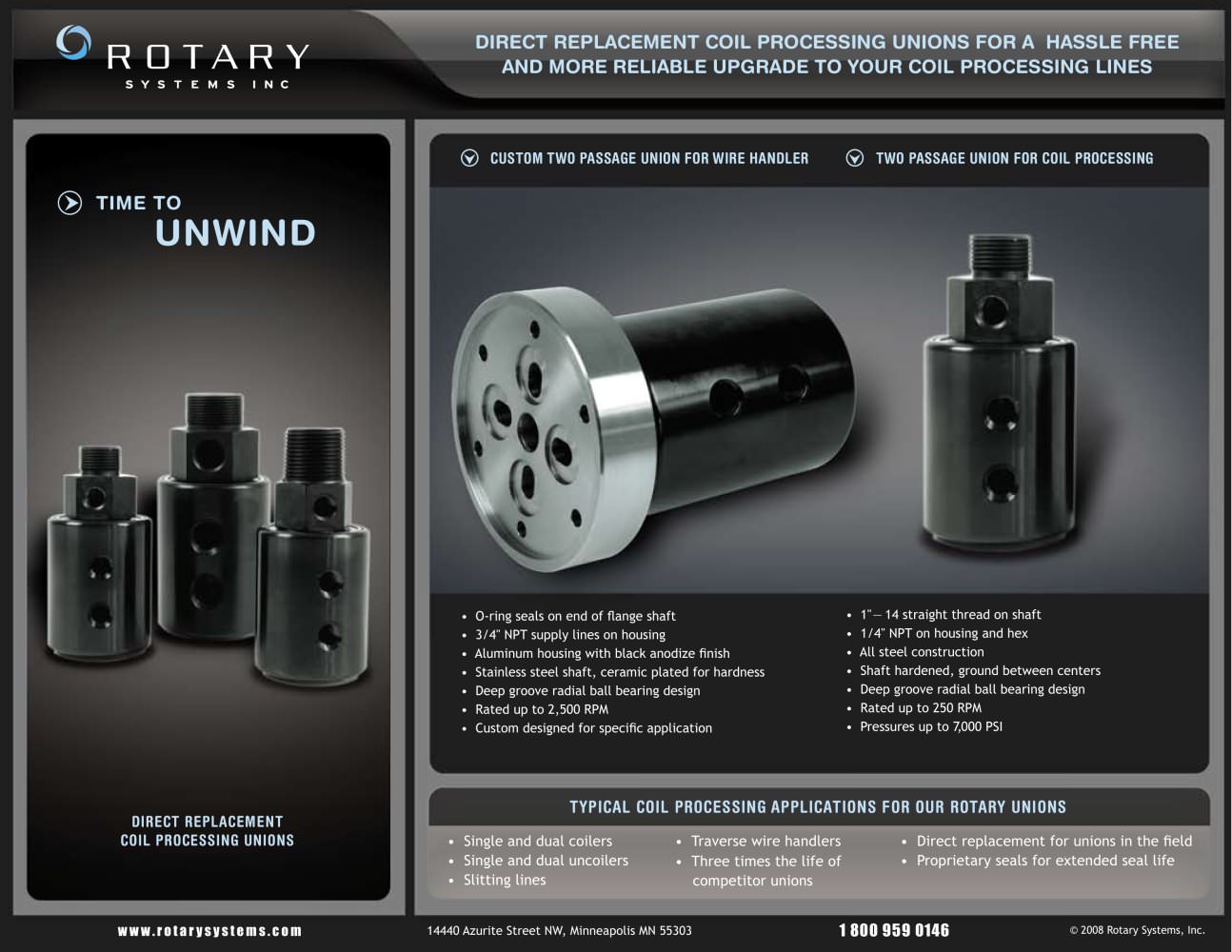

DIRECT REPLACEMENT COIL PROCESSING UNIONS FOR A HASSLE FREEAND MORE RELIABLE UPGRADE TO YOUR COIL PROCESSING LINES

CUSTOM TWO PASSAGE UNION FOR WIRE HANDLER TWO PASSAGE UNION FOR COIL PROCESSING

TIME TO

Direct Replacement Coil Processing Unions - 17337 UNWIND

• O-ring seals on end of flange shaft• 3/4" NPT supply lines on housing • Aluminum housing with black anodize finish • Stainless steel shaft, ceramic plated for hardness • Deep groove radial ball bearing design • Rated up to 2,500 RPM • Custom designed for specific application • 1" — 14 straight thread on shaft• 1/4" NPT on housing and hex• All steel construction • Shaft hardened, ground between centers • Deep groove radial ball bearing design • Rated up to 250 RPM • Pressures up to 7,000 PSI

TYPICAL COIL PROCESSING APPLICATIONS FOR OUR ROTARY UNIONS

DIRECT REPLACEMENTCOIL PROCESSING UNIONS
• Single and dual coilers • Single and dual uncoilers • Slitting lines • Traverse wire handlers• Three times the life of competitor unions • Direct replacement for unions in the field • Proprietary seals for extended seal life www.rotarysystems.com 14440 Azurite Street NW, Minneapolis MN 55303

1 800 959 0146

© 2008 Rotary Systems, Inc.
