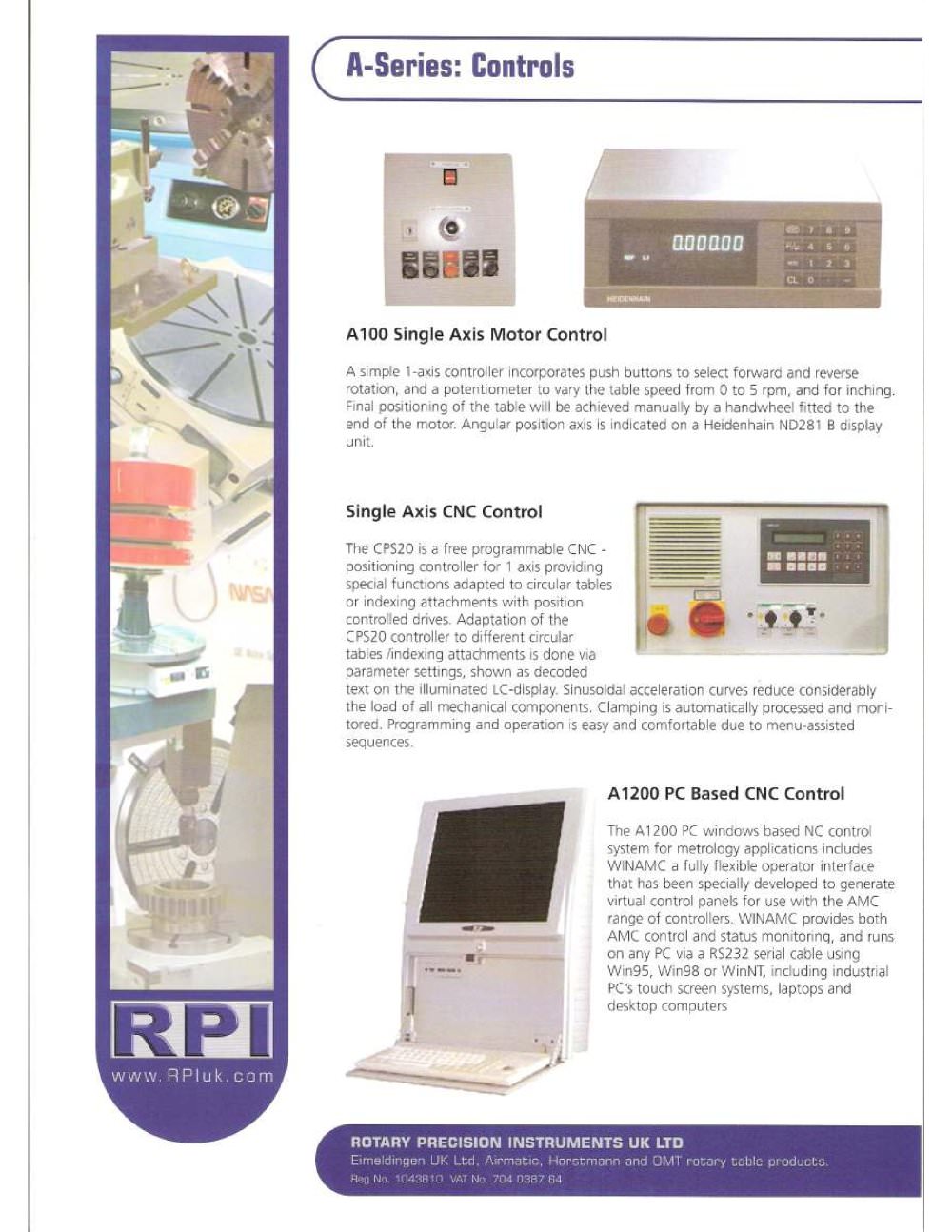

| | | A-Series: Controls | | |
| | | |
| | | |
| | | | | | | | | | nnnnnn | 1—1S¿£¡¿sí¿~~ | | | | uuuuUU | Sll | | | | | | | | | |
| | | |
| | | MMn | | |
| | | |
| | | A100 Single Axis Motor Control A simple 1-axis controller incorporates push buttons to select forward and reverse rotation, and a potentiometer suppliers to vary the table speed from 0 to 5 rpm, and for inching. Final positioning of the '.able will be achieved manually by a handwheel fitted to the end of the motor. Anguar position axis is indicated on a Heidenhain ND281 B display unit. | | |
| | | |
| | | The CPS20 is a free programmable CNC -positioning controller fo' 1 axis providing special functions adapted to circular tables or indexing attachments with position controlled drives. Adaptation of the CPS20 controller to different circular tables /indexing attachments is done via parameter settings, shown as decoded text on the illuminated LC-display. Sinusoidal acceleration curves reduce considerably the load of all mechanical components. Clamping is automatically processed and monitored. Programming and operation is easy and comfortable due to menu-assisted sequences. | | |
| | | |
| | | A1200 PC Based CNC Control The A1200 PC windows based NC control system for metrology applications includes WINAMC a fully flexible operator interface that has been specially developed to generate virtual control panels for use with the AMC range of professional controllers. WINAMC provides both AMC control and status monitoring, and runs on any PC via a RS232 serial cable using Win95, Win98 or WinNT, including industrial PC's touch display systems, laptops and desktop industrial computers | | |
| | | IrpT | | |
| | | |
| | | |
| | | f ROTARY PRECISION INSTRUMENTS UK LTD L Hug No. 1043810 VAT Ma 704 03S7 BA | | |
| | | |
| | | | | | | | | | | | | | | | | | |
