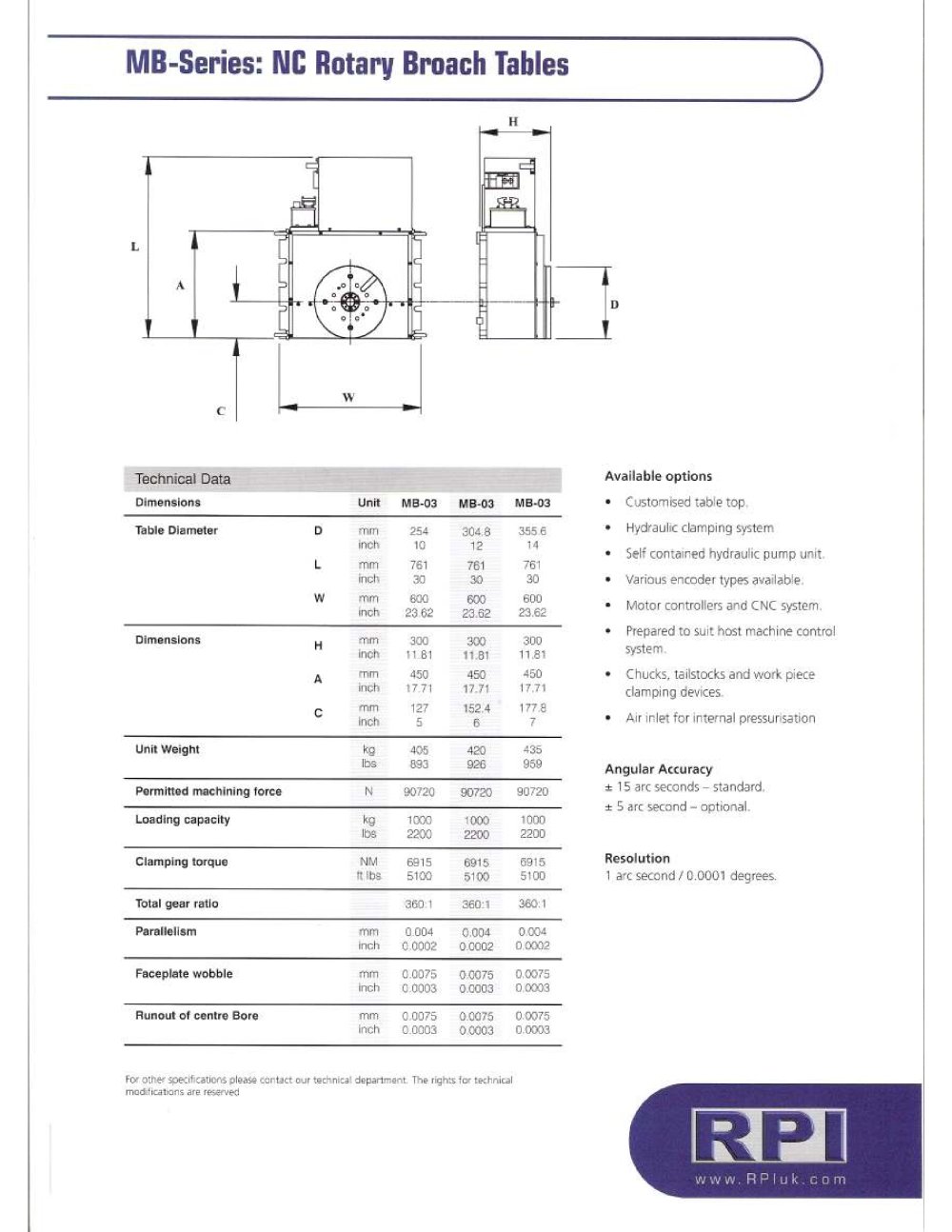

MB-Series: NC Rotary Broach Tables

H


						•4-»
	T
	A		— J	■iato %X-«.	1		1 I l_
		b I-■_«3	1		1 1		r

Available options

• Customised table top

• Hydraulic vice system

• Self contained hydraulic pump manufacturers unit.

• Various encoder types available.

• Motor controllers and CNC system.

• Prepared to suit host machine control system.

• Chucks, tailstocks and work piece clamping units

• Air inlet for internal pressurisation

Technical Data


	Dimensions		Unit	MB-03	MB-03	MB-03
	Table Diameter	D	mm Inch	254 10	304.8 12	355 6 14
		L	mm inch	761 30	761 30	761 30
		W	mm inch	600 23 62	600 23.62	600 23.62
	Dimensions	H	mm inch	300 11 81	300 11.81	300 11.81
		A	mm inch	450 17.71	450 1771	450 17.71
		C	mm inch	127 5	152.4 6	177.3 7"
	Unit Weight		1	405 893	420 926	435 959
	Permitted machining force		N	90720	90720	90720
	Loading capacity		kg lbs	1000 2200	1000 2200	1000 2200
	Clamping torque		NM ft ibs	6915 5100	6915 5100	0915 5100
	Total gear ratio			360 1	360:1	360:1
	Parallelism		mm inch	0.004 0-0002	0.004 0.0002	0.004 0.0002
	Faceplate wobble		mm inch	0.0075 0-0003	0.0075 O.0003	0.0075 00303
	Runout of centre Bore		mm Inch	0.0075 0.0003	0.0075 0.0003	00075 00003

Angular Accuracy

± 15 arc seconds - standard. ± B arc second - optional.

Resolution

1 arc second/0.0001 degrees.

Fc Otoe* specification pleaw contact our technical department The rights for technical modl(cations are reserved

www. RPIuk.com
