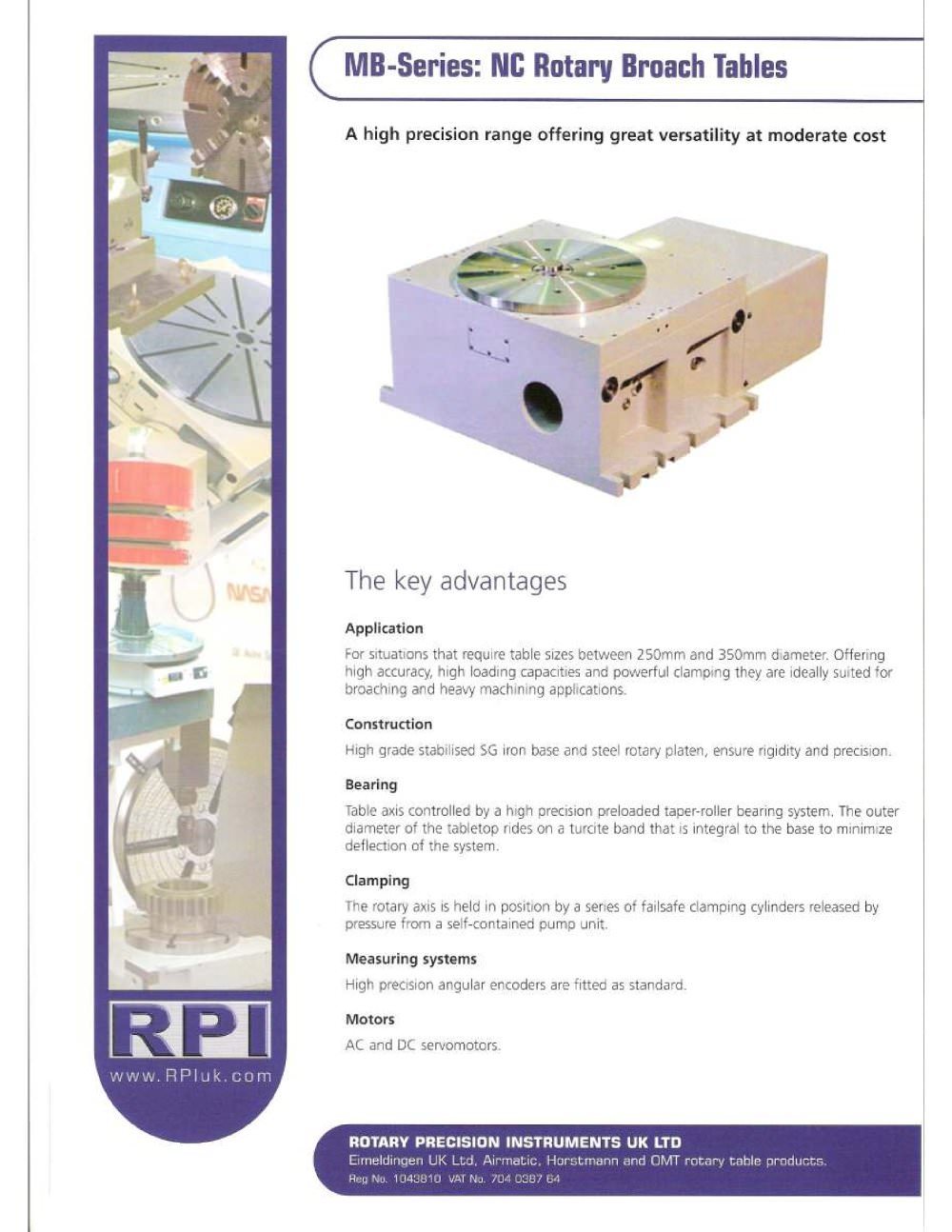

| Application For situations that require table sizes between 250mm and 350mm diameter. Offering high accuracy, high loading capacities and powerful clamping they are ideally suited for broaching and heavy machining applications. Construction High grade stabilised SG iron base and steel rotary platen, ensure rigidity and precision. Bearing Table axis controlled by a high precision preloaded taper-roller bearing system. The outer diameter of the tabletop rides on a turcite band that is integral to the base to minimize deflection of the system. Clamping The rotary axis is held in position by a series of failsafe damping cylinders released by pressure from a self-contained pump unit. Measuring systems High precision angular encoders are fitted as standard. Motors AC and DC servomotors. |
