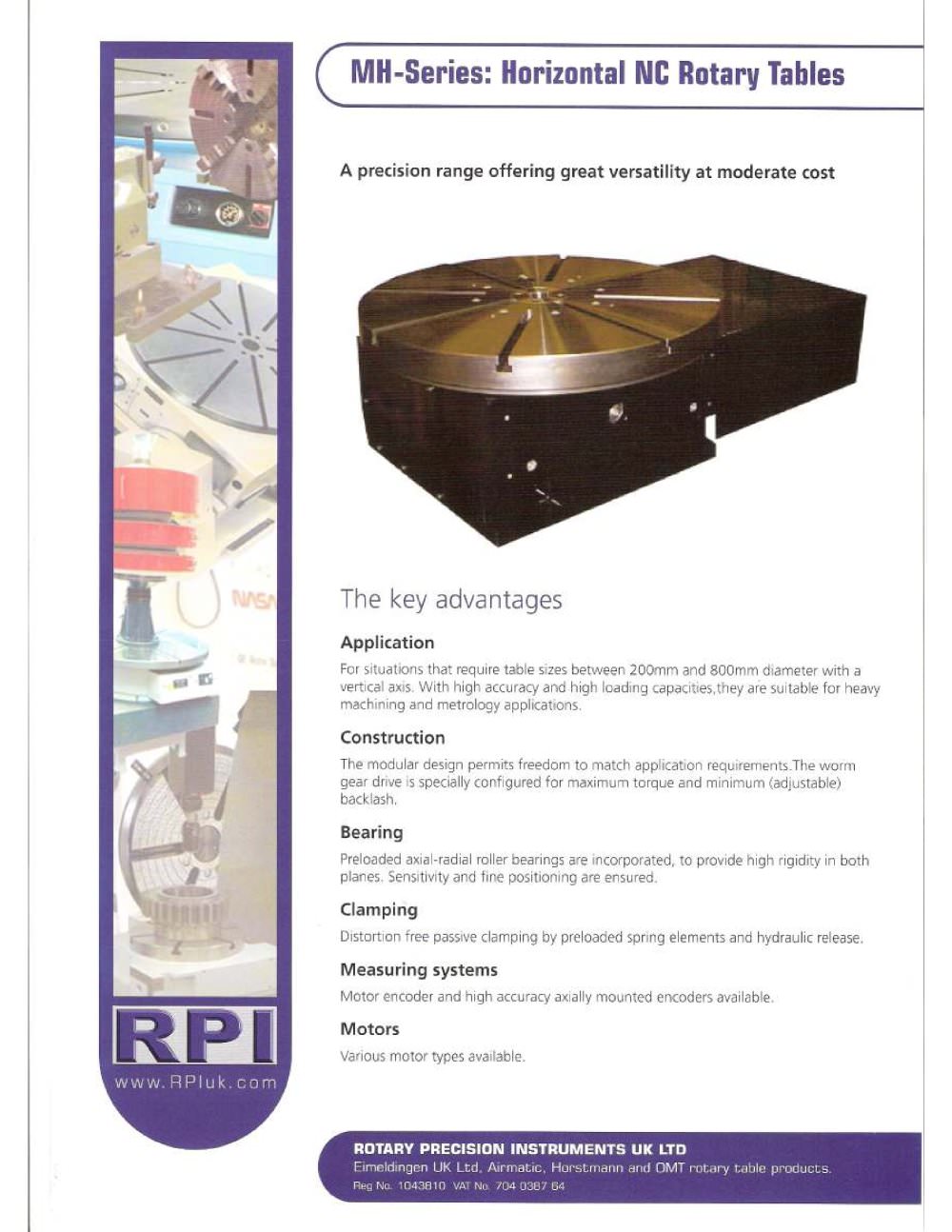

		f MH-Series: Horizontal NC Industrial rotary tables

				A precision range offering great versatility at moderate cost

					The key advantages Application For situations that require table sizes between 20Ornm and 800mm diameter with a vertical axis. With high accuracy and high loading capacities.they are suitable for heavy machining and metrology applications. Construction The modular design permits freedom to match application requirements.The worm pinion dnve is specially configured for maximum torque and minimum (adjustable) backlash. Bearing Preloaded axial-radial industrial roller bearings are incorporated, to provide high rigidity in both planes. Sensitivity and fine positioning are ensured. Clamping Distortion free passive clamping by preloaded spring elements and hydraulic release. Measuring systems Motor encoder and high accuracy axially mounted encoders available Motors Various motor types available.

			T ROTARY PRECISION INSTRUMENTS UK LTD Eimeldmgcn UK Ltd. Armatic, Hurstmann and OMT rotary table products. Reg No. 1043810 VAT No 704 0387 64
