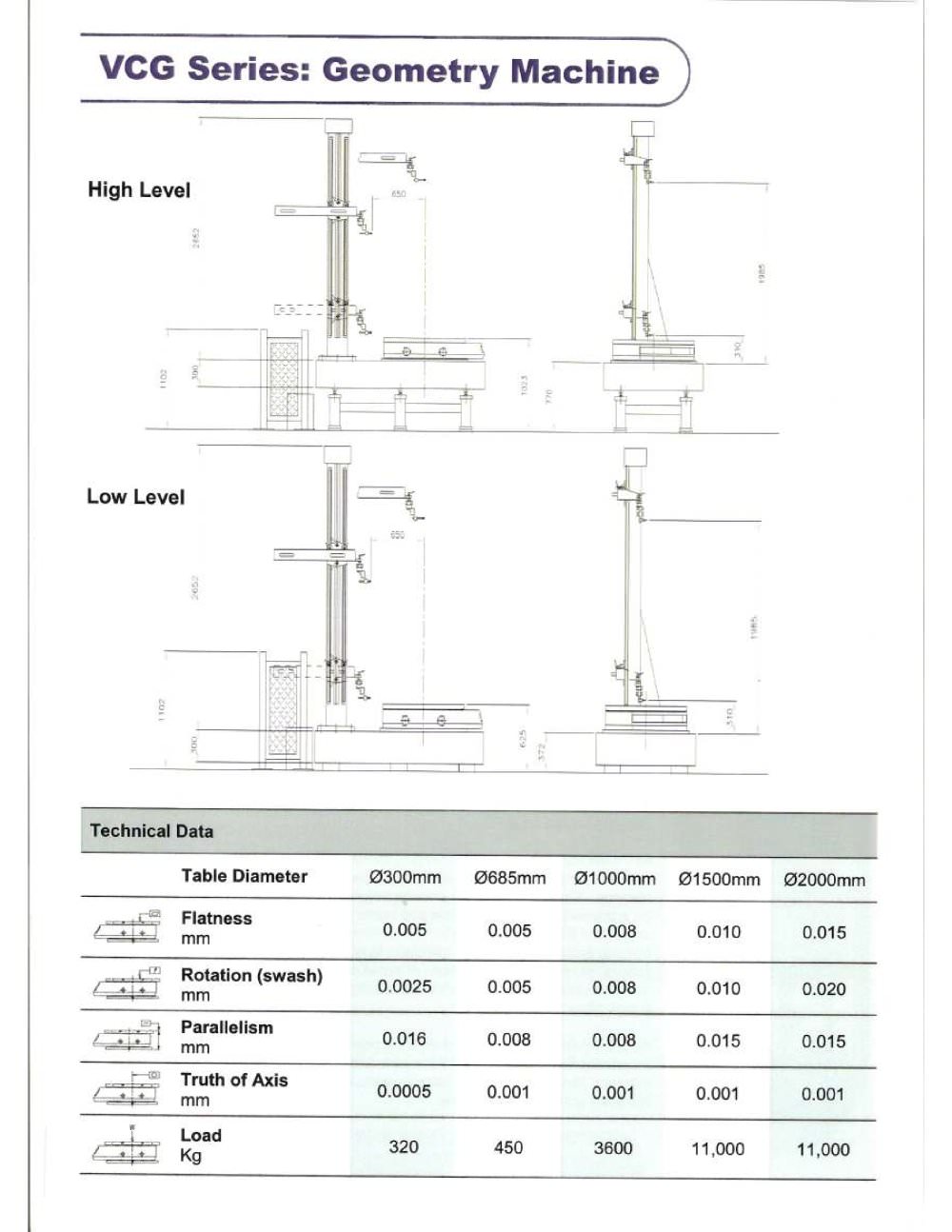

VCG Series: Geometry Machine


	Technical Data
		Table Diameter	0300mm	0685mm	01000mm	01500mm	02000mm
		Flatness mm	0.005	0.005	0.008	0.010	0.015
		Rotation (swash) mm	0.0025	0.005	0.008	0.010	0.020
	:	Parallelism mm	0.016	0.008	0.008	0.015	0.015
	f—(0)	Truth of Axis	0.0005	0.001	0.001	0.001	0.001
		mm	0.0005	0.001	0.001	0.001	0.001
	■	Load	320	450	3600	11,000	11.000
	' ....	Kg	320	450	3600	11,000	11.000
	,--» —	Kg
