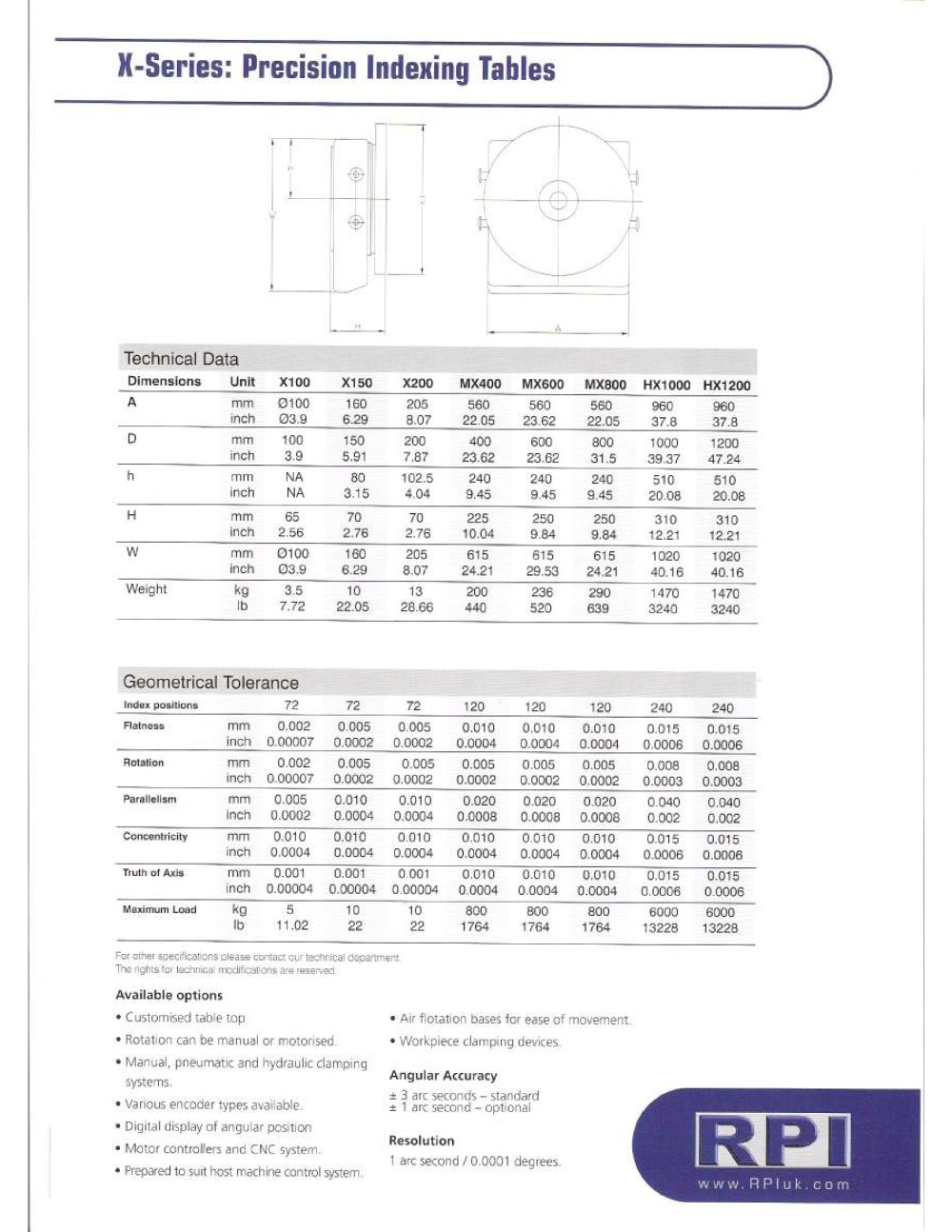

X-Series: Precision Indexing Tables



	J		.1

Technical Data


	Dimensions	Unii	X100	X150	X200	MX400	MX 600	MX800	HX1000	HX1200
	A	mm	0100	160	205	560	560	560	960	960
		Inch	039	6.29	807	22.05	23 62	22.05	37.8	37.8
	D	mm	100	150	200	400	600	800	1000	1200
		inch	3.9	5.91	7.87	23-62	23.62	31.5	39.37	47.24
	h	mm	NA	80	102.5	240	240	240	510	510
		inch	NA	3.15	¿04	9.45	9 4'i	9.45	20.08	20.08
	H	mm	65	70	70	22i	250	250	310	310
		inch	2.56	2 76	2.76	10.04	9 84	9.84	12.21	1221
	w	mm	0100	160	205	615	615	615	1020	1020
		inch	03.9	6.29	a 07	24.21	29 53	24.21	40.16	40.16
	Weight	kg	3.5	10	13	200	236	290	1470	1470
		lb	7.72	22.05	28.66	440	520	639	3240	3240

Geometrical Tolerance


	index positions		72	72	72	120	120	120	240	240
	Flatness	mm	0.002	0.005	0.005	0.010	0.010	0.010	0.015	0.015
		Inch	0.00007	0.0002	0.0002	0.0004	0.0004	0.0004	0.0006	0.0006
	Rotation	mm	0.002	0.005	0.005	0.005	0.005	0.005	0.008	0.008
		inch	0.00007	0.0002	0.0002	0.0002	0.0002	0.0002	0.0003	0.0003
	Parallelism	mm	0.005	0.010	0.010	0.020	0.020	0.020	0.040	0.040
		Inch	0.0002	0.0004	0.0004	0.0008	0.0008	0.0008	0.002	0 002
	Concentricity	mm	0.010	0.010	0.010	0.010	0010	0010	0.015	0.015
		inch	00004	0.0004	00004	0.0004	0.0004	0.0004	0.0006	0.0006
	Truth ot Axis	mm	0.001	0.001	0.001	0.010	0.010	0.010	0.015	0.015
		inch	0 00004	0.00004	0.00004	0.0004	0.0004	0.0004	0.0006	0.0006
	Maximum Load	kg	5	10	10	800	800	800	6000	6000
		lb	11.02	22	22	1764	1764	1764	13228	13228

=or amer soeo- car ors cium ccrtac ou technical MpMfiM Tho "grtsfcrtxrmca mocfcf catC* are reserved

Available options

• Customised table top

• Rotation can be manual or motonsod.

• Manual, pneumatic and hydraulic clamping systems.

• Various encoder types available

• Digital display of angular position

• Manufacturers of motor controllers and CN system.

• Prepared to smi host rnxNnje control system

• Air flotation bases for ease of movement

• Woikpiccc clomping devices

Angular Accuracy

* 3 arc seconds - standard

* 1 arc second - optional

Resolution

1 arc second / 0.0031 degrees

RPI

www.RPIuk.com
