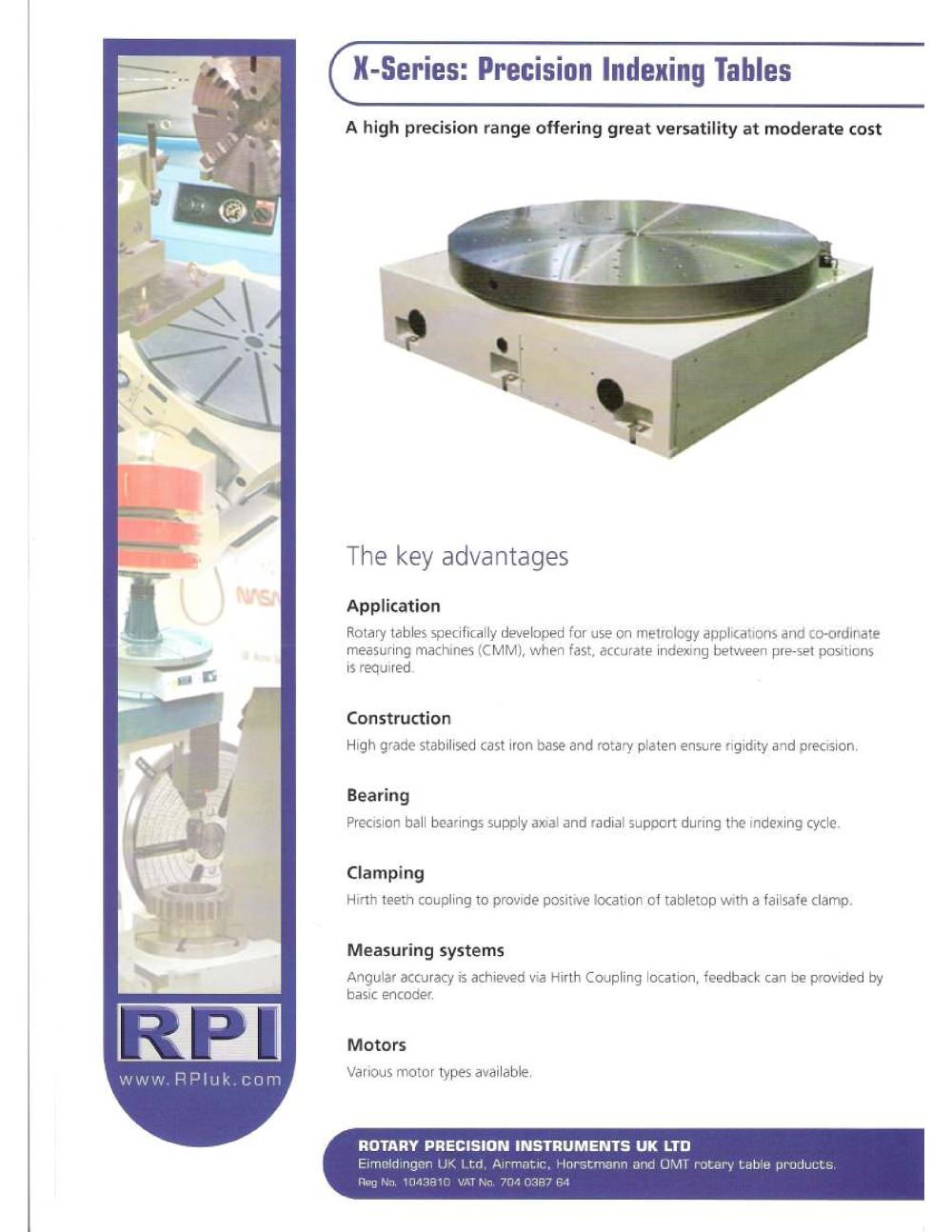

			(^K-Series: Precision Indexing Tables A high precision range offering great versatility at moderate cost

				The key advantages Application Industrial rotary tables specifically developed for use on metrology applications and co-ordinate measuring machines manufacturers (CMM), when fast, accurate indexing between pre-set positions is required Construction High grade stabilised cast iron base and rotary platen ensure rigidity and precision.

				Bearing Accuracy ball bearings supply axial and radial support during the indexing cycle. Clamping Hirth teeth coupling to provide positive location of tabletop with a failsafe clamp. Measuring systems Angular accuracy is achieved via Hirth coupling location, feedback can be provided by basic encoder.

				Motors Various motor types available.

		r ROTARY PRECISION INSTRUMENTS UK LTD Eimoldingen UK Ltd, Airmatic, Horstmann and OMT rotary table products. Reg No. 1043810 VAT No, 704 038? 64
