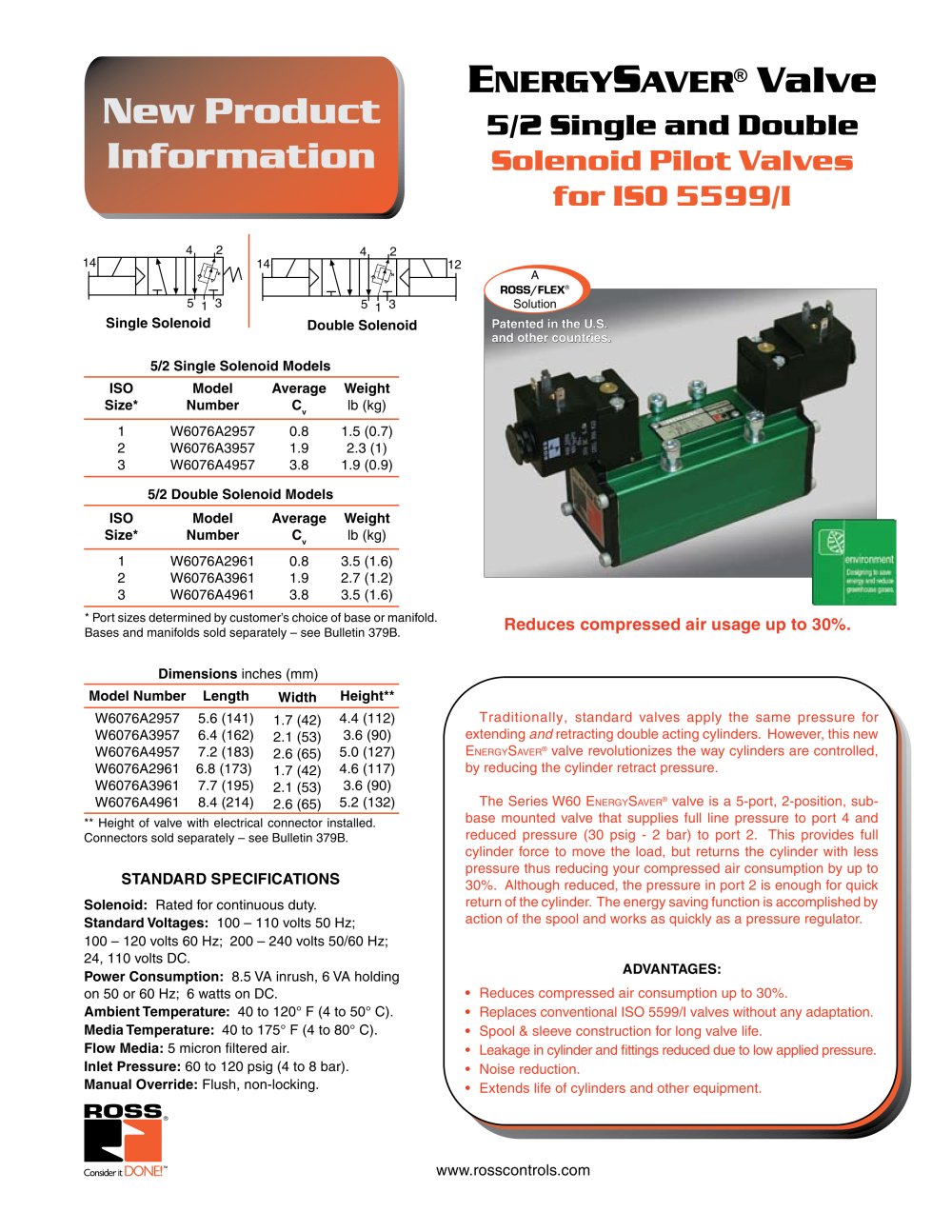

New Product

Information

EnergySaver® Valve

5/2 Single and Double Solenoid Pilot Valves for ISO 5599/I

4 ,2

ross/flex®

Solution

Patented in the U.S.| and other countries.

5 1 3 Single Solenoid

5 i 3 Double Solenoid

5/2 Single Solenoid Models


ISO	Model	Average	Weight
Size*	Number	__ç_	lb (kg)
	W6076A2957	08	15 (07)
2	W6076A3957	1.9	2.3 (1)
3	W6076A4957	3.8	1.9 (0.9)
5/2 Double Solenoid Models
ISO	Model	Average	Weight
Size*	Number		lb (kg)
1	W6076A2961	0.8	3.5 (1.6)
2	W6076A3961	1.9	2.7 (1.2)
3	W6076A4961	3.8	3.5 (1.6)

* Port sizes determined by customer's choice of base or manifolc Bases and manifolds sold separately - see Bulletin 379B.

Reduces compressed air usage up to 30%.

Dimensions inches (mm)


Model Number	Length		Width		Height**
W6076A2957	5.6	(141)	1.7	(42)	4.4 (112)
W6076A3957	6.4	(162)	2.1	(53)	3.6 (90)
W6076A4957	7.2	(183)	2.6	(65)	5.0 (127)
W6076A2961	6.8	(173)	1.7	(42)	4.6 (117)
W6076A3961	7.7	(195)	2.1	(53)	3.6 (90)
W6076A4961	8.4	(214)	2.6	(65)	5.2 (132)

Traditionally, standard valves apply the same pressure for extending and retracting double acting cylinders. However, this new EnergySaver® valve revolutionizes the way cylinders are controlled, by reducing the cylinder retract pressure.

The Series W60 EnergySaver® valve is a 5-port, 2-position, subbase mounted valve that supplies full line pressure to port 4 and reduced pressure (30 psig - 2 bar) to port 2. This provides full cylinder force to move the load, but returns the cylinder with less pressure thus reducing your compressed air consumption by up to

30%. Although reduced, the pressure in port 2 is enough for quick return of the cylinder. The energy saving function is accomplished by action of the spool and works as quickly as a pressure regulator.

** Height of valve with electrical connector installed. Connectors sold separately - see Bulletin 379B.

STANDARD SPECIFICATIONS

Solenoid: Rated for continuous duty. Standard Voltages: 100 - 110 volts 50 Hz; 100 - 120 volts 60 Hz; 200 - 240 volts 50/60 Hz; 24, 110 volts DC.

Power Consumption: 8.5 VA inrush, 6 VA holding

on 50 or 60 Hz; 6 watts on DC.

Ambient Temperature: 40 to 120° F (4 to 50° C).

Media Temperature: 40 to 175° F (4 to 80° C).

Flow Media: 5 micron filtered air.

Inlet Pressure: 60 to 120 psig (4 to 8 bar).

Manual Override: Flush, non-locking.

■

ADVANTAGES:

Reduces compressed air consumption up to 30%. Replaces conventional ISO 5599/I valves without any adaptation. Spool & sleeve construction for long valve life. Leakage in cylinder and fittings reduced due to low applied pressure. Noise reduction.

tends life of cylinders and other equipment.

■

Consider it

3NB"
