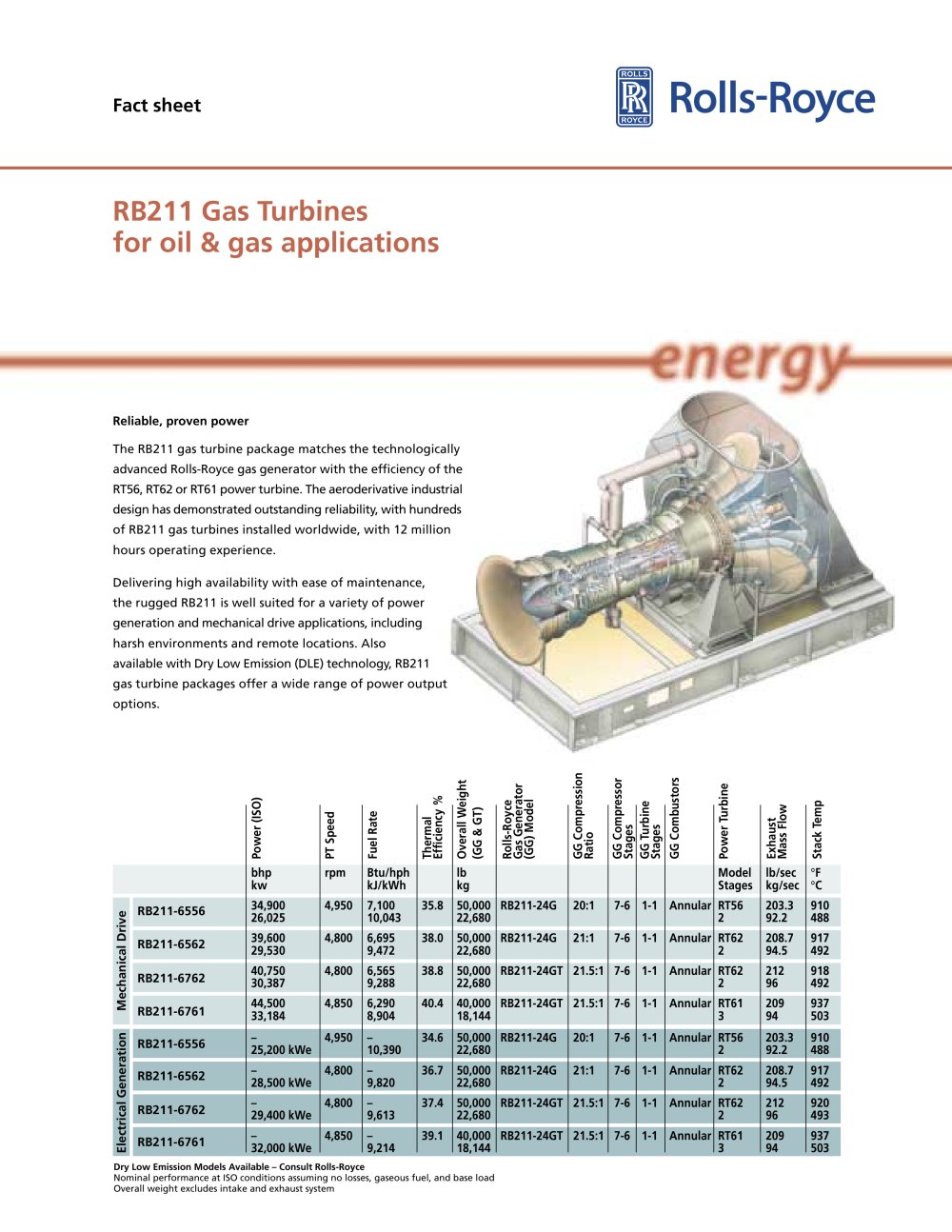

Rolls-Royce

Fact sheet

RB211 Gas Turbines

for oil & gas applications

energ

Reliable, proven power

The RB211 gas turbine package matches the technologically advanced Rolls-Royce gas generator with the efficiency of the RT56, RT62 or RT61 power turbine. The aeroderivative industrial design has demonstrated outstanding reliability, with hundreds of RB211 gas turbines installed worldwide, with 12 million hours operating experience.

Delivering high availability with ease of maintenance, the rugged RB211 is well suited for a variety of power generation and mechanical drive applications, including harsh environments and remote locations. Also available with Dry Low Emission (DLE) technology, RB211 gas turbine packages offer a wide range of power output options.

Power (ISO)

PT Speed

Fuel Rate

Thermal Efficiency %

Overall Weight (GG & GT)

Rolls-Royce Gas Generator (GG) Model

GG Compression Ratio

GG Compressor Stages

GG Turbine Stages

GG Combustors

Power Turbine

Exhaust Mass Flow

Stack Temp

bhp kw

rpm

Btu/hph kJ/kWh

lb kg

Model Stages

lb/sec

kg/sec

°F °C

Mechanical Drive

RB211-6556

34,900 26,025

4,950

7,100 10,043

35.8

50,000 22,680

RB211-24G

20:1

7-6

1-1

Annular

RT56 2

203.3 92.2

910 488

RB211-6562

39,600 29,530

4,800

6,695 9,472

38.0

50,000 22,680

RB211-24G

21:1

7-6

1-1

Annular

RT62 2

208.7 94.5

917 492

RB211-6762

40,750 30,387

4,800

6,565

9,288

38.8

50,000

22,680

RB211-24GT

21.5:1

7-6

1-1

Annular

RT62

212

918

492

RB211-6761

44,500 33,184

4,850

6,290 8,904

40.4

40,000 18,144

RB211-24GT

21.5:1

7-6

1-1

Annular

RT61 3

209 94

937 503

Electrical Generation

RB211-6556

25,200 kWe

4,950

10,390

34.6

50,000 22,680

RB211-24G

20:1

7-6

1-1

Annular

RT56 2

203.3 92.2

910 488

RB211-6562

28,500 kWe

4,800

9,820

36.7

50,000 22,680

RB211-24G

21:1

7-6

1-1

Annular

RT62 2

208.7 94.5

917 492

RB211-6762

29,400 kWe

4,800

9,613

37.4

50,000 22,680

RB211-24GT

21.5:1

7-6

1-1

Annular

RT62 2

212 96

920 493

RB211-6761

32,000 kWe

4,850

9,214

39.1

40,000 18,144

RB211-24GT

21.5:1

7-6

1-1

Annular

RT61 3

209 94

937 503

Dry Low Emission Models Available - Consult Rolls-Royce

Nominal performance at ISO conditions assuming no losses, gaseous fuel, and base load Overall weight excludes intake and exhaust system
