| Jl | |||||||||||||||||||||||||

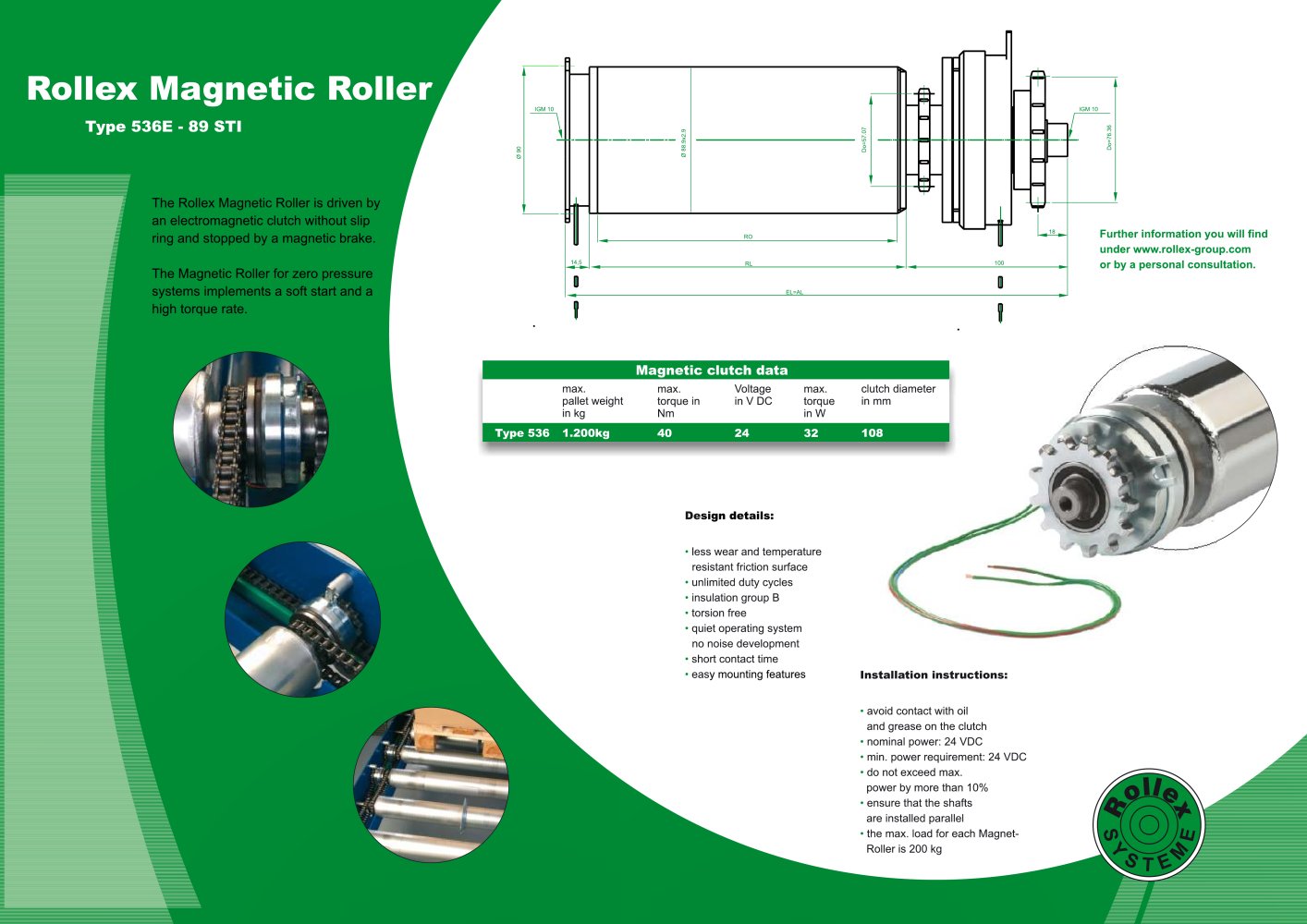

| Ilex Magnetic Roller Type 536E - 89 STI i | |||||||||||||||||||||||||
| The Rollex Magnetic Roller is driven by an electromagnetic clutch without slip ring and stopped by a magnetic brake. The Magnetic Roller for zero pressure systems implements a soft start and a high torque rate. | |||||||||||||||||||||||||
| Further information you will find under www.rollex-group.com or by a personal consultation. | |||||||||||||||||||||||||
| Magnetic clutch dat | |||||||||||||||||||||||||
| clutch diameter in mm | |||||||||||||||||||||||||
| max. Voltage max. torque in in V DC torque Nm in W | |||||||||||||||||||||||||
| max. pallet weight in kg | |||||||||||||||||||||||||
| Type 536 1.200kg | |||||||||||||||||||||||||
| Design details: • less wear and temperature resistant friction surface • unlimited duty cycles • insulation group B • torsion free • quiet operating system no noise development • short contact time • easy mounting features | |||||||||||||||||||||||||
| Installation instructions: • avoid contact with oil and grease on the clutch • nominal power: 24 VDC • min. power requirement: 24 VDC • do not exceed max. power by more than 10% • ensure that the shafts are installed parallel • the max. load for each Magnet-Roller is 200 kg | |||||||||||||||||||||||||
