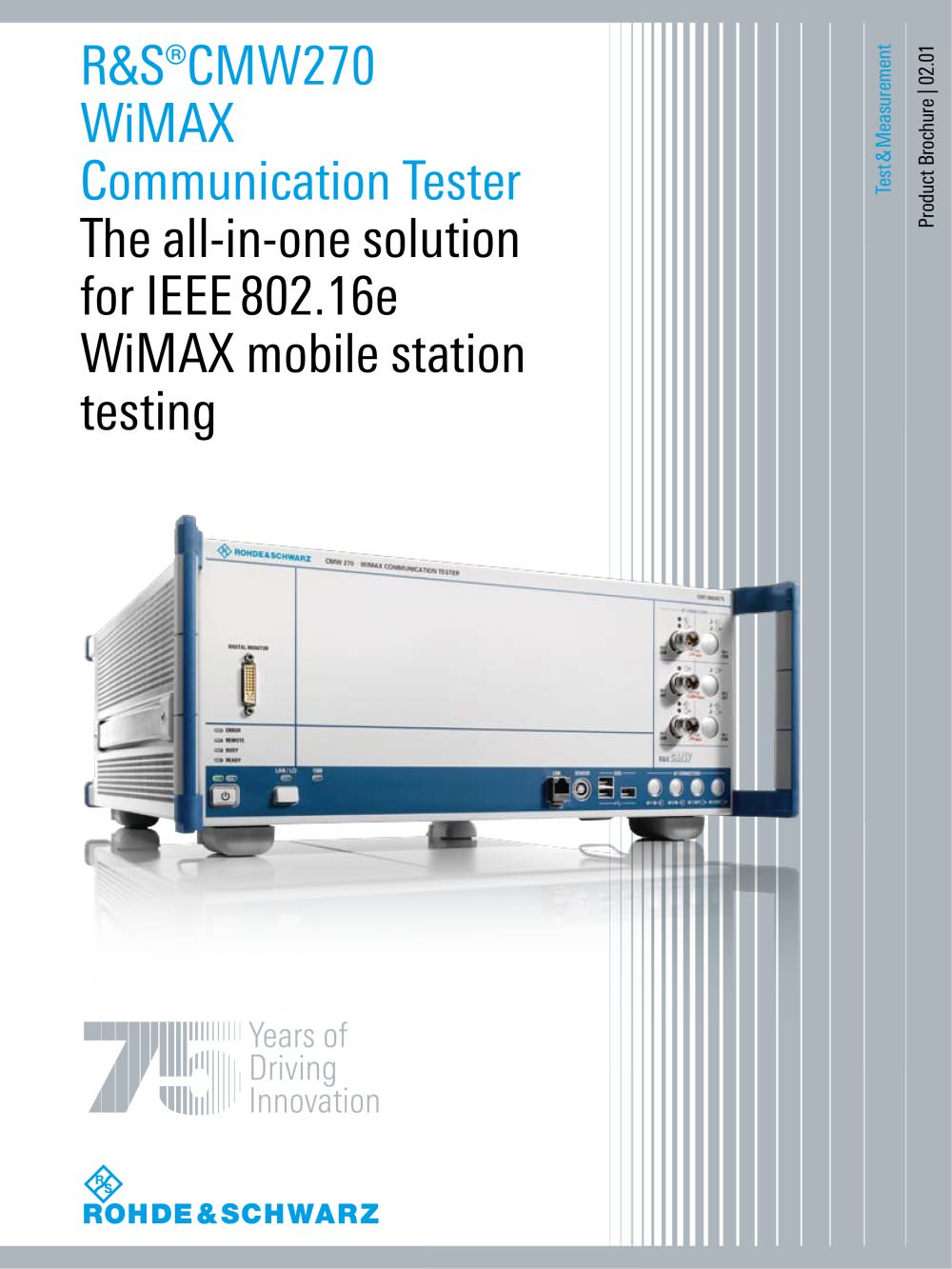

Test & MeasurementProduct Brochure | 02.01 >
Open the catalog to page 1The R&SήCMW270 allows you to select only the options you require − from the non-signaling mode for high-speed RF alignment in production up to the signaling mode with a base station emulator for testing mobile devices in simu- lated network conditions. Moreover, you can keep your test costs to a minimum owing to the scalability, test speed, measurement repeat-ability, and accuracy of the R&SCMW270.Continuous frequency range for all WiMAX band classes > J up to 6 GHz > J Realtime signaling to verify network entry and functional performance, plus a message logger Vector signal analyzer (VSA)...
Open the catalog to page 2solutions Maximum test reliability: mobile station test in full signaling mode Verification and logging of not just RF parameters, but also protocol functions in the MAC layer Test signal quality that far exceeds that of golden device page 4 Reduced test costs: RF alignment up to ten times faster Simultaneous transmitter and receiver measurements for maximum parallel testing plus the R&SήSmart Alignment concept drastically reduce test time page 6 High yield in production and simplified test setup Minimum uncertainty and maximum repeatabilityWide RF input and output dynamic range as well as...
Open the catalog to page 3Realtime signaling allows you to optionally test the full functionality of a mobile station like in mobile WiMAX network operation, e.g. synchronization, ranging, and registration. The RF parameters of the WiMAX mobile station in the physical layer (PHY) and the protocol functions in the MAC layer are concurrently verified under realistic conditions. You can thus detect complex errors such as crosstalk between the transmit and receive paths. Test signal quality better than with golden device solutions The R&SCMW270 provides a much more reliable alter-native to golden devices, which require...
Open the catalog to page 4Typical applications for the R&SCMW270 as a base station emulator:Design verification test in R&D > J J Regression tests in R&D > J Incoming inspection for network operators > J Final test in production, service centers, and quality assurance > J Signaling unit for WiMAX test systems, e.g. radiated performance test (RPT)The message logger pro-vides a straightforward overview of a WiMAX com- munication in an easy-to-read format Operator interface of the R&SήCMW-KS700 option for WiMAX signaling tests > Rohde & Schwarz R&SCMW270 WiMAX Communication Tester 5 size="-1">
Open the catalog to page 5The R&SCMW270 measures all TX and RX parameters essential for producing WiMAX base stations and mobile stations cost-effectively while maintaining high quality. RF alignment is performed in the non-signaling mode, and the DUT is controlled directly via a test mode interface, e.g. for setting the RF paths and downloading calibration tables. Transmitter measurements with R&SήMulti-Evaluation To reduce test time, the R&SCMW-KM700 software op- tion enables the simultaneous analysis of a wide range of TX measurements by using the R&SήMulti-Evaluation concept. Different evaluations (power,...
Open the catalog to page 6Rohde & Schwarz R&SCMW270 WiMAX Communication Tester 7 >
Open the catalog to page 7Minimum uncertainty and maximum repeatability The low level uncertainty of the R&SCMW270 provides reliable data for maximizing yield in the mass production of mobile stations. The high dynamic range of the RF input and RF output levels means that all WiMAX measure- ments can be performed without any external passive and active RF components. The RF generator typically provides less than 0.3 dB level uncertainty and a repeatability of less than 0.05 dB for WiMAX band 1.Internal temperature sensors automatically adapt the mea-surement accuracy to the ambient conditions.No calibration is...
Open the catalog to page 8The R&SήCMW270 is of modular design and can easily be expanded with additional hardware and software op- tions. The state-of-the-art instrument architecture with its WindowsXP-based controller makes the instrument easy to use.The R&SήCMW270 does not include an integrated display since the instrument is primarily used on production lines, where remote control is standard. For standalone opera- tion, the instrument includes interfaces for a monitor, key-board, and mouse. Remote control The base unit of the R&SCMW270 is equipped with a Gigabit LAN interface and a USB 2.0 interface for remote...
Open the catalog to page 10A required step in the production of WiMAX mobile and base stations is the alignment of the RF transceiver. This includes measuring and interpolating variations in the fre-quency and level characteristics in both the transmit and receive paths ֖ and storing the data in correction tables. In later operation, compliance with RF level accuracy as specified in the IEEE 802.16e standard is thus ensured. Board level test: RF alignment in non-signaling mode After the WiMAX module has been assembled, the RF transceiver is aligned at the printed board level. Owing to the wide dynamic range and the...
Open the catalog to page 12Frequency range R&SCMW27070 MHz to 6 GHz Max. frequency drift R&SήCMW270 base unit 1 ї 10 > 6 with R&S֮CMW-B690A option (OCXO extension)5 ї 10 > 8 with R&S֮CMW-B690B option (highly stable OCXO extension)5 ї 10 > 9 <0.8 dB (calibration interval 2 years)IF bandwidth RF output level rangecontinuous wave (CW)RF1 OUT, WiMAX band 1֖130 dBm to +8 dBmOutput level uncertaintyin temperature range +20 C to +35 аCno overranging output level >120 dBm<0.6 dB (calibration interval 1 year) 70 MHz > RF input level range, RF1 COM, RF2 COM continuous power (CW)֖84 dBm to +34 dBmLevel uncertainty, RF1 COM, RF2...
Open the catalog to page 13WiMAX Communication TesterFrequency range: 70 MHz to 6.0 GHz R&SCMW270 1201.0002K75ConfigurationHardware optionsArbitrary Waveform GeneratorR&SήCMW-B110A1202.5508.02Signaling Unit UniversalR&SCMW-B200A1202.6104.02WiMAX Extension Module for R&SήCMW-B200A OptionR&SCMW-B270A1202.6504.02OCXO ModuleR&SήCMW-B690A1202.5908.02OCXO Module (highly stable) R&SCMW-B690B1202.6004.02IEEE Bus Interface Module (single connector)R&SήCMW-B612A1202.5608.02Software options TX Measurement, Mobile WiMAX (IEEE 802.16e)R&SCMW-KM7001202.6604.02Signaling (base station emulation) Mobile WiMAX (IEEE...
