R&S®NRP Power Meter - 1

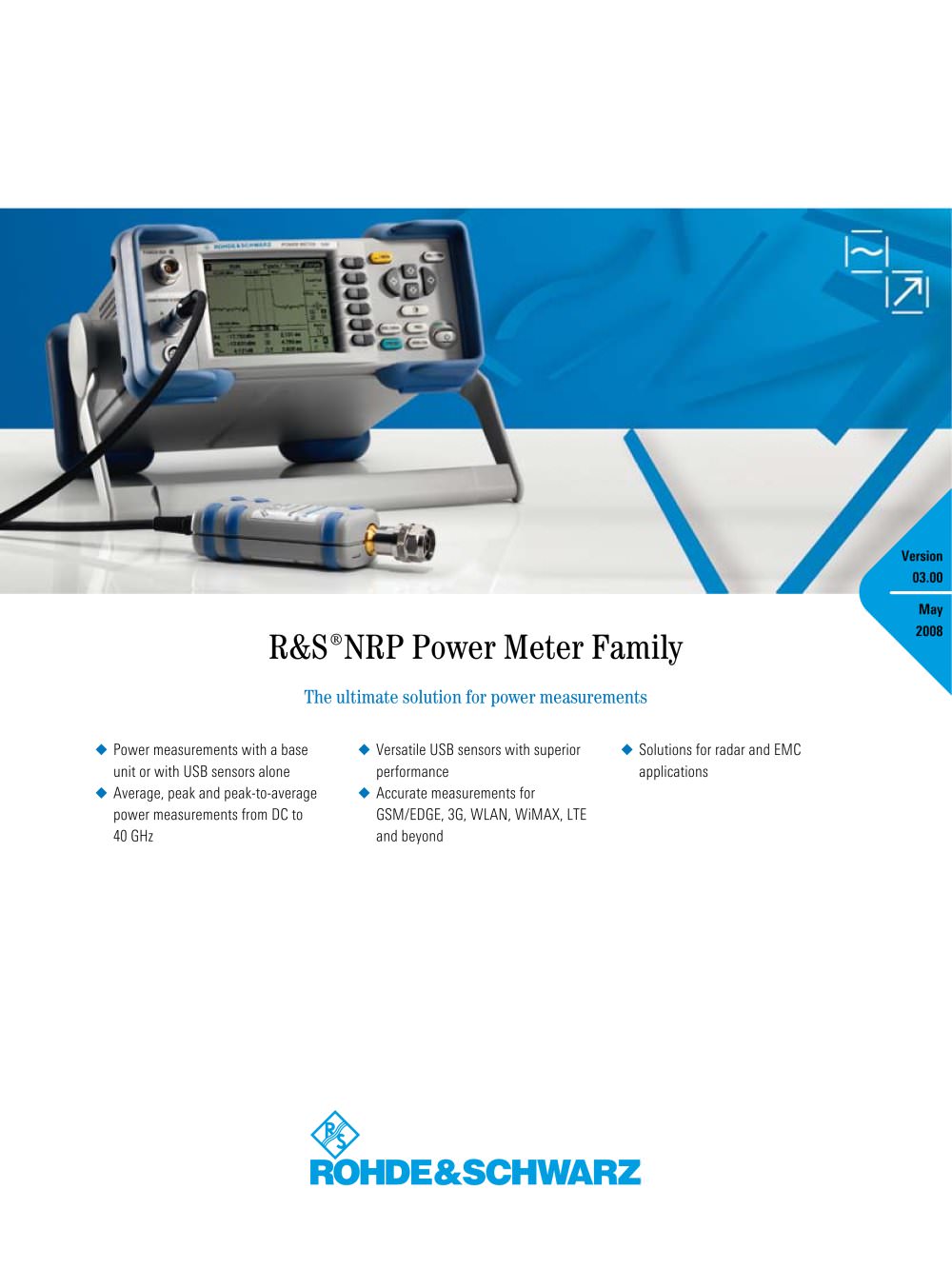

Version 03.00 ¸NRP Power Meter Family The ultimate solution for power measurements ◆◆ Power measurements with a base unit or with USB sensors alone ◆◆ Average, peak and peak-to-average power measurements from DC to 40 GHz ◆◆ Versatile USB sensors with superior performance ◆◆ Accurate measurements for GSM/EDGE, 3G, WLAN, WiMAX, LTE and beyond ◆◆ Solutions for radar and EMC a ­ pplications May 2008

Open the catalog to page 1
R&S®NRP Power Meter - 2

The ¸NRP family Accurate determination of RF power is one of the most challenging tasks in the field of electrical test and measurement. No matter whether an application involves characterizing the RF components used in mobile communications equipment, for example, or assessing the transmit power of complex radar systems, base stations or mobile telephones, there is always a need to measure RF power as accurately as possible. This includes applications in R & D, production and maintenance as well as in calibration laboratories. The ¸NRP family is ideal for such applications. In addition to...

Open the catalog to page 2
R&S®NRP Power Meter - 3

◆◆ ¸Smart Sensor TechnologyTM ◆◆ ¸NRP-Z1x/-Z2x true universal­ power sensors with up to 90 dB d ­ ynamic range for CW and m ­ odulated signals ◆◆ ¸NRP-Z22/‑Z23/-Z24 high-power sensors with detachable attenuator for a wide power measurement range with only one sensor ◆◆ ¸NRP-Z9x average power sensors for measurements in the frequency range from 9 kHz to 6 GHz ◆◆ ¸NRP-Z5x thermal power sensors with outstanding accuracy (linearity uncertainty <0.02 dB) ◆◆ ¸NRP‑Z81 wideband power sensor with up to 30 MHz video bandwidth and up to 80 dB dynamic range ◆◆ Special ¸NRP-Z27/-Z37 and ¸NRP-Z28/-Z98...

Open the catalog to page 3
R&S®NRP Power Meter - 4

Versatile, user-friendly R&S®NRP base unit A state-of-the-art power meter must meet diverse requirements. In addition to excellent measurement accuracy, other requirements include suitability for the task at hand and straightforward operation. The R&S®NRP was designed to be a base unit that is as versatile and easy to operate as possible. With its ruggedized but compact design, battery supply option (R&S®NRP-B3) and low weight, the R&S®NRP is opti- mally suited for laboratory and produc- tion applications as well as mobile use. The clear menu structures and window- based operating concept...

Open the catalog to page 4
R&S®NRP Power Meter - 5

Connectivity Display of measured values Simultaneous measurements are p ­ ossible on up to four different measurement points by connecting up to four sensors (depending on the option). A trigger input also allows externally triggered, synchronous measurements. Two BNC outputs are available for status indication (e.g. limit monitoring). The E ­ thernet (¸NRP-B4), GPIB and USB remote-control interfaces ensure optimized integration into automated test setups. An optional sensor check source is useful for fast verification of the sensors (¸NRP-B1). Calibration of the sensors immediately prior...

Open the catalog to page 5
R&S®NRP Power Meter - 6

Intelligent sensors for every need All of the sensors of the ¸NRP family function as independent measurement instruments due to their integrated signal processing. The measured values undergo complete processing in the sensor and are output in digital format. Any additional error sources such as interference acting on the sensor's connecting cable or due to the base unit itself are consistently eliminated in the ¸NRP family owing to digital data transfer via USB. For the entire range of sensors, the ¸Smart Sensor TechnologyTM e ­ nsures top accuracy, repeatability and usability. General...

Open the catalog to page 6
R&S®NRP Power Meter - 7

¸NRP-Z9x average power sensors ¸NRP-Z91 sensor ◆◆ Specially designed for EMC applications ◆◆ 9 kHz to 6 GHz ◆◆ Measurement of continuous average power ◆◆ 90 dB dynamic range for CW and modulated signals ◆◆ Low sensitivity to harmonics ¸NRP‑Z81 wideband power sensor ¸NRP-Z81 sensor ◆◆ Frequency range 50 MHz to 18 GHz (50 MHz to 500 MHz with reduced video bandwidth) ◆◆ Peak power measurements of radar and mobile communications signals with up to 30 MHz RF video bandwidth; sensor rise time <13 ns ◆◆ Automatic burst detection and acquisition ◆◆ Ultra-fast statistical analysis (onem ­ illion...

Open the catalog to page 7
R&S®NRP Power Meter - 8

Intelligent sensors for every need ¸NRP-Z28/-Z98 level control sensors ¸NRP-Z28 sensor ◆◆ Integrated one-box solution for c ­ lassic power splitter/power sensor combination ◆◆ Special directional power sensors with integrated power splitter ◆◆ For applications requiring a precisely known level to be fed in (e.g. c ­ alibration of measuring receivers) ¸NRP-Z27/-Z37 power s ­ ensor modules ¸NRP-Z37 sensor 8 ¸NRP Power Meter Family ◆◆ Power sensors with additional RF s ­ ignal output ◆◆ Developed for use with the ¸FSMR measuring receiver ◆◆ For precise calibration of signal sources ◆◆ DC to 18...

Open the catalog to page 8
R&S®NRP Power Meter - 9

Applications and benefits Applications Selection of benefits ◆◆ Power measurements on base stations and mobile equipment ◆◆ Measurement of pulsed radar signals ◆◆ EMC applications ◆◆ Design and production of components (e.g. power amplifiers) ◆◆ Statistical analysis of signals ◆◆ Antenna measurements ◆◆ Calibration of test and measurement equipment ◆◆ External level correction for signal generators Rohde & Schwarz is the most experienced supplier of USB power sensors... ... this leads to reliable, mature and future-proof p ­ roducts and helps to reduce investment risks USB sensors without...

Open the catalog to page 9
R&S®NRP Power Meter - 10

Accurate measurement of TDMA-based signals The analysis of the TDMA-based signals encountered in GSM/EDGE, DECT and PDC, for example, is a common appli- cation for state-of-the-art power mea- sensors are very powerful tools for such work. The trace mode makes graphical analysis of any signal very straightfor- ward. The ability to easily modify the time axis plus the auto-scaling function provide useful support during in-depth analysis of relevant signal components. The special timeslot function allows simultaneous analysis of multiple equi- distant timeslots. Up to four timeslots the...

Open the catalog to page 10
