HIGH TECH IS OUR BUSINESS.

1400 mm1135 mm 900 mm
Chiller 660 mm 1400 mm 224 mm ∅ ∅ 224 mm
Ground clearance inflow: 203 mm
625 mm Position selectable OptionVacuum cleanerTube length max. 2,5 mHeight 2 mExhaust air 620 mm 1 685 mm 820 mm
3055 mm 2
2420 mm 644 mm 605 mm
Keyboard 1421 mm
1863 mm 255 mm 1450,5 mm 76 mm 968 mm 65 mm ca. 800 mm 900 mm 1261 mm 2220 mm Machine feet01 m
1

= Connections (Electric, Network)= Connections (Air)Machine height: approx. 2750 mm, weight approx. 6,2 t Connected power: 400 V / 32 APneumatic: Minimum 6,5 bar Consumption approx.: max. 400l/min

2

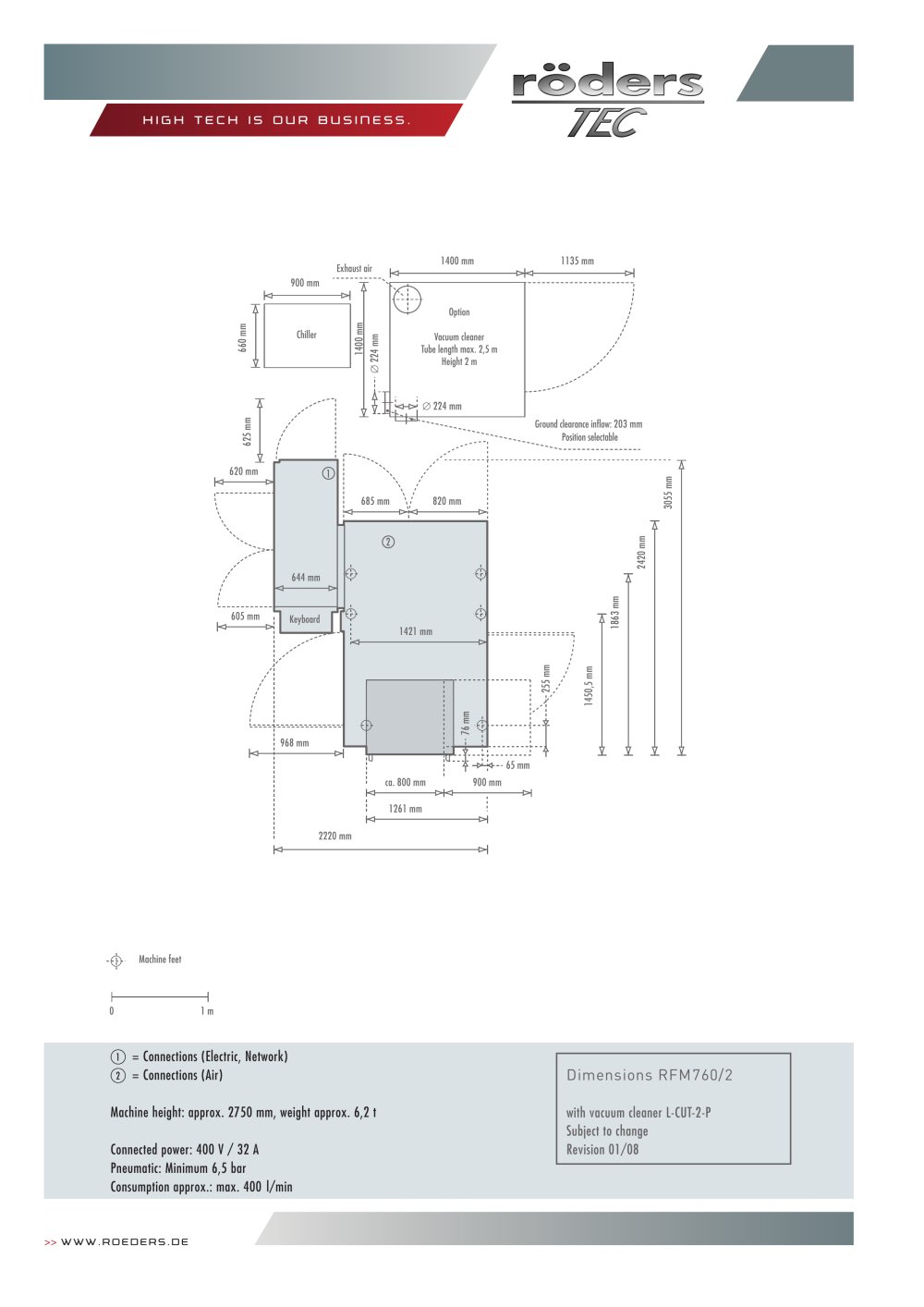

Floorplan RFM 760 - 15484 Dimensions RFM760/2

with vacuum cleaner L-CUT-2-PSubject to changeRevision 01/08
