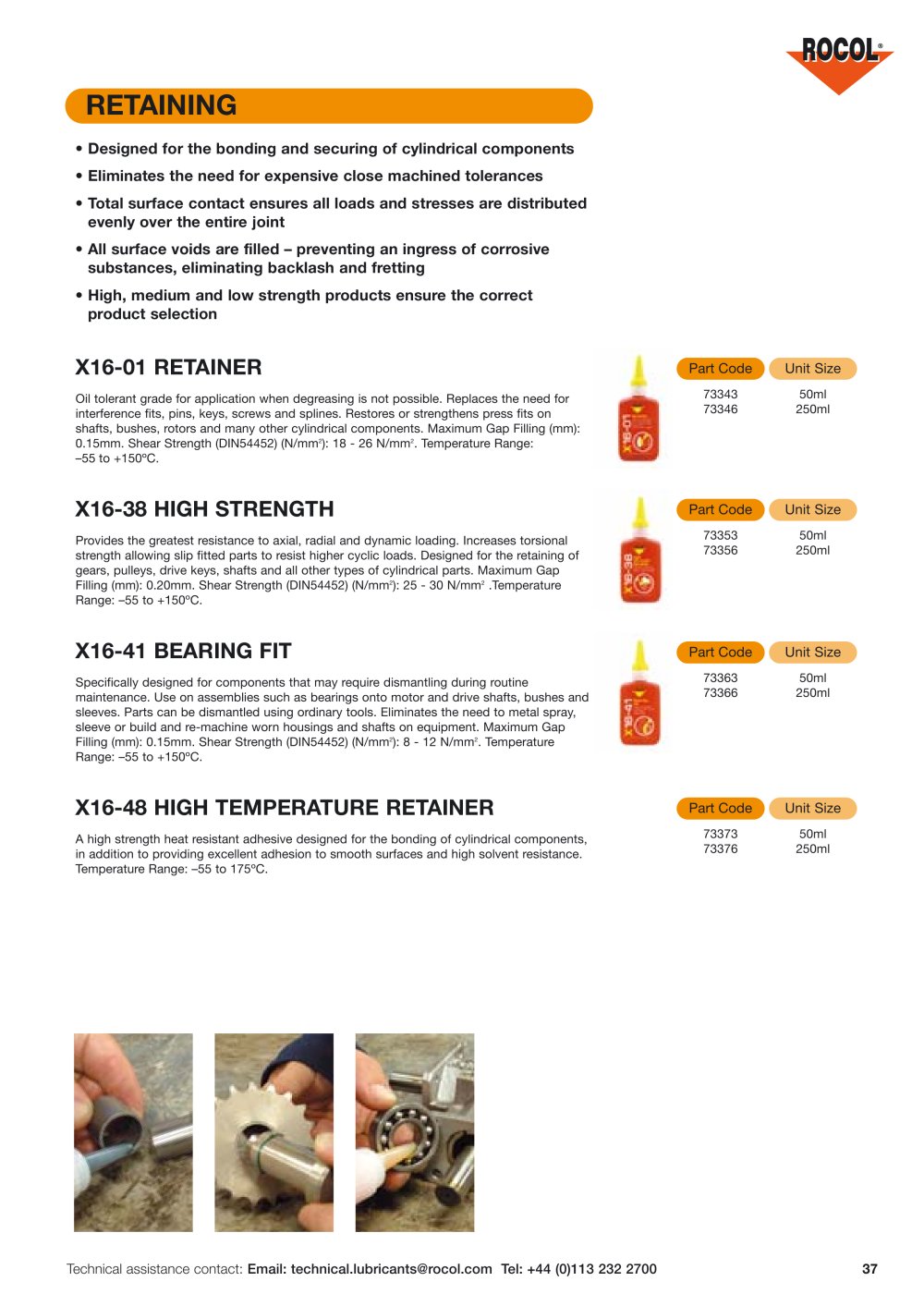

RETAINING

• Designed for the bonding and securing of cylindrical components• Eliminates the need for expensive close machined tolerances • Total surface contact ensures all loads and stresses are distributedevenly over the entire joint• All surface voids are filled – preventing an ingress of corrosivesubstances, eliminating backlash and fretting• High, medium and low strength products ensure the correctproduct selection

X16-01 RETAINER

PartCode Unit Size

Oil tolerant grade for application when degreasing is not possible. Replaces the need for interference fits, pins, keys, screws and splines. Restores or strengthens press fits on shafts, bushes, rotors and many other cylindrical components. Maximum Gap Filling (mm): 0.15mm. Shear Strength (DIN54452) (N/mm 733437334650ml250ml
2 ): 18 - 26 N/mm
2 . Temperature Range:–55to+150ºC.

X16-38 HIGH STRENGTH

PartCode Unit Size

Provides the greatest resistance to axial, radial and dynamic loading. Increases torsional strength allowing slip fitted parts to resist higher cyclic loads. Designed for the retaining of gears, pulleys, drive keys, shafts and all other types of cylindrical parts. Maximum Gap Filling (mm): 0.20mm. Shear Strength (DIN54452) (N/mm 73353 7335650ml250ml
2 ): 25 - 30 N/mm
2 .TemperatureRange: –55 to+150ºC.

X16-41 BEARING FIT

PartCode Unit Size

Specifically designed for components that may require dismantling during routine maintenance. Use on assemblies such as bearings onto motor and drive shafts, bushes and sleeves. Parts can be dismantled using ordinary tools. Eliminates the need to metal spray, sleeve or build and re-machine worn housings and shafts on equipment. Maximum Gap Filling (mm): 0.15mm. Shear Strength (DIN54452) (N/mm 73363 7336650ml250ml
2 ): 8 - 12 N/mm
2 . TemperatureRange: –55 to+150ºC.

X16-48 HIGH TEMPERATURE RETAINER

PartCode Unit Size

A high strength heat resistant adhesive designed for the bonding of cylindrical components, in addition to providing excellent adhesion to smooth surfaces and high solvent resistance. Temperature Range: –55 to 175ºC. 73373 7337650ml250ml

Technical assistance contact: Email: technical.lubricants@rocol.com Tel: +44 (0)113 232 2700 37
