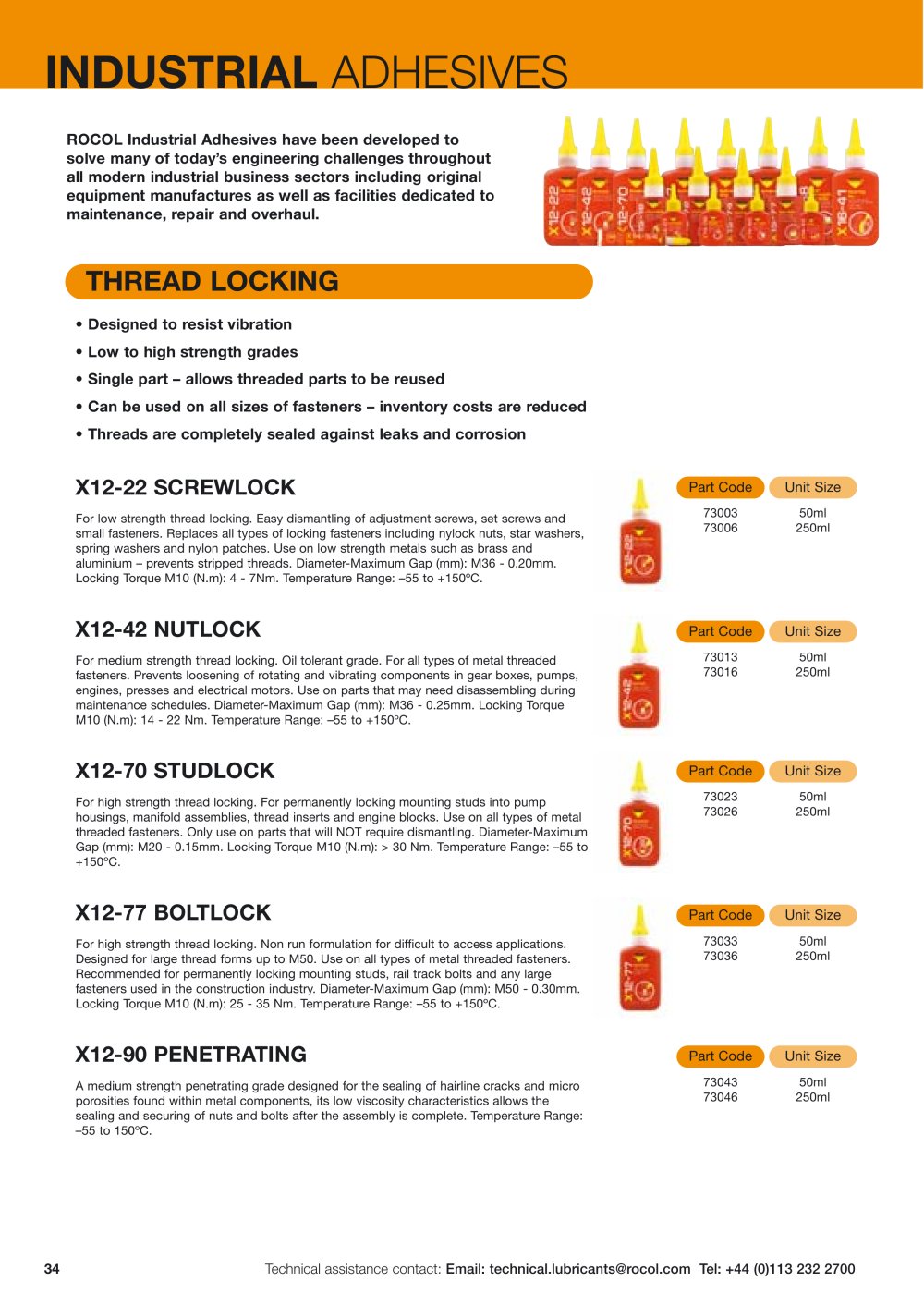

INDUSTRIAL ADHESIVES

ROCOL Industrial Adhesives have been developed to solve many of today’s engineering challenges throughout all modern industrial business sectors including original equipment manufactures as well as facilities dedicated to maintenance, repair and overhaul.

THREAD LOCKING

• Designed to resist vibration• Low to high strength grades • Single part – allows threaded parts to be reused • Can be used on all sizes of fasteners – inventory costs are reduced • Threads are completely sealed against leaks and corrosion

X12-22 SCREWLOCK

PartCode Unit Size
For low strength thread locking. Easy dismantling of adjustment screws, set screws andsmall fasteners. Replaces all types of locking fasteners including nylock nuts, star washers, spring washers and nylon patches. Use on low strength metals such as brass and aluminium – prevents stripped threads. Diameter-Maximum Gap (mm): M36 - 0.20mm. Locking Torque M10 (N.m): 4 - 7Nm. Temperature Range: –55 to +150ºC. 73003 7300650ml250ml

X12-42 NUTLOCK

PartCode Unit Size
For medium strength thread locking. Oil tolerant grade. For all types of metal threaded fasteners. Prevents loosening of rotating and vibrating components in gear boxes, pumps, engines, presses and electrical motors. Use on parts that may need disassembling during maintenance schedules. Diameter-Maximum Gap (mm): M36 - 0.25mm. Locking Torque M10 (N.m): 14 - 22 Nm. Temperature Range: –55 to +150ºC. 730137301650ml250ml

X12-70 STUDLOCK

PartCode Unit Size
For high strength thread locking. For permanently locking mounting studs into pump housings, manifold assemblies, thread inserts and engine blocks. Use on all types of metal threaded fasteners. Only use on parts that will NOT require dismantling. Diameter-Maximum Gap (mm): M20 - 0.15mm. Locking Torque M10 (N.m): > 30 Nm. Temperature Range: –55 to +150ºC. 73023 7302650ml250ml

X12-77 BOLTLOCK

PartCode Unit Size
For high strength thread locking. Non run formulation for difficult to access applications. Designed for large thread forms up to M50. Use on all types of metal threaded fasteners. Recommended for permanently locking mounting studs, rail track bolts and any large fasteners used in the construction industry. Diameter-Maximum Gap (mm): M50 - 0.30mm. Locking Torque M10 (N.m): 25 - 35 Nm. Temperature Range: –55 to +150ºC. 73033 7303650ml250ml

X12-90 PENETRATING

PartCode Unit Size
A medium strength penetrating grade designed for the sealing of hairline cracks and micro porosities found within metal components, its low viscosity characteristics allows the sealing and securing of nuts and bolts after the assembly is complete. Temperature Range: –55 to 150ºC. 73043 7304650ml250ml 34 Technical assistance contact: Email: technical.lubricants@rocol.com Tel: +44 (0)113 232 2700
