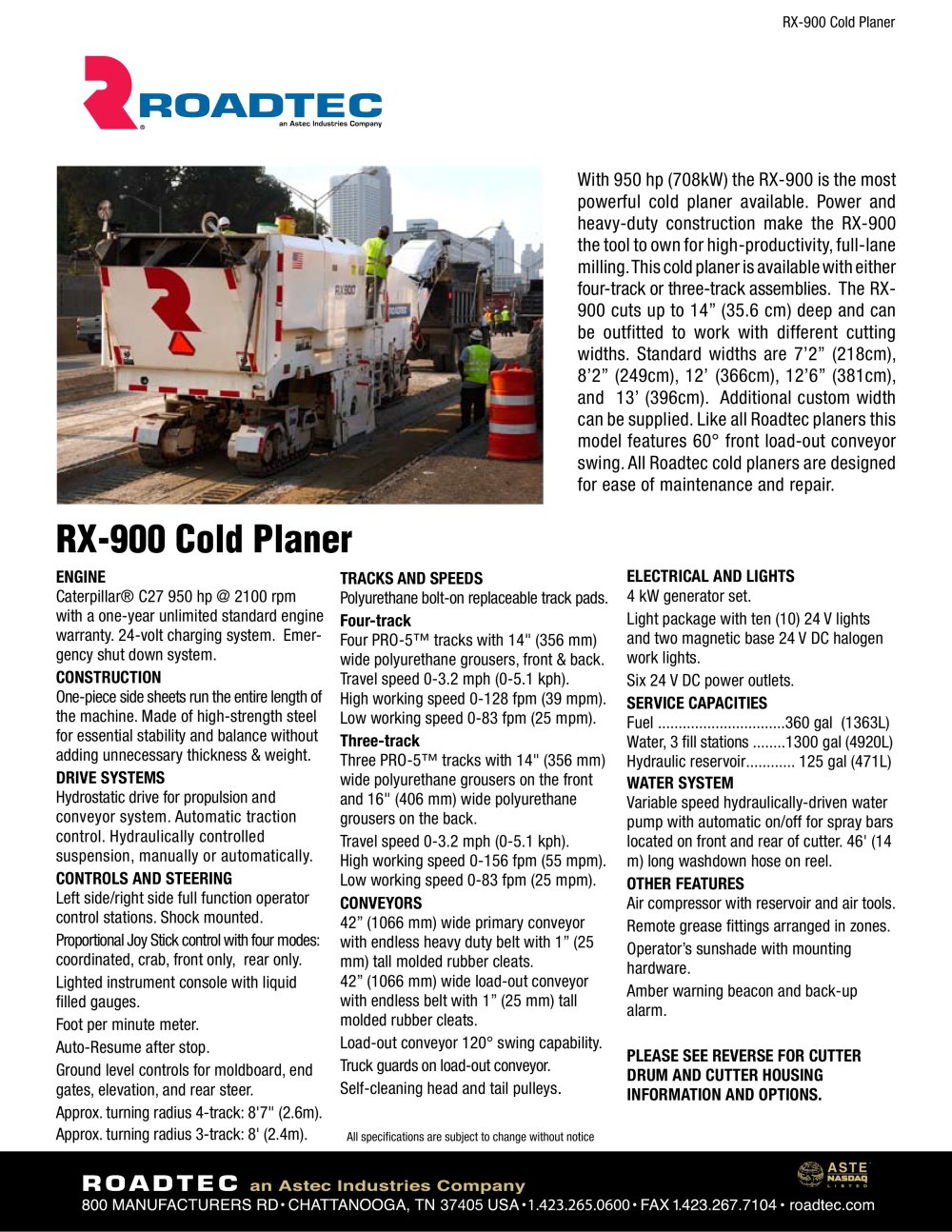

RX-900 Cold Planer With 950 hp (708kW) the RX-900 is the most powerful cold planer available. Power and heavy-duty construction make the RX-900 the tool to own for high-productivity, full-lane milling. This cold planer is available with either four-track or three-track assemblies. The RX- 900 cuts up to 14” (35.6 cm) deep and can be outfitted to work with different cutting widths. Standard widths are 7’2” (218cm), 8’2” (249cm), 12’ (366cm), 12’6” (381cm), and 13’ (396cm). Additional custom width can be supplied. Like all Roadtec planers this model features 60° front load-out conveyor swing. All Roadtec cold planers are designed for ease of maintenance and repair. All specifications are subject to change without notice RX-900 Cold Planer Engine Caterpillar® C27 950 hp @ 2100 rpm with a one-year unlimited standard engine warranty. 24-volt charging system. Emergency shut down system. Construction One-piece side sheets run the entire length of the machine. Made of high-strength steel for essential stability and balance without adding unnecessary thickness & weight. Drive Systems Hydrostatic drive for propulsion and conveyor system. Automatic traction control. Hydraulically controlled suspension, manually or automatically. Controls and Steering Left side/right side full function operator control stations. Shock mounted. Proportional Joy Stick control with four modes: coordinated, crab, front only, rear only. Lighted instrument console with liquid filled gauges. Foot per minute meter. Auto-Resume after stop. Ground level controls for moldboard, end gates, elevation, and rear steer. Approx. turning radius 4-track: 8'7" (2.6m). Approx. turning radius 3-track: 8' (2.4m). Tracks and Speeds Polyurethane bolt-on replaceable track pads. Four-track Four PRO-5™ tracks with 14" (356 mm) wide polyurethane grousers, front & back. Travel speed 0-3.2 mph (0-5.1 kph). High working speed 0-128 fpm (39 mpm). Low working speed 0-83 fpm (25 mpm). Three-track Three PRO-5™ tracks with 14" (356 mm) wide polyurethane grousers on the front and 16" (406 mm) wide polyurethane grousers on the back. Travel speed 0-3.2 mph (0-5.1 kph). High working speed 0-156 fpm (55 mpm). Low working speed 0-83 fpm (25 mpm). Conveyors 42” (1066 mm) wide primary conveyor with endless heavy duty belt with 1” (25 mm) tall molded rubber cleats. 42” (1066 mm) wide load-out conveyor with endless belt with 1” (25 mm) tall molded rubber cleats. Load-out conveyor 120° swing capability. Truck guards on load-out conveyor. Self-cleaning head and tail pulleys. Electrical and Lights 4 kW generator set. Light package with ten (10) 24 V lights and two magnetic base 24 V DC halogen work lights. Six 24 V DC power outlets. Service Capacities Fuel ...............................360 gal (1363L) Water, 3 fill stations ........1300 gal (4920L) Hydraulic reservoir............. 125 gal (471L) Water System Variable speed hydraulically-driven water pump with automatic on/off for spray bars located on front and rear of cutter. 46' (14 m) long washdown hose on reel. Other Features Air compressor with reservoir and air tools. Remote grease fittings arranged in zones. Operator’s sunshade with mounting hardware. Amber warning beacon and back-up alarm. Please see reverse for cutter drum AND Cutter housing information and options.
