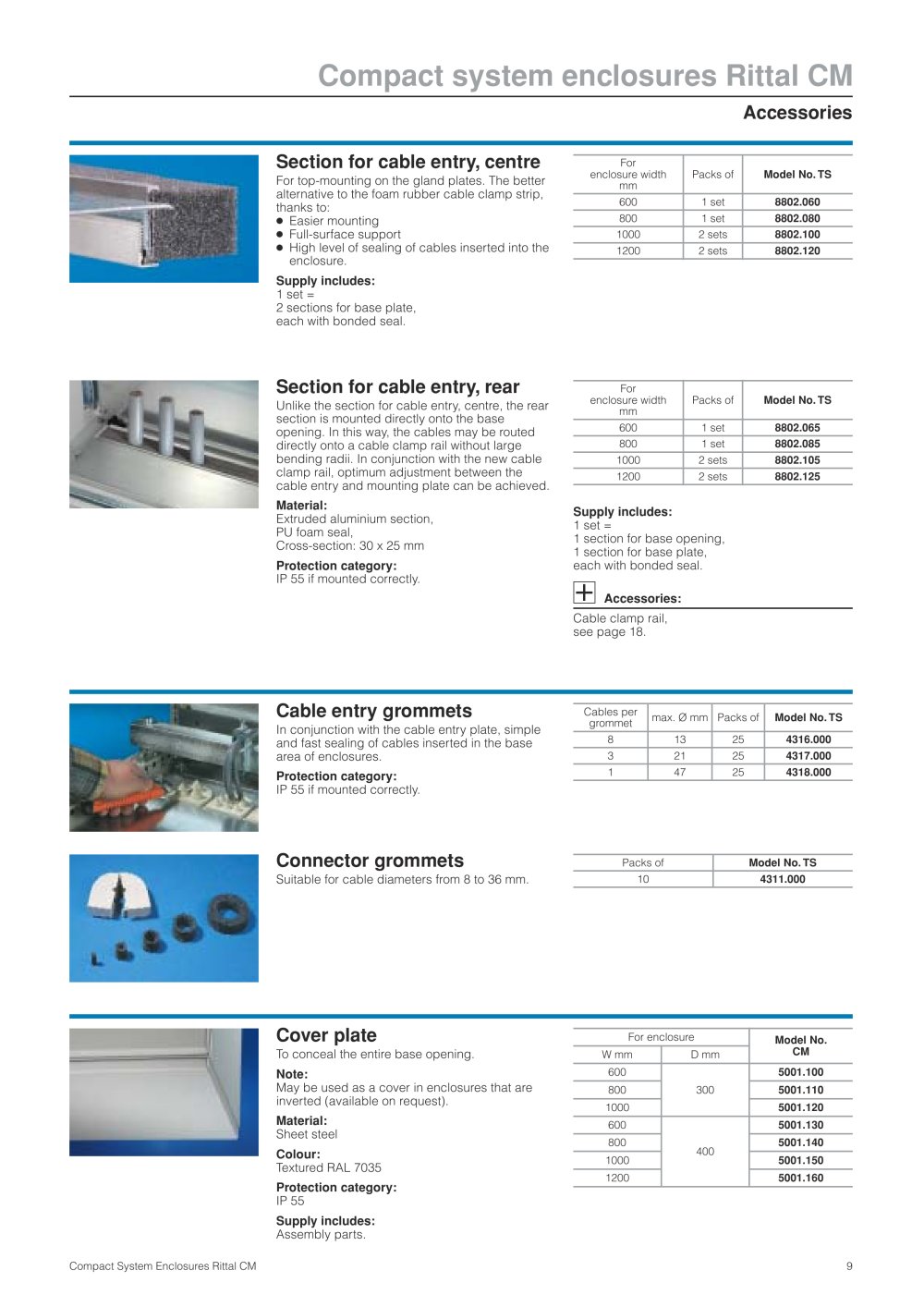

Compact system enclosures Rittal CM
Accessories Section for cable entry, centre
ā—¸ Easier mounting
For enclosure width mmPacks of
For top-mounting on the gland plates. The better alternative to the foam rubber cable clamp strip, thanks to: ā—¸ Full-surface support
Model No. TS
ā—¸ High level of sealing of cables inserted into the enclosure.
6001 set 8802.060 8001 set 8802.080
Supply includes: 1 set = 2 sections for base plate, each with bonded seal.
10002 sets 8802.100 12002 sets 8802.120
Supply includes: 1 set = 1 section for base opening, 1 section for base plate, each with bonded seal.
Section for cable entry, rear
For enclosure width mmPacks of
Unlike the section for cable entry, centre, the rear section is mounted directly onto the base opening. In this way, the cables may be routed directly onto a cable clamp rail without large bending radii. In conjunction with the new cable clamp rail, optimum adjustment between the cable entry and mounting plate can be achieved. Material:
Model No. TS
Extruded aluminium section, PU foam seal, Cross-section: 30 x 25 mm Protection category: IP 55 if mounted correctly.
6001 set 8802.065 8001 set 8802.085 10002 sets 8802.105 12002 sets 8802.125
Accessories: Cable clamp rail, see page 18.
Cable entry grommets
Cables per grommetmax. Ų mmPacks of Model No. TS
In conjunction with the cable entry plate, simple and fast sealing of cables inserted in the base area of enclosures.
81325 4316.000
Protection category: IP 55 if mounted correctly.
32125 4317.000 14725 4318.000
Connector grommets
Packs of Model No. TS
Suitable for cable diameters from 8 to 36 mm.
10 4311.000
Cover plate
For enclosure Model No. CM
To conceal the entire base opening.
W mmD mm600300
Note:
5001.100
May be used as a cover in enclosures that are inverted (available on request). Material:
800 5001.110
Sheet steel
1000 5001.120
Colour:
600400 5001.130
Textured RAL 7035
800 5001.140
Protection category:
1000 5001.150
IP 55
1200 5001.160
Supply includes: Assembly parts.
9Compact System Enclosures Rittal CM
