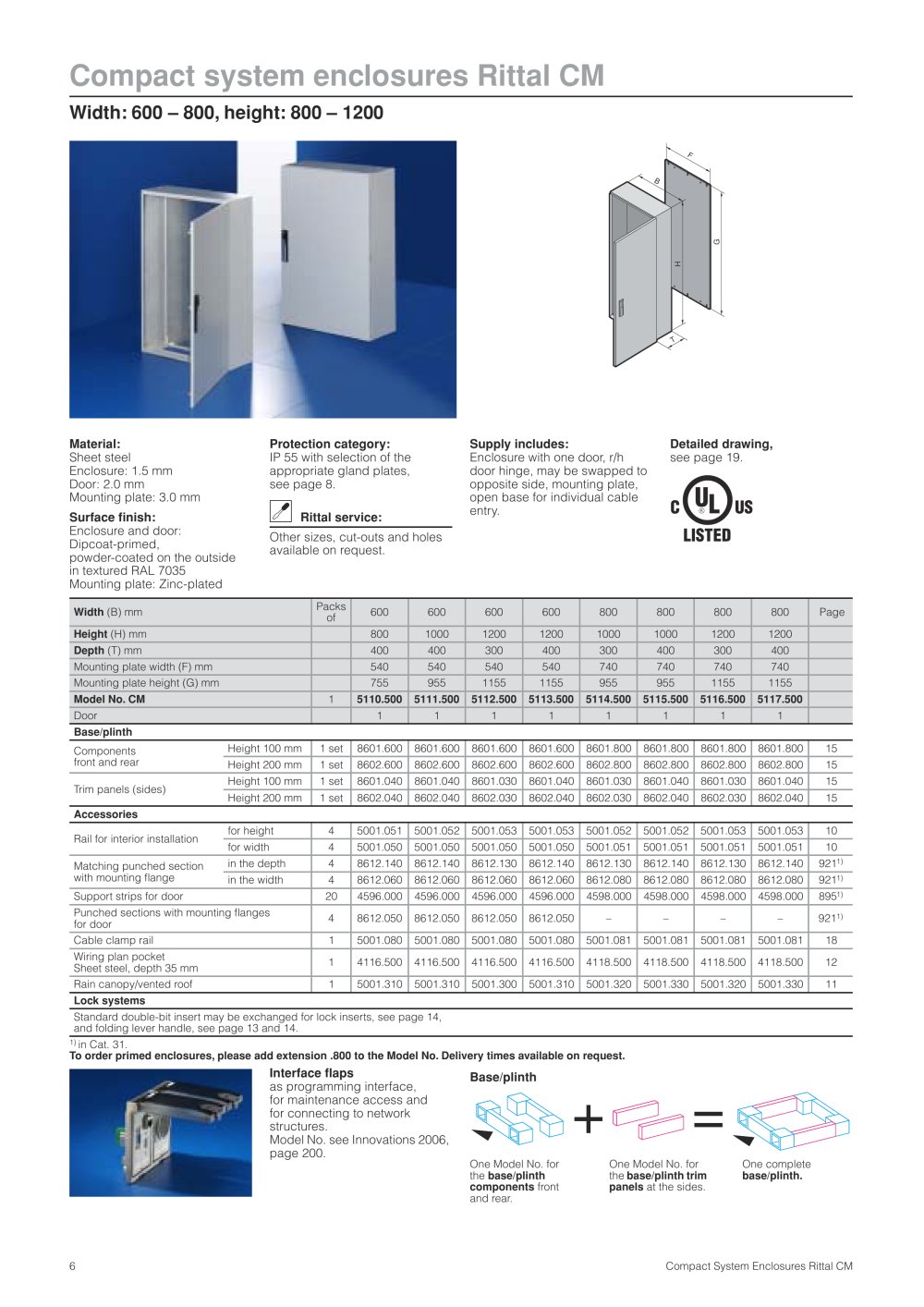

Compact system enclosures Rittal CM

Width: 600 – 800, height: 800 – 1200

F B G H

Protection category: IP 55 with selection of the appropriate gland plates, see page 8.

T

Detailed drawing, see page 19. Supply includes: Material: Enclosure with one door, r/h door hinge, may be swapped to opposite side, mounting plate, open base for individual cable entry. Sheet steel Enclosure: 1.5 mm Door: 2.0 mm Mounting plate: 3.0 mm Surface finish: Enclosure and door: Dipcoat-primed, powder-coated on the outside in textured RAL 7035 Mounting plate: Zinc-plated Rittal service: Other sizes, cut-outs and holes available on request.

Width (B) mm Packs of 600 600 600 600 800 800 800 800 Page Height (H) mm 800 1000 1200 1200 1000 1000 1200 1200 Depth (T) mm 400 400 300 400 300 400 300 400 Mounting plate width (F) mm 540 540 540 540 740 740 740 740 Mounting plate height (G) mm 755 955 1155 1155 955 955 1155 1155 Model No. CM 1 5110.500 5111.500 5112.500 5113.500 5114.500 5115.500 5116.500 5117.500 Door 1 1 1 1 1 1 1 1 Base/plinth Components front and rearHeight 100 mm1 set8601.6008601.6008601.6008601.6008601.8008601.8008601.8008601.80015 Height 200 mm1 set8602.6008602.6008602.6008602.6008602.8008602.8008602.8008602.80015 Trim panels (sides)Height 100 mm1 set8601.0408601.0408601.0308601.0408601.0308601.0408601.0308601.04015 Height 200 mm1 set8602.0408602.0408602.0308602.0408602.0308602.0408602.0308602.04015 Accessories Rail for interior installationfor height45001.0515001.0525001.0535001.0535001.0525001.0525001.0535001.05310 for width45001.0505001.0505001.0505001.0505001.0515001.0515001.0515001.05110 Matching punched section with mounting flangein the depth48612.1408612.1408612.1308612.1408612.1308612.1408612.1308612.140921
1) in the width48612.0608612.0608612.0608612.0608612.0808612.0808612.0808612.080921
1) Support strips for door204596.0004596.0004596.0004596.0004598.0004598.0004598.0004598.000895
1) Punched sections with mounting flanges for door48612.0508612.0508612.0508612.050––––921
1) Cable clamp rail15001.0805001.0805001.0805001.0805001.0815001.0815001.0815001.08118 Wiring plan pocketSheet steel, depth 35 mm14116.5004116.5004116.5004116.5004118.5004118.5004118.5004118.50012 Rain canopy/vented roof15001.3105001.3105001.3005001.3105001.3205001.3305001.3205001.33011 Standard double-bit insert may be exchanged for lock inserts, see page 14, and folding lever handle, see page 13 and 14. Lock systems
1) in Cat. 31. To order primed enclosures, please add extension .800 to the Model No. Delivery times available on request.

Interface flaps as programming interface, for maintenance access and for connecting to network structures. Model No. see Innovations 2006, page 200. Base/plinth

One Model No. for the One Model No. for the One complete base/plinth. base/plinth components base/plinth trim panels front and rear. at the sides. 6Compact System Enclosures Rittal CM
