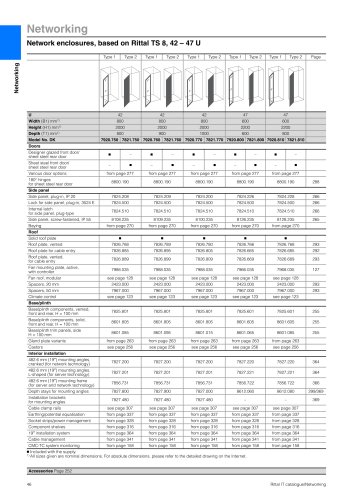

Networking
Network enclosures, based on Rittal TS 8, 42 – 47 U
46 Rittal IT catalogue/Networking Networking
Accessories Page 252
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2 Type 1 Type 2 Type 1 Type 2 Page
U 42 42 42 47 47
Width (B1) mm1) 800 800 800 600 600
Height (H1) mm1) 2000 2000 2000 2200 2200
Depth (T1) mm1) 800 900 1000 600 800
Model No. DK 7920.750 7821.750 7920.760 7821.760 7920.770 7821.770 7920.800 7821.800 7920.810 7821.810
Doors
Designer glazed front door/
sheet steel rear door – – – – –
Sheet steel front door/
sheet steel rear door – – – – –
Various door options from page 277 from page 277 from page 277 from page 277 from page 277
180° hinges
for sheet steel rear door 8800.190 8800.190 8800.190 8800.190 8800.190 288
Side panel
Side panel, plug-in, IP 20 7824.208 7824.209 7824.200 7824.226 7824.228 266
Lock for side panel, plug-in, 3524 E 7824.500 7824.500 7824.500 7824.500 7824.500 266
Internal latch
for side panel, plug-type 7824.510 7824.510 7824.510 7824.510 7824.510 266
Side panel, screw-fastened, IP 55 8108.235 8109.235 8100.235 8126.235 8128.235 265
Baying from page 270 from page 270 from page 270 from page 270 from page 270
Roof
Solid roof plate
Roof plate, vented 7826.788 7826.789 7826.780 7826.766 7826.768 293
Roof plate for cable entry 7826.885 7826.895 7826.805 7826.665 7826.685 292
Roof plate, vented,
for cable entry 7826.889 7826.899 7826.809 7826.669 7826.689 293
Fan mounting plate, active,
with controller 7988.035 7988.035 7988.035 7966.035 7968.035 127
Fan roof, modular see page 128 see page 128 see page 128 see page 128 see page 128
Spacers, 20 mm 2423.000 2423.000 2423.000 2423.000 2423.000 293
Spacers, 50 mm 7967.000 7967.000 7967.000 7967.000 7967.000 293
Climate control see page 123 see page 123 see page 123 see page 123 see page 123
Base/plinth
Base/plinth components, vented,
front and rear, H = 100 mm 7825.801 7825.801 7825.801 7825.601 7825.601 255
Base/plinth components, solid,
front and rear, H = 100 mm 8601.805 8601.805 8601.805 8601.605 8601.605 255
Base/plinth trim panels, side
H = 100 mm 8601.085 8601.095 8601.015 8601.065 8601.085 255
Gland plate variants from page 263 from page 263 from page 263 from page 263 from page 263
Castors see page 256 see page 256 see page 256 see page 256 see page 256
Interior installation
482.6 mm (19) mounting angles,
cranked (for network technology) 7827.200 7827.200 7827.200 7827.220 7827.220 364
482.6 mm (19) mounting angles,
L-shaped (for server technology) 7827.201 7827.201 7827.201 7827.221 7827.221 364
482.6 mm (19) mounting frame
(for server and network technology) 7856.731 7856.731 7856.731 7856.722 7856.722 366
Depth stays for mounting angles 7827.800 7827.900 7827.000 8612.060 8612.080 299/369
Installation brackets
for mounting angles 7827.480 7827.480 7827.480 – – 369
Cable clamp rails see page 307 see page 307 see page 307 see page 307 see page 307
Earthing/potential equalisation from page 337 from page 337 from page 337 from page 337 from page 337
Socket strips/power management from page 328 from page 328 from page 328 from page 328 from page 328
Component shelves from page 316 from page 316 from page 316 from page 316 from page 316
19 installation system from page 364 from page 364 from page 364 from page 364 from page 364
Cable management from page 341 from page 341 from page 341 from page 341 from page 341
CMC-TC system monitoring from page 158 from page 158 from page 158 from page 158 from page 158
Included with the supply.
1) All sizes given are nominal dimensions. For absolute dimensions, please refer to the detailed drawing on the Internet.
