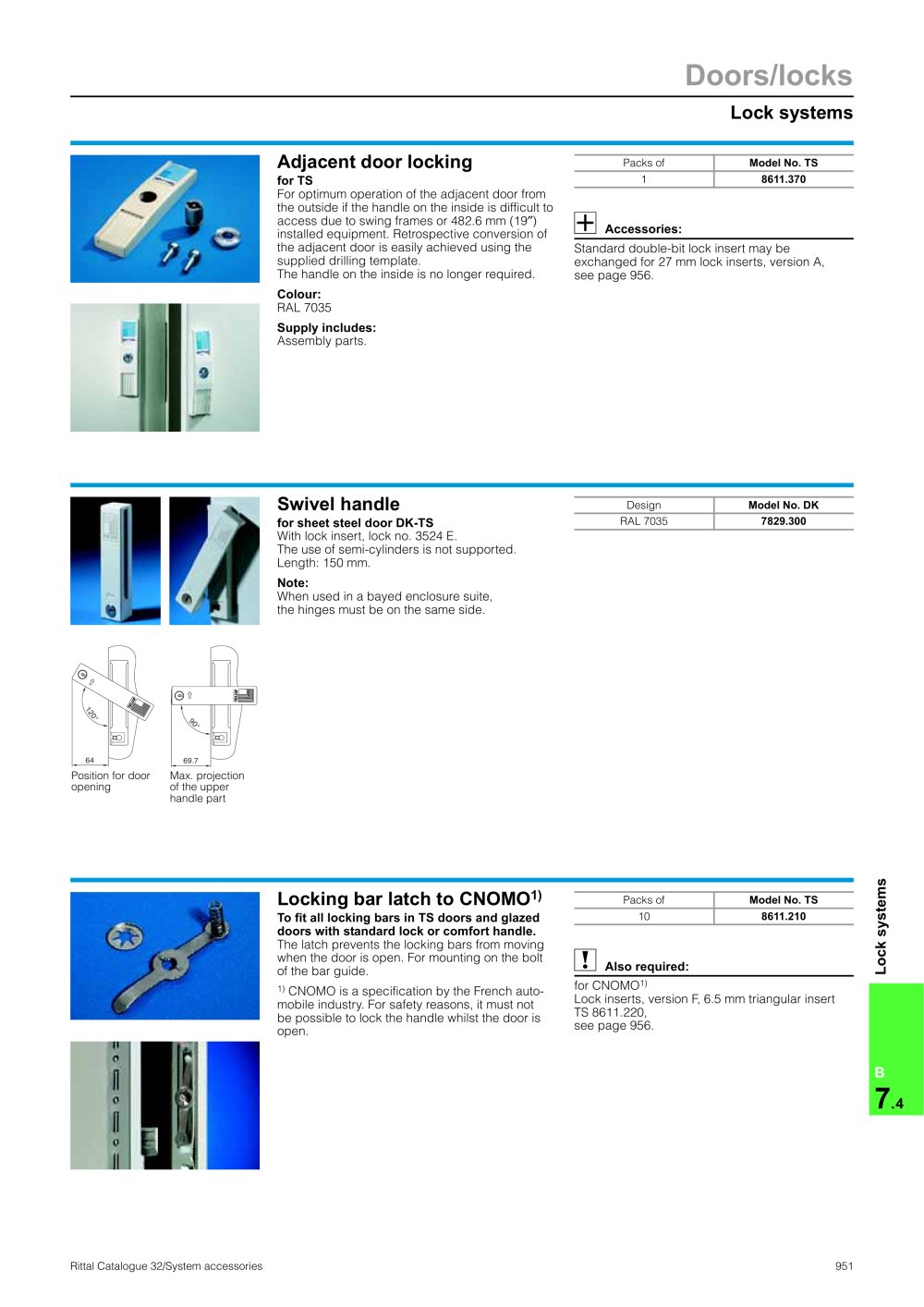

Doors/locks

Lock systems Adjacent door locking

Packs of Model No. TS for TS
1 8611.370 For optimum operation of the adjacent door from the outside if the handle on the inside is difficult to access due to swing frames or 482.6 mm (19 ″ ) installed equipment. Retrospective conversion of the adjacent door is easily achieved using the supplied drilling template. The handle on the inside is no longer required. Accessories: Standard double-bit lock insert may be exchanged for 27 mm lock inserts, version A, seepage 956. Colour: RAL 7035 Supply includes: Assembly parts.

Swivel handle

Model No. DK for sheet steel door DK-TS
RAL 7035 7829.300 With lock insert, lock no. 3524 E. The use of semi-cylinders is not supported. Length: 150 mm. Note: When used in a bayed enclosure suite, the hinges must be on the same side.
120 ° 90 ° 69.764 Position for door openingMax. projection of the upper handle part Design

Locking bar latch to CNOMO

1)

Packs of Model No. TS To fit all locking bars in TS doors and glazed doors with standard lock or comfort handle.
10 8611.210 The latch prevents the locking bars from moving when the door is open. For mounting on the bolt of the bar guide. Also required:
Lock systems 1) 1) CNOMO is a specification by the French auto-mobile industry. For safety reasons, it must not be possible to lock the handle whilst the door is open. for CNOMO Lock inserts, version F, 6.5 mm triangular insert TS8611.220,see page 956.

B

7

.4

951Rittal Catalogue 32/System accessories
