Networking

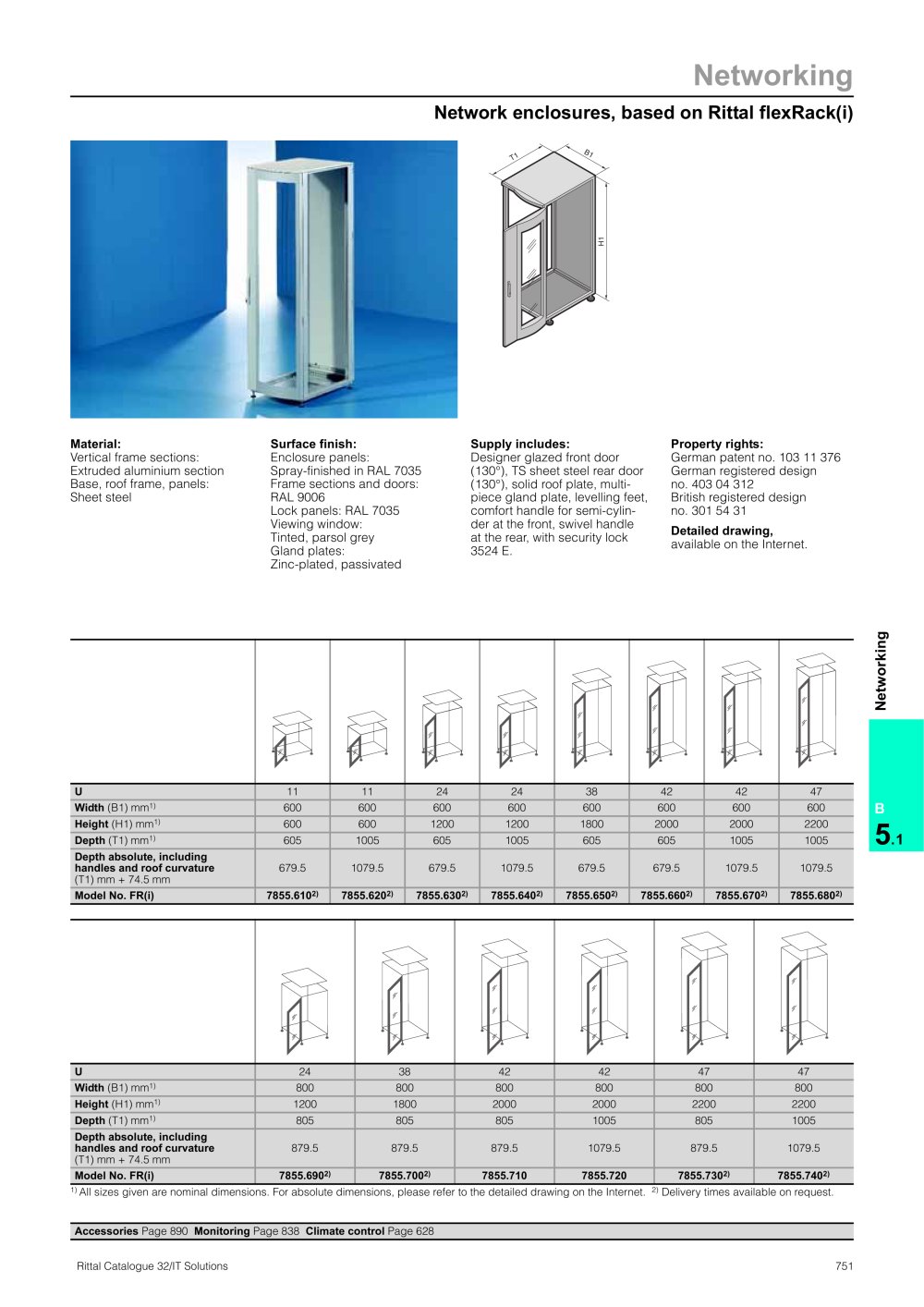

Network enclosures, based on Rittal flexRack(i)

B1 T1 H1

Property rights: German patent no. 103 11 376 German registered design no. 403 04 312 British registered design no. 301 54 31 Supply includes: Designer glazed front door (130°), TS sheet steel rear door (130°), solid roof plate, multi-piece gland plate, levelling feet, comfort handle for semi-cylin-der at the front, swivel handle at the rear, with security lock 3524 E. Surface finish: Enclosure panels: Spray-finished in RAL 7035Frame sections and doors: RAL 9006 Lock panels: RAL 7035 Viewing window: Tinted, parsol grey Gland plates: Zinc-plated, passivated Detailed drawing, available on the Internet. Material: Vertical frame sections: Extruded aluminium section Base, roof frame, panels: Sheet steel

Networking U 11 11 24 24 38 42 42 47 Width (B1) mm
1) 600 600 600 600 600 600 600 600
1)

B

Height (H1) mm 600 600 1200 1200 1800 2000 2000 2200 Depth (T1) mm
1) 605 1005 605 1005 605 605 1005 1005 Depth absolute, including handles and roof curvature

5

.1

(T1) mm + 74.5 mm 679.5 1079.5 679.5 1079.5 679.5 679.5 1079.5 1079.5 Model No. FR(i) 7855.610
2) 7855.620
2) 7855.630
2) 7855.640
2) 7855.650
2) 7855.660
2) 7855.670
2) 7855.680
2) U 24 38 42 42 47 47 Width (B1) mm
1) 800 800 800 800 800 800 Height (H1) mm
1) 1200 1800 2000 2000 2200 2200 Depth (T1) mm
1) 805 805 805 1005 805 1005 Depth absolute, including handles and roof curvature (T1) mm + 74.5 mm 879.5 879.5 879.5 1079.5 879.5 1079.5 Model No. FR(i) 7855.690
2) 7855.700
2) 7855.710 7855.720 7855.730
2) 7855.740
2) 1) All sizes given are nominal dimensions. For absolute dimensions, please refer to the detailed drawing on the Internet.
2) Delivery times available on request. Accessories Page 890 Monitoring Page 838 Climate control Page 628 751Rittal Catalogue 32/IT Solutions
