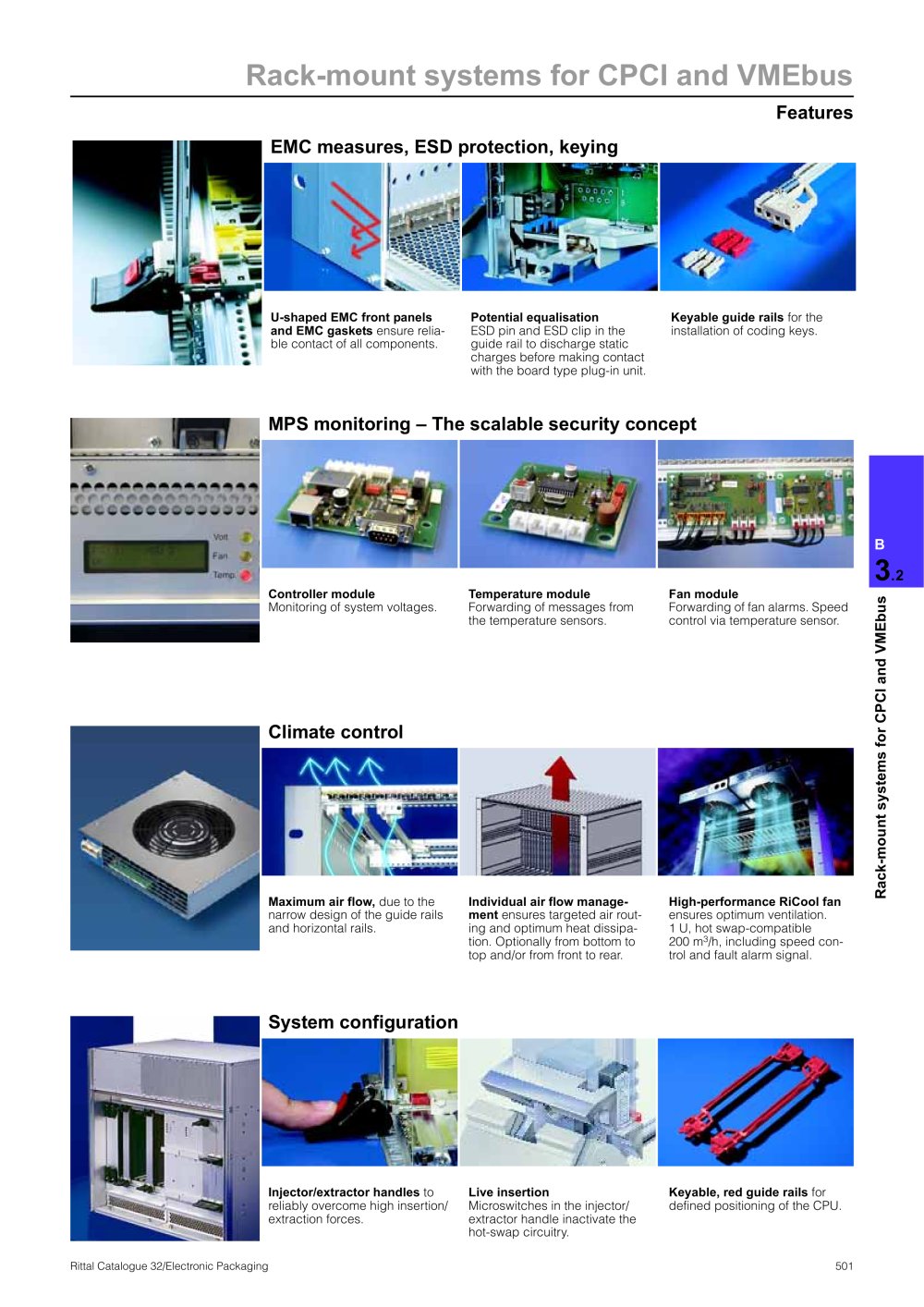

Rack-mount systems for CPCI and VMEbus

Features EMC measures, ESD protection, keying

Keyable guide rails for the installation of coding keys. U-shaped EMC front panels and EMC gaskets Potential equalisation ensure relia-ble contact of all components. ESD pin and ESD clip in the guide rail to discharge static charges before making contact with the board type plug-in unit.

MPS monitoring – The scalable security concept

B

Controller module Temperature module Fan module

3

.2

Monitoring of system voltages. Forwarding of messages from the temperature sensors. Forwarding of fan alarms. Speed control via temperature sensor.

Climate control

Individual air flow manage-ment High-performance RiCool fan ensures targeted air rout-ing and optimum heat dissipa-tion. Optionally from bottom to top and/or from front to rear. ensures optimum ventilation. 1U, hot swap-compatible 200m Maximum air flow, due to the narrow design of the guide rails and horizontal rails.
Rack-mount systems for CPCI and VMEbus 3 /h, including speed con-trol and fault alarm signal.

System configuration

Keyable, red guide rails for defined positioning of the CPU. Injector/extractor handles to reliably overcome high insertion/extraction forces. Live insertion Microswitches in the injector/extractor handle inactivate the hot-swap circuitry.
501Rittal Catalogue 32/Electronic Packaging
