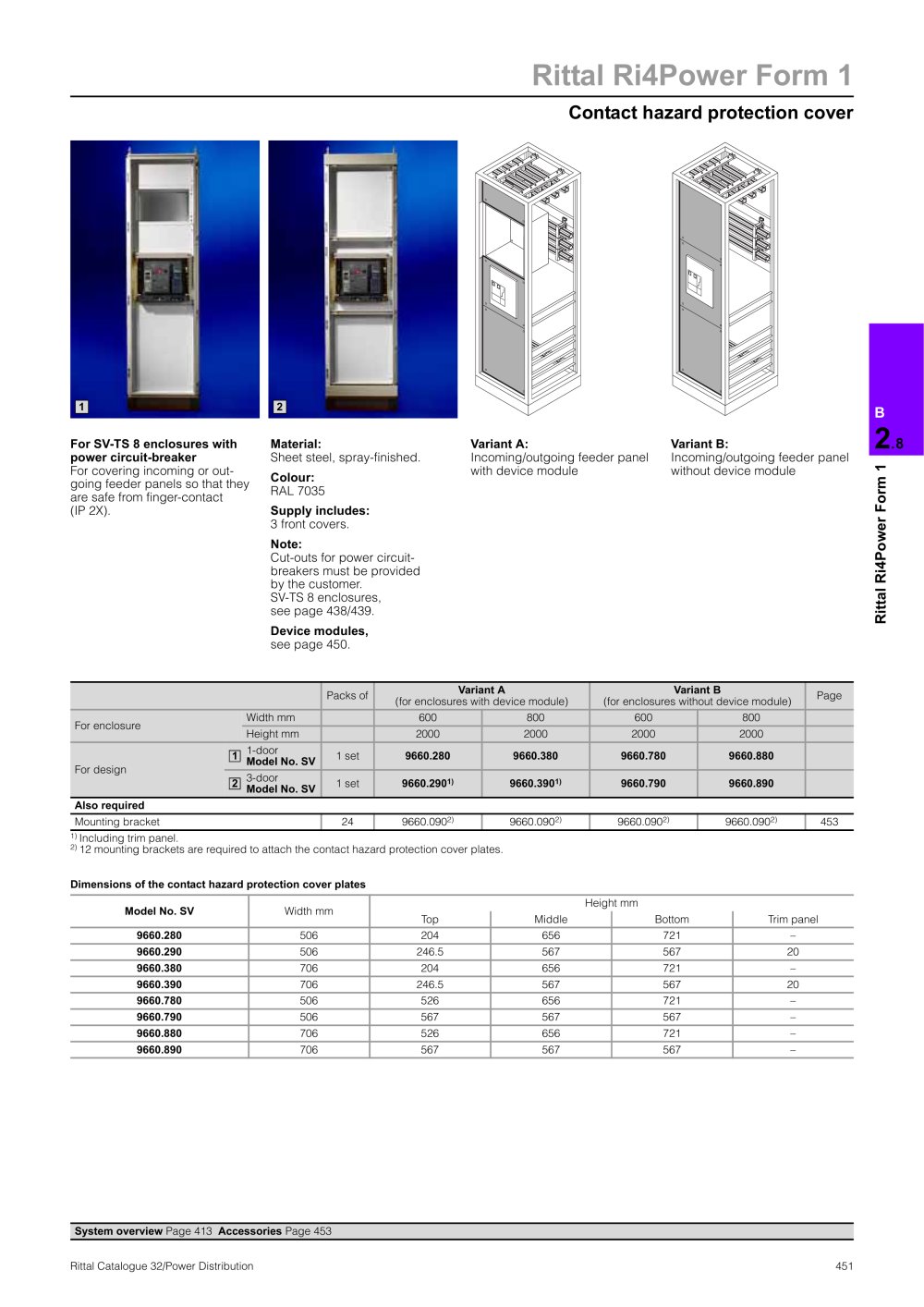

Rittal Ri4Power Form 1

Contact hazard protection cover

Variant A: Variant B:

1 2

Incoming/outgoing feeder panel with device module Incoming/outgoing feeder panel without device module Material:

B

Sheet steel, spray-finished. For SV-TS 8 enclosures with power circuit-breaker Colour: RAL 7035

2

.8

For covering incoming or out-going feeder panels so that they are safe from finger-contact (IP2X). Supply includes: 3 front covers. Note: Cut-outs for power circuit-breakers must be provided by the customer. SV-TS 8 enclosures, see page 438/439. Device modules, see page 450.

Rittal Ri4Power Form 1 Packs of Variant A (for enclosures with device module) Variant B (for enclosures without device module) Page Width mm 600 800 600 800 For enclosure Height mm 2000 2000 2000 2000 1 1-door Model No. SV 1 set 9660.280 9660.380 9660.780 9660.880 For design 2 3-door
1) 1) Model No. SV 1 set 9660.290 9660.390 9660.790 9660.890 Also required Mounting bracket24 9660.090
2) 9660.090
2) 9660.090
2) 9660.090
2) 453
1) Including trim panel.
2) 12 mounting brackets are required to attach the contact hazard protection cover plates. Dimensions of the contact hazard protection cover plates Model No. SV Width mmHeight mmTopMiddleBottomTrim panel 9660.280 506204656721– 9660.290 506246.556756720 9660.380 706204656721– 9660.390 706246.556756720 9660.780 506526656721– 9660.790 506567567567– 9660.880 706526656721– 9660.890 706567567567– System overview Page 413 Accessories Page 453 451Rittal Catalogue 32/Power Distribution
