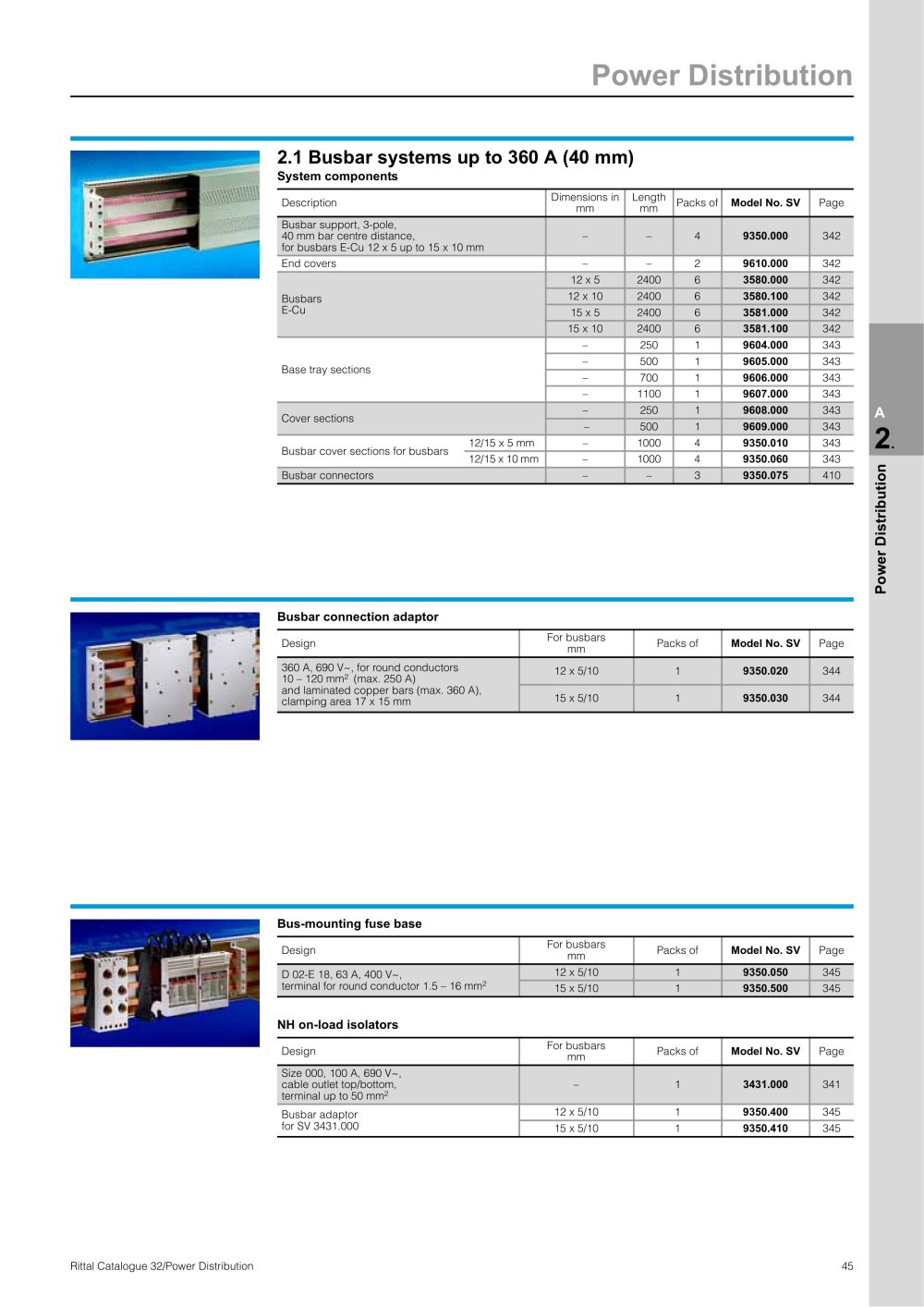

Power Distribution

2.1 Busbar systems up to 360 A (40 mm)

System components

DescriptionDimensions in mmLength mmPacks of Model No. SV Page Busbar support, 3-pole, 40 mm bar centre distance, for busbars E-Cu 12 x 5 up to 15 x 10 mm – – 4 9350.000 342 End covers––2 9610.000 342 12 x 5 2400 6 3580.000 342 Busbars E-Cu 12 x 10 2400 6 3580.100 342 15 x 5 2400 6 3581.000 342 15 x 10 2400 6 3581.100 342 Base tray sections–250 1 9604.000 343 –500 1 9605.000 343 –700 1 9606.000 343 –1100 1 9607.000 343 – 250 1 9608.000 343 Cover sections

A

– 500 1 9609.000 343 Busbar cover sections for busbars12/15 x 5 mm–10004 9350.010 343 12/15 x 10 mm –10004 9350.060 343

2

.

Busbar connectors – – 3 9350.075 410
Power Distribution

Busbar connection adaptor

DesignFor busbars mmPacks of Model No. SV Page 360 A, 690 V~, for round conductors 10 – 120mm
2 12 x 5/10 1 9350.020 344 (max. 250 A) and laminated copper bars (max. 360 A), clamping area 17 x 15 mm 15 x 5/10 1 9350.030 344

Bus-mounting fuse base NH on-load isolators

DesignFor busbars mmPacks of Model No. SV Page D 02-E 18, 63 A, 400 V~, terminal for round conductor 1.5 – 16 mm 12 x 5/10 1 9350.050 345
2 15 x 5/10 1 9350.500 345 DesignFor busbars mmPacks of Model No. SV Page Size 000, 100 A, 690 V~, cable outlet top/bottom, terminal up to 50 mm
2 – 1 3431.000 341 Busbar adaptor for SV 3431.00012 x 5/10 1 9350.400 345 15 x 5/10 1 9350.410 345 45Rittal Catalogue 32/Power Distribution
