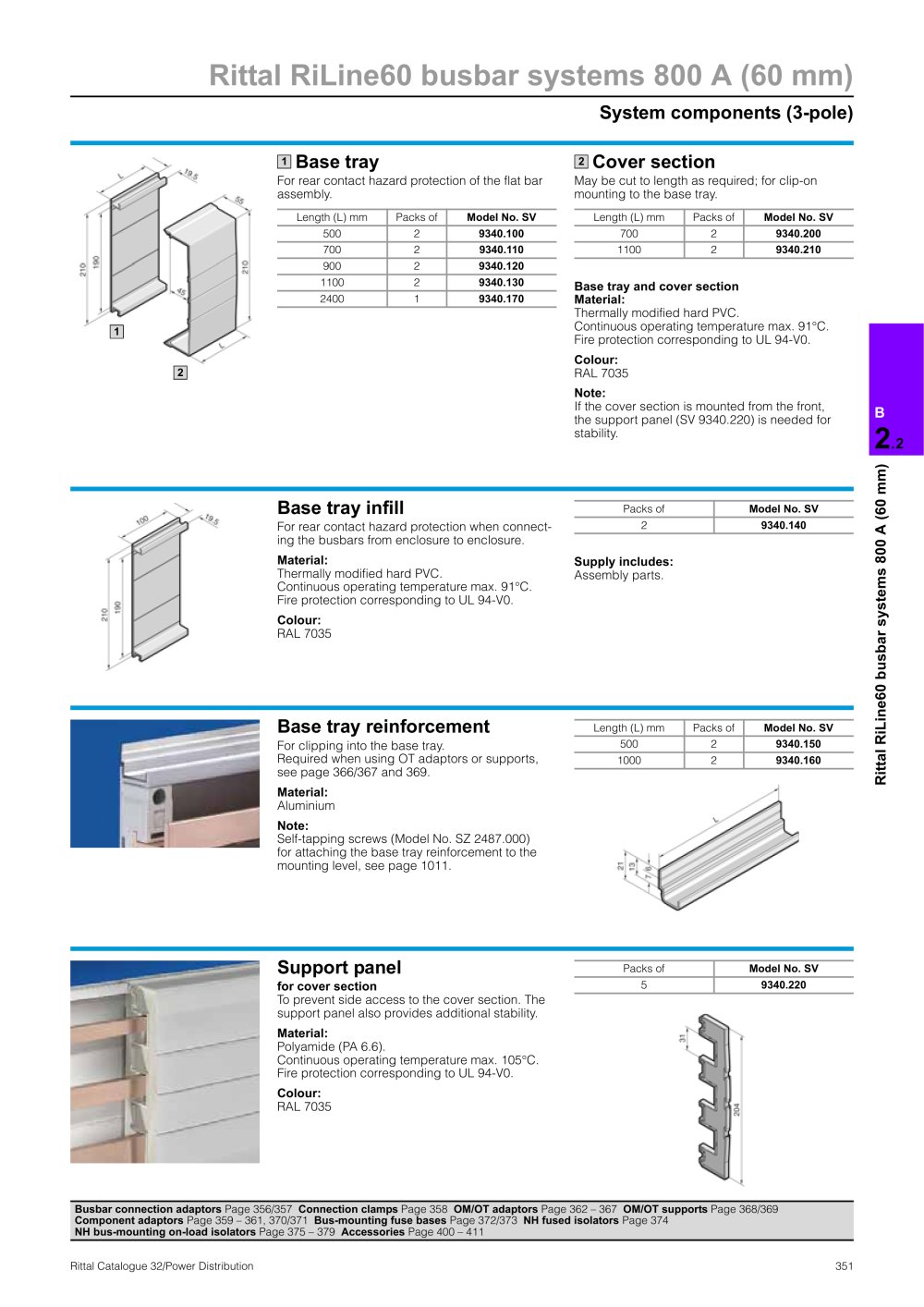

Rittal RiLine60 busbar systems 800 A (60 mm)

System components (3-pole)

1

Base tray

2

Cover section

For rear contact hazard protection of the flat bar assembly. May be cut to length as required; for clip-on mounting to the base tray.

Length (L) mmPacks of Model No. SV Length (L) mmPacks of Model No. SV 5002 9340.100 7002 9340.200 7002 9340.110 11002 9340.210 9002 9340.120

Base tray and cover section Material: Thermally modified hard PVC. Continuous operating temperature max. 91°C. Fire protection corresponding to UL 94-V0.

11002 9340.130 24001 9340.170

Colour: RAL 7035

1

Note: If the cover section is mounted from the front, the support panel (SV 9340.220) is needed for stability.

2

B

2

.2

Base tray infill

Packs of Model No. SV

For rear contact hazard protection when connect-ing the busbars from enclosure to enclosure.

2 9340.140

Supply includes: Assembly parts. Material: Thermally modified hard PVC. Continuous operating temperature max. 91°C. Fire protection corresponding to UL 94-V0. Colour: RAL 7035

Base tray reinforcement

Length (L) mmPacks of Model No. SV

For clipping into the base tray. Required when using OT adaptors or supports, see page 366/367 and 369.

5002 9340.150 10002 9340.160
Rittal RiLine60 busbar systems 800 A (60 mm)

Material: Aluminium Note: Self-tapping screws (Model No. SZ 2487.000) for attaching the base tray reinforcement to the mounting level, see page 1011.

Support panel

Packs of Model No. SV

for cover section

5 9340.220

To prevent side access to the cover section. The support panel also provides additional stability. Material: Polyamide (PA 6.6). Continuous operating temperature max. 105°C. Fire protection corresponding to UL 94-V0. Colour: RAL 7035

Busbar connection adaptors Page 356/357 Connection clamps Page 358 OM/OT adaptors Page 362 – 367 OM/OT supports Page 368/369 Component adaptors Page 359 – 361, 370/371 Bus-mounting fuse bases Page 372/373 NH fused isolators Page 374 NH bus-mounting on-load isolators Page 375 – 379 Accessories Page 400 – 411 351Rittal Catalogue 32/Power Distribution
