Industrial Enclosures

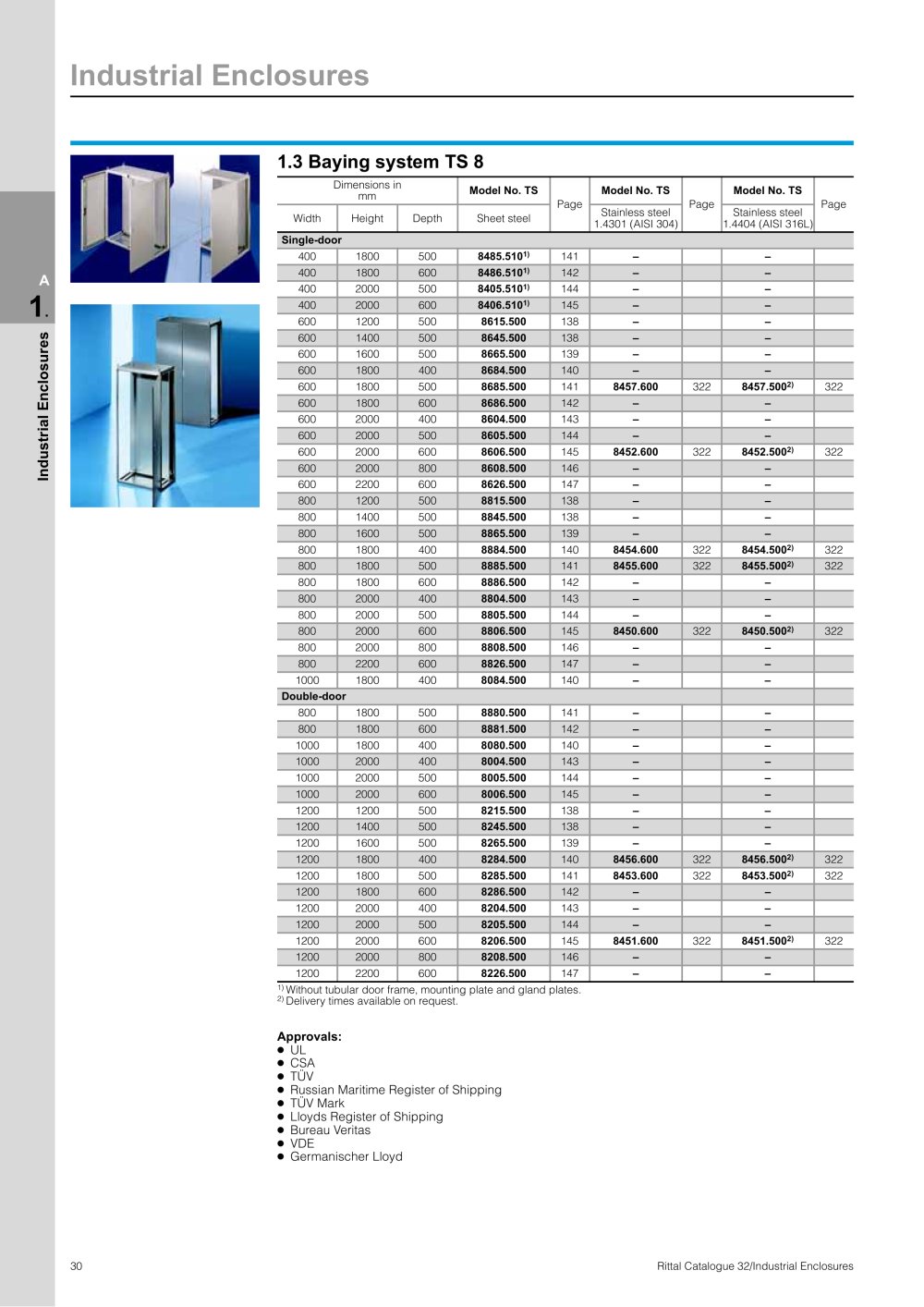

1.3 Baying system TS 8

Dimensions in mm Model No. TS Model No. TS Model No. TS Page Page PageWidthHeightDepthSheet steelStainless steel 1.4301 (AISI 304)Stainless steel 1.4404 (AISI 316L) Single-door 4001800500 8485.510
1) 141 – –
1)

A

400 1800 600 8486.510 142 – – 4002000500 8405.510
1) 144 – –

1

.

400 2000 600 8406.510
1) 145 – – 6001200500 8615.500 138 – – 600 1400 500 8645.500 138 – – 6001600500 8665.500 139 – – 600 1800 400 8684.500 140 – – 6001800500 8685.500 141 8457.600 322 8457.500
2) 322 600 1800 600 8686.500 142 – – 6002000400 8604.500 143 – – 600 2000 500 8605.500 144 – – 6002000600 8606.500 145 8452.600 322 8452.500
2) 322 600 2000 800 8608.500 146 – –
Industrial Enclosures 6002200600 8626.500 147 – – 800 1200 500 8815.500 138 – – 8001400500 8845.500 138 – – 800 1600 500 8865.500 139 – – 8001800400 8884.500 140 8454.600 322 8454.500
2) 322 800 1800 500 8885.500 141 8455.600 322 8455.500
2) 322 8001800600 8886.500 142 – – 800 2000 400 8804.500 143 – – 8002000500 8805.500 144 – – 800 2000 600 8806.500 145 8450.600 322 8450.500
2) 322 8002000800 8808.500 146 – – 800 2200 600 8826.500 147 – – 10001800400 8084.500 140 – – Double-door 8001800500 8880.500 141 – – 800 1800 600 8881.500 142 – – 10001800400 8080.500 140 – – 1000 2000 400 8004.500 143 – – 10002000500 8005.500 144 – – 1000 2000 600 8006.500 145 – – 12001200500 8215.500 138 – – 1200 1400 500 8245.500 138 – – 12001600500 8265.500 139 – – 1200 1800 400 8284.500 140 8456.600 322 8456.500
2) 322 12001800500 8285.500 141 8453.600 322 8453.500
2) 322 1200 1800 600 8286.500 142 – – 12002000400 8204.500 143 – – 1200 2000 500 8205.500 144 – – 12002000600 8206.500 145 8451.600 322 8451.500
2) 322 1200 2000 800 8208.500 146 – – 12002200600 8226.500 147 – –
1) 2) Without tubular door frame, mounting plate and gland plates. Delivery times available on request.

Approvals: â—� UL â—� CSA â—� TÜV â—� Russian Maritime Register of Shipping â—� TÜV Mark â—� Lloyds Register of Shipping â—� Bureau Veritas â—� VDE â—� Germanischer Lloyd

30Rittal Catalogue 32/Industrial Enclosures
