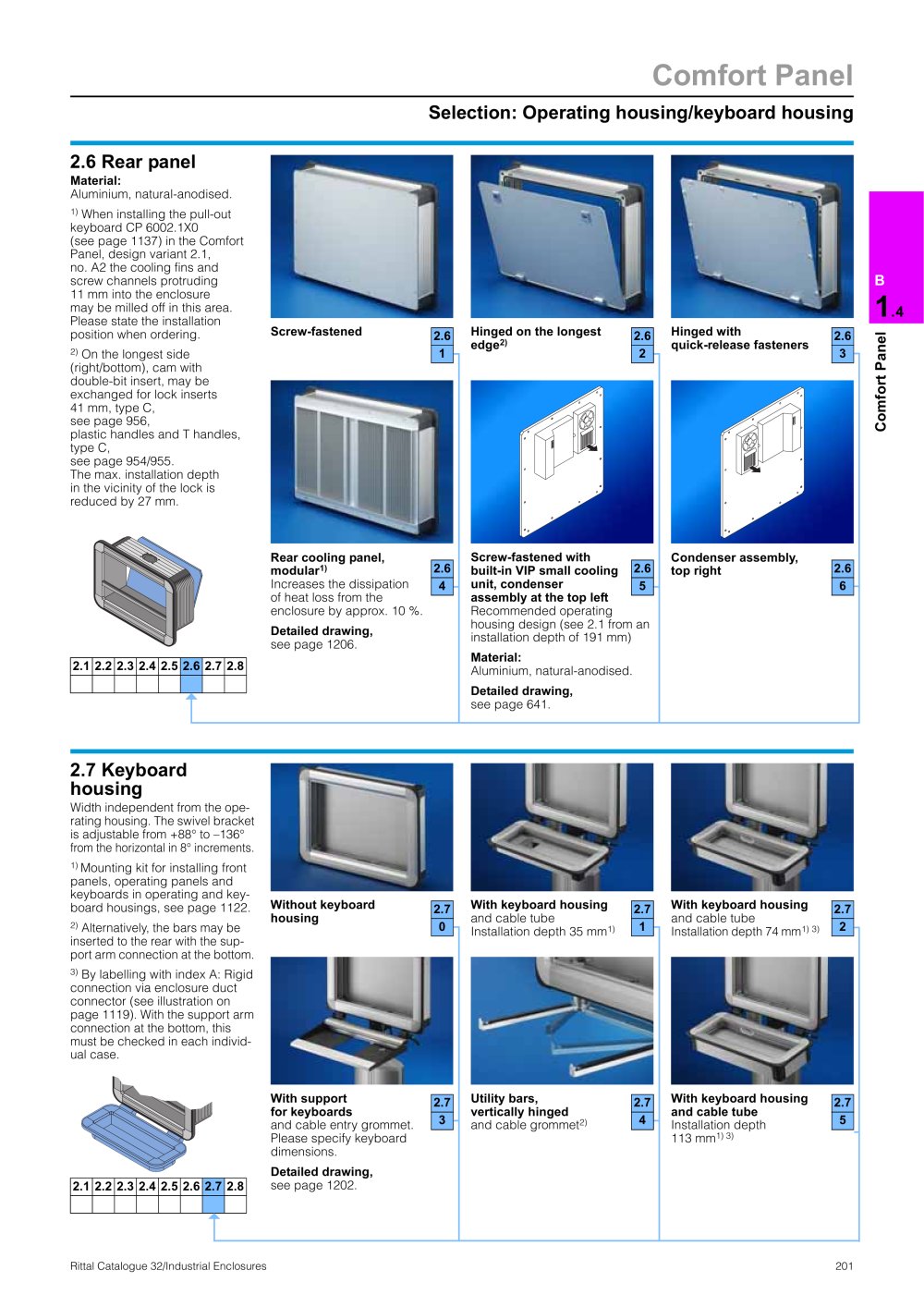

Comfort Panel

Selection: Operating housing/keyboard housing 2.6 Rear panel

Material: Aluminium, natural-anodised.
1) When installing the pull-out keyboard CP 6002.1X0 (see page 1137) in the Comfort Panel, design variant 2.1, no.A2 the cooling fins and screw channels protruding 11 mm into the enclosure may be milled off in this area. Please state the installation position when ordering.

B

2.6 Hinged on the longest edge

1

.4

2) 2.6 2.6
2) On the longest side (right/bottom), cam with double-bit insert, may be exchanged for lock inserts 41 mm, type C, see page 956, plastic handles and T handles, type C, see page 954/955. The max. installation depth in the vicinity of the lock is reduced by 27 mm. 1 Hinged with quick-release fastenersScrew-fastened 2 3
Comfort Panel Condenser assembly, top rightRear cooling panel, modular Screw-fastened with built-in VIP small cooling unit, condenser assembly at the top left
1) 2.6 2.6 2.6 Increases the dissipation of heat loss from the enclosure by approx. 10%. 4 Recommended operating housing design (see 2.1 from an installation depth of 191 mm) 5 6 Detailed drawing, see page 1206. Material: Aluminium, natural-anodised. 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 Detailed drawing, see page 641.

2.7 Keyboard housing

Width independent from the ope-rating housing. The swivel bracket is adjustable from +88° to –136° from the horizontal in 8° increments.
1) Mounting kit for installing front panels, operating panels and keyboards in operating and key- board housings, see page 1122. Without keyboard housing 2.7 With keyboard housing and cable tube Installation depth 35 mm 2.7 With keyboard housing 2.7
2) 1 and cable tube Alternatively, the bars may be inserted to the rear with the sup-port arm connection at the bottom.
1) Installation depth 74 mm
1) 3) 2
3) By labelling with index A: Rigid connection via enclosure duct connector (see illustration on page 1119 ). With the support arm connection at the bottom, this must be checked in each individ-ual case. With support for keyboards 2.7 Utility bars, vertically hinged and cable grommet 2.7 With keyboard housing and cable tube Installation depth 113 mm 2.7 and cable entry grommet. Please specify keyboard dimensions. 3
2) 4 5
1) 3) Detailed drawing, 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 see page 1202.
201Rittal Catalogue 32/Industrial Enclosures
