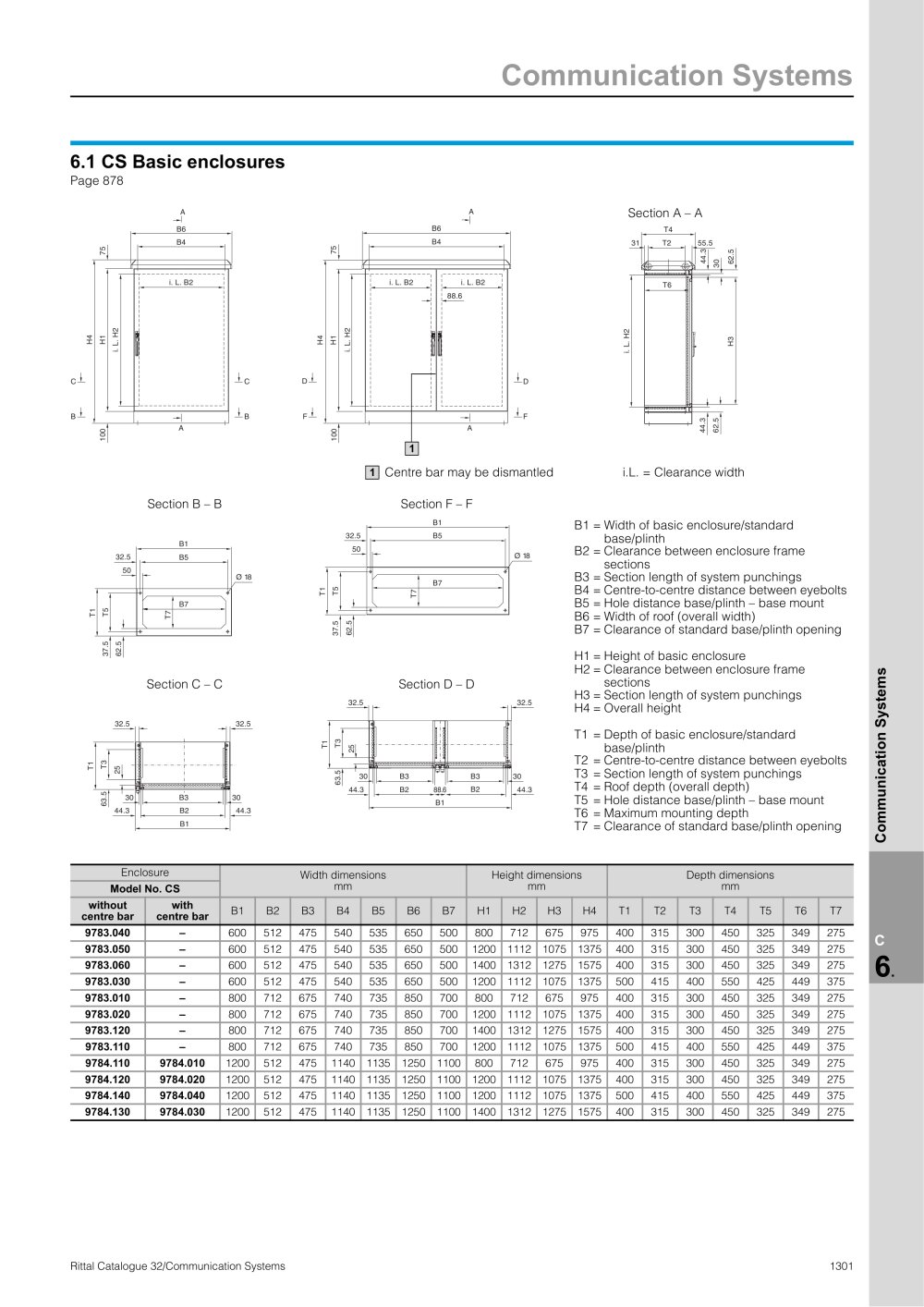

6.1 CS Basic enclosures

Page 878

Section A - A T4

i. L. B2

cm I

1c 1b

□ 1 pi

₀0

|T| Centre bar may be dismantled Section F - F

i.L. = Clearance width

Section B - B

B1 = Width of basic enclosure/standard

base/plinth B2 = Clearance between enclosure frame

sections

B3 = Section length of system punchings

B4 = Centre-to-centre distance between eyebolts

B5 = Hole distance base/plinth - base mount

B6 = Width of roof (overall width)

B7 = Clearance of standard base/plinth opening

H1 = Height of basic enclosure H2 = Clearance between enclosure frame sections

H3 = Section length of system punchings H4 = Overall height

T1 = Depth of basic enclosure/standard base/plinth

T2 = Centre-to-centre distance between eyebolts

T3 = Section length of system punchings

T4 = Roof depth (overall depth)

T5 = Hole distance base/plinth - base mount

T6 = Maximum mounting depth

T7 = Clearance of standard base/plinth opening


	32.5_			B5
	32.5_
	» -,-
	T5
	T5			\
	* ^J-

0 18

32.5_ì50

0 18


	^/	B7
	\	/

co cd

Section C - C

Section D - D

32.5

30| 44.3

B3 J|' '||- B3

30 44.3

3 30]

44.3

, 88.6 B1

30 44.3


Enclosure				Width dimensions					Height dimensions						Depth dimensions
Model No. CS					mm					mm						mm
without centre bar	with centre bar	B1	B2	B3	B4	B5	B6	B7	H1	H2	H3	H4	T1	T2	T3	T4	T5	T6	T7
9783.040	-	600	512	475	540	535	650	500	800	712	675	975	400	315	300	450	325	349	275
9783.050	-	600	512	475	540	535	650	500	1200	1112	1075	1375	400	315	300	450	325	349	275
9783.060	-	600	512	475	540	535	650	500	1400	1312	1275	1575	400	315	300	450	325	349	275
9783.030	-	600	512	475	540	535	650	500	1200	1112	1075	1375	500	415	400	550	425	449	375
9783.010	-	800	712	675	740	735	850	700	800	712	675	975	400	315	300	450	325	349	275
9783.020	-	800	712	675	740	735	850	700	1200	1112	1075	1375	400	315	300	450	325	349	275
9783.120	-	800	712	675	740	735	850	700	1400	1312	1275	1575	400	315	300	450	325	349	275
9783.110	-	800	712	675	740	735	850	700	1200	1112	1075	1375	500	415	400	550	425	449	375
9784.110	9784.010	1200	512	475	1140	1135	1250	1100	800	712	675	975	400	315	300	450	325	349	275
9784.120	9784.020	1200	512	475	1140	1135	1250	1100	1200	1112	1075	1375	400	315	300	450	325	349	275
9784.140	9784.040	1200	512	475	1140	1135	1250	1100	1200	1112	1075	1375	500	415	400	550	425	449	375
9784.130	9784.030	1200	512	475	1140	1135	1250	1100	1400	1312	1275	1575	400	315	300	450	325	349	275
