Human/machine interface

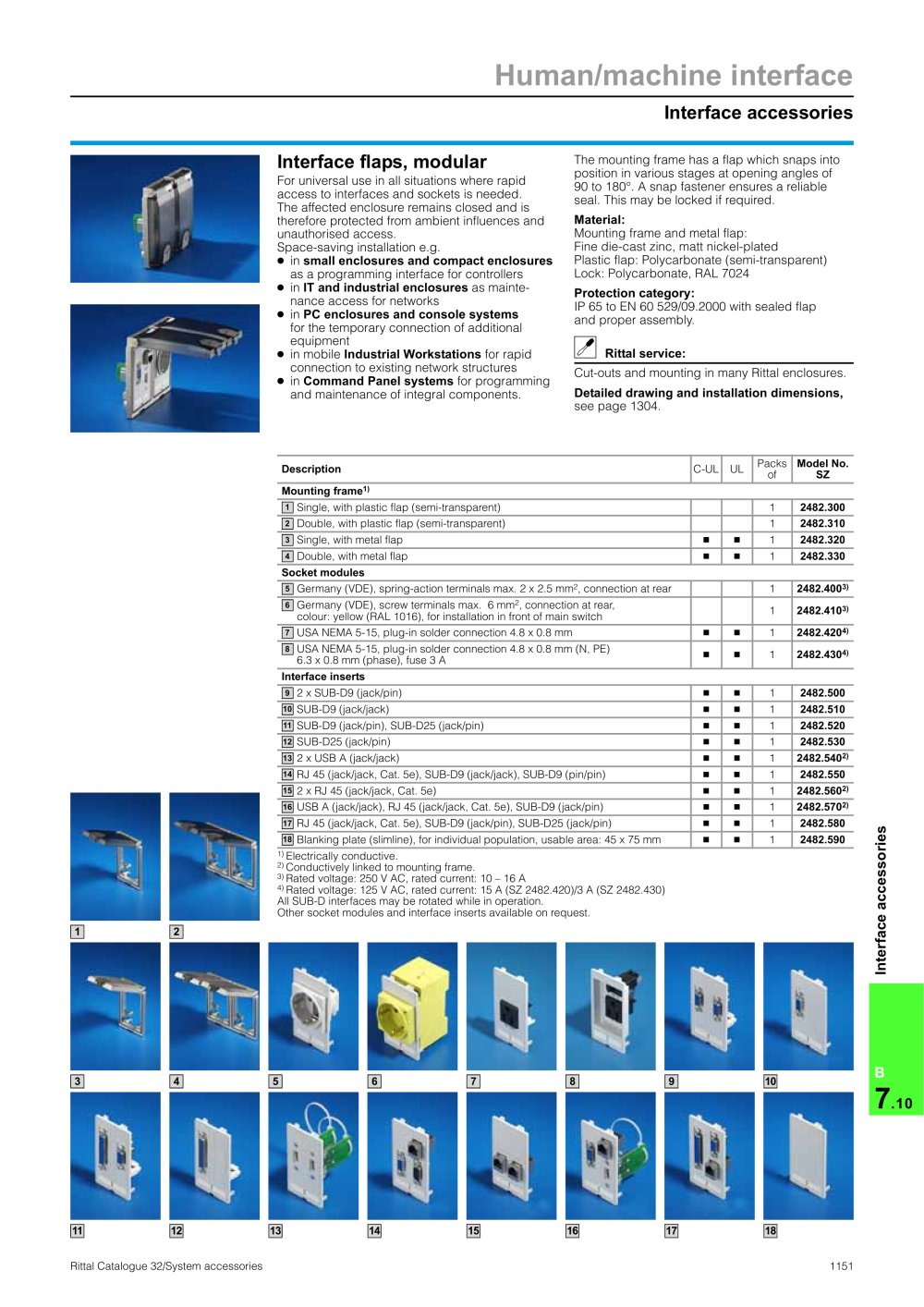

Interface accessories Interface flaps, modular

Material: For universal use in all situations where rapid access to interfaces and sockets is needed. The affected enclosure remains closed and is therefore protected from ambient influences and unauthorised access. Space-saving installation e.g. Mounting frame and metal flap: Fine die-cast zinc, matt nickel-plated Plastic flap: Polycarbonate (semi-transparent) Lock: Polycarbonate, RAL 7024 Protection category: â—� in small enclosures and compact enclosures as a programming interface for controllers IP 65 to EN 60 529/09.2000 with sealed flap and proper assembly. â—� in IT and industrial enclosures as mainte-nance access for networks â—� in PC enclosures and console systems for the temporary connection of additional equipment â—� in mobile Industrial Workstations for rapid connection to existing network structures â—� in Command Panel systems for programming and maintenance of integral components. The mounting frame has a flap which snaps into position in various stages at opening angles of 90 to 180°. A snap fastener ensures a reliable seal. This may be locked if required. Rittal service: Cut-outs and mounting in many Rittal enclosures. Detailed drawing and installation dimensions, see page 1304.

Description C-ULULPacks of Model No. SZMounting frame
1) 1 Single, with plastic flap (semi-transparent)1 2482.300
2 Double, with plastic flap (semi-transparent)1 2482.310
3 Single, with metal flap 1 2482.320
4 Double, with metal flap 1 2482.330Socket modules
5 Germany (VDE), spring-action terminals max. 2 x 2.5 mm
2 , connection at rear1 2482.400
3) 6 Germany (VDE), screw terminals max. 6 mm
2 , connection at rear, colour: yellow (RAL 1016), for installation in front of main switch1 2482.410
3) 7 USA NEMA 5-15, plug-in solder connection 4.8 x 0.8 mm 1 2482.420
4) 8 USA NEMA 5-15, plug-in solder connection 4.8 x 0.8 mm (N, PE) 6.3 x 0.8 mm (phase), fuse 3 A 1 2482.430
4) Interface inserts 2 x SUB-D9 (jack/pin)
9 1 2482.500
10 SUB-D9 (jack/jack) 1 2482.510
11 SUB-D9 (jack/pin), SUB-D25 (jack/pin) 1 2482.520
12 SUB-D25 (jack/pin) 1 2482.530
13 2 x USB A (jack/jack) 1 2482.540
2) 14 RJ 45 (jack/jack, Cat. 5e), SUB-D9 (jack/jack), SUB-D9 (pin/pin) 1 2482.550
15 2 x RJ 45 (jack/jack, Cat. 5e) 1 2482.560
2) 16 USB A (jack/jack), RJ 45 (jack/jack, Cat. 5e), SUB-D9 (jack/pin) 1 2482.570
2) 17 RJ 45 (jack/jack, Cat. 5e), SUB-D9 (jack/pin), SUB-D25 (jack/pin) 1 2482.580
18 Blanking plate (slimline), for individual population, usable area: 45 x 75 mm 1 2482.590
1) 2) Electrically conductive. Conductively linked to mounting frame.
3) Rated voltage: 250 V AC, rated current: 10 – 16 A
4) Rated voltage: 125 V AC, rated current: 15 A (SZ 2482.420)/3 A (SZ 2482.430)All SUB-D interfaces may be rotated while in operation. Other socket modules and interface inserts available on request. 1 2
Interface accessories 3 4 5 6 7 8 9 10

B

7

.10

11 12 13 14 15 16 17 18 1151Rittal Catalogue 32/System accessories
