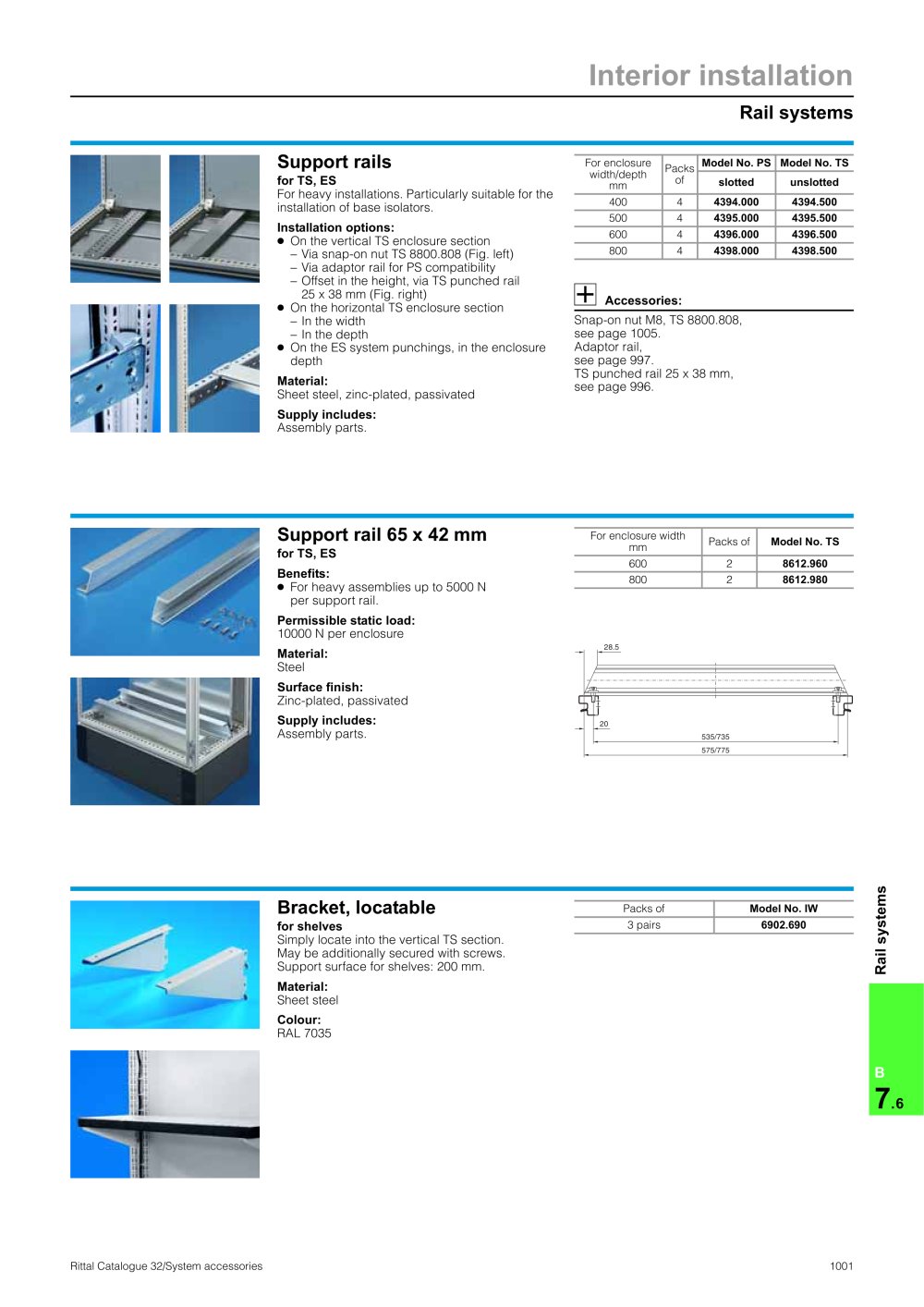

Text version of the page

Interior installation

Rail systems Support rails

For enclosure width/depth mmPacks of Model No. PSModel No. TSslottedunslotted for TS, ES For heavy installations. Particularly suitable for the installation of base isolators.
4004 4394.0004394.500 5004 4395.0004395.500 Installation options: â—� On the vertical TS enclosure section
6004 4396.0004396.500 − Via snap-on nut TS 8800.808 (Fig. left)
8004 4398.0004398.500 − Via adaptor rail for PS compatibility − Offset in the height, via TS punched rail 25x38 mm (Fig. right) � On the horizontal TS enclosure section Accessories: − In the width Snap-on nut M8, TS 8800.808, see page 1005. Adaptor rail, see page 997. TS punched rail 25 x 38 mm, see page 996. − In the depth � On the ES system punchings, in the enclosure depth Material: Sheet steel, zinc-plated, passivated Supply includes: Assembly parts.

Support rail 65 x 42 mm

For enclosure width mmPacks of Model No. TS for TS, ES Benefits:
6002 8612.960 â—� For heavy assemblies up to 5000 N per support rail.
8002 8612.980 Permissible static load: 10000 N per enclosure Material:
28.520535/735575/775 Steel Surface finish: Zinc-plated, passivated Supply includes: Assembly parts.

Bracket, locatable

Packs of Model No. IW for shelves
3 pairs 6902.690 Simply locate into the vertical TS section. May be additionally secured with screws. Support surface for shelves: 200 mm.
Rail systems Material: Sheet steel Colour: RAL 7035

B

7

.6

1001Rittal Catalogue 32/System accessories
